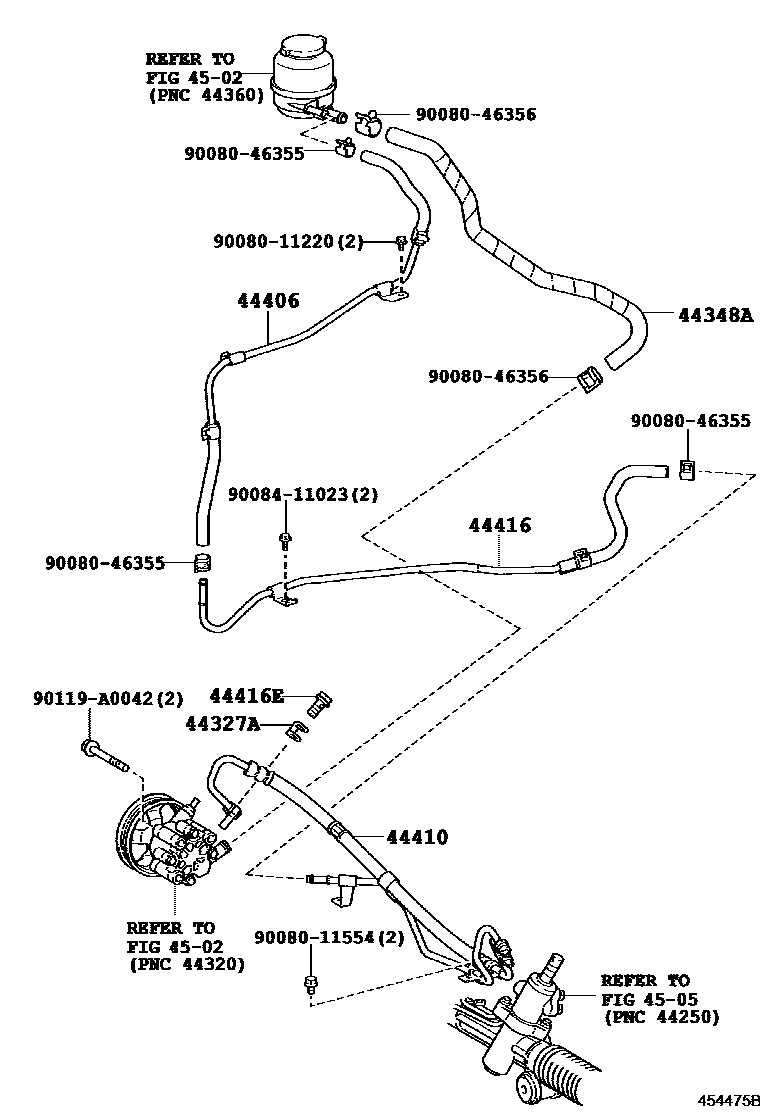

POWER STEERING TUBE

0001 1 0002 1 0003 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iACV40,GSV40..NAP200602-200903

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-06260iGSV40..NAP200602-200903

main44348-06270iACV40..NAP200602-200903

main44348-06370iASV40..NAP200903-201109

44406TUBE SUB-ASSY, RETURN

main44406-06171iACV40,GSV40..NAP200602-200903

44410TUBE ASSY, PRESSURE FEED

main44410-06141iACV40..NAP200602-200703

main44410-06142iACV40..NAP200704-200903

main44410-06241iGSV40..NAP200602-200703

main44410-06242iGSV40..NAP200704-200901

main44410-06243iGSV40..NAP200903-201109

main44410-06350iASV40..NAP200903-201001

main44410-06351iASV40..NAP201002-201109

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-06161iGSV40..NAP200903-201109

main44416-06171iACV40..NAP200602-200903

main44416-06290iASV40..NAP200903-201109

44416EBOLT, UNION(FOR RETURN TUBE)

main96341-41603iACV40,GSV40..NAP200602-200903

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9008011220

main90080-11220

9008011554

main90080-11554

9008046355

main90080-46355

9008046356

main90080-46356

9008411023

main90084-11023

90119A0042

main90119-A0042

14 parts on this diagram · 3 diagrams in section
