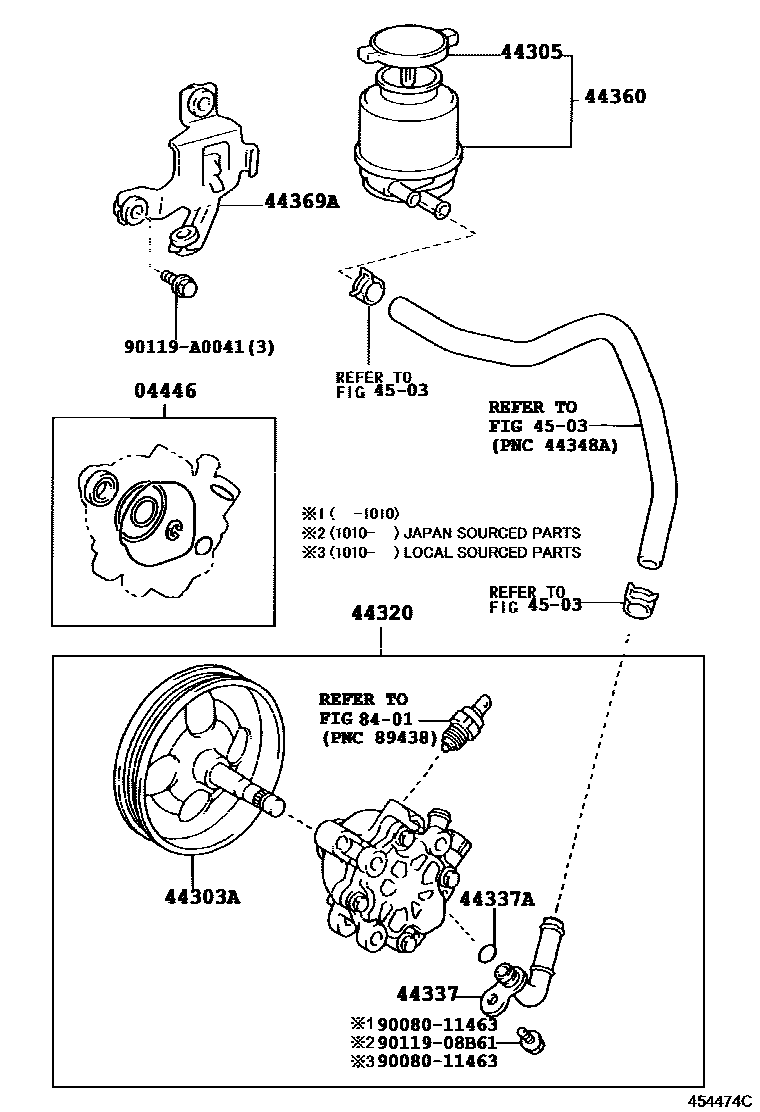

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-02070iACV40,GSV40..NAP200602-200702

main04446-02140iACV40,GSV40..NAP200702-200903

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-06010iGSV40..NAP200602-200903

main44303-06060iACV40..NAP200602-200903

main44303-06080iASV40..NAP200903-201109

(L)

main44303-33020iASV40..NAP201010-201109

(J)

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-04010iASV40,GSV40..NAP200908-201109

main44305-06030iACV40,GSV40..NAP200602-200709

main44305-06050iACV40,GSV40..NAP200710-200903

44320PUMP ASSY, VANE

main44310-06071iACV40..NAP200602-200903

main44310-06190iASV40..NAP200903-201010

main44310-07040iGSV40..NAP200903-201109

main44310-33190iASV40..NAP201010-201109

(J)

44337UNION, POWER STEERING SUCTION PORT

main44337-07020iGSV40..NAP200602-200903

main44337-32110iACV40..NAP200602-200903

main44337-42010iASV40..NAP200903-201109

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11020iACV40,GSV40..NAP200602-200903

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-06030iACV40,GSV40..NAP200602-200903

44369ABRACKET, OIL RESERVOIR, NO.1

main44390-07020iACV40,GSV40..NAP200602-200901

main44390-07021iASV40,GSV40..NAP200903-201109

4503

8401

9008011463

main90080-11463

9011908B61

main90119-08B61

90119A0041

main90119-A0041

13 parts on this diagram · 2 diagrams in section
