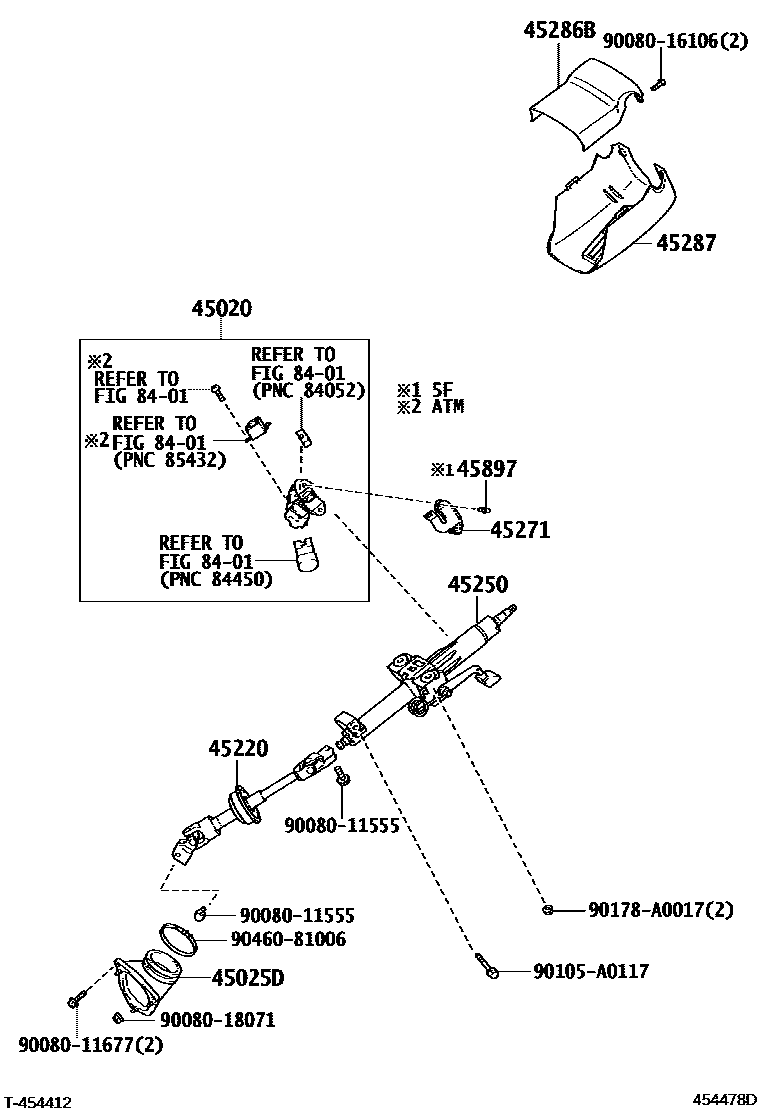

STEERING COLUMN & SHAFT

0001 1 0002 1W(SMART KEY SYSTEM)

45020BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH

main45020-04010iACV40,GSV40..NAP..ATM200602-200903

main45020-04020iACV40..NAP..5F200602-200903

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-06060iACV40,GSV40..NAP200602-200806

main45025-33110iACV40,GSV40..NAP200806-200903

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-06110iACV40,GSV40..NAP200602-200609

main45220-06111iACV40,GSV40..NAP200610-200710

main45220-06112iACV40,GSV40..NAP200711-200808

main45220-06113iASV40,GSV40..NAP200903-200911

main45220-06114iASV40,GSV40..NAP200912-201109

45250COLUMN ASSY, STEERING

main45250-06380iASV40,GSV40..NAP200903-201109

main45250-06480iGSV40..NAP..XLE200602-200903

STARTING SYSTEM-PUSH BUTTON

45271CLAMP, STEERING COLUMN, UPPER

main45271-06020iACV40,GSV40..NAP200602-200903

45286BCOVER, STEERING COLUMN, UPR

main45286-06140-B0iACV40,GSV40..NAP..SE200602-200903

DK.GRAY,TRIM1#

main45286-06140-B1iACV40,GSV40..NAP..(LE,XLE)200602-200903

MD.GRAY,TRIM1#

main45286-06140-E0iACV40,GSV40..NAP..(LE,XLE)200602-200903

ASH BROWN,TRIM4#

main45286-06141-B0iASV40,GSV40..NAP..SE201004-201109

DK.GRAY,TRIM1#

main45286-06141-B1iASV40,GSV40..NAP..(LE,XLE)201004-201109

MD.GRAY,TRIM1#

main45286-06141-E0iASV40,GSV40..NAP..(LE,XLE)201004-201109

ASH BROWN,TRIM4#

45287COVER, STEERING COLUMN, LWR

main45287-06140-B0iACV40,GSV40..NAP..SE200602-200903

DK.GRAY,TRIM1#

main45287-06140-B1iASV40,GSV40..NAP..(LE,XLE)200903-201109

MD.GRAY,TRIM1#

main45287-06140-E0iACV40,GSV40..NAP..(LE,XLE)200602-200903

ASH BROWN,TRIM4#

main45287-06150-B1iASV40,GSV40..NAP..XLE200903-201109

STARTING SYSTEM-PUSH BUTTON,MD.GRAY,TRIM1#

main45287-06150-B2iASV40,GSV40..NAP..6FC..SE200903-201109

STARTING SYSTEM-PUSH BUTTON,DK.GRAY,TRIM1#

main45287-06150-E0iASV40,GSV40..NAP..XLE200903-201109

STARTING SYSTEM-PUSH BUTTON,ASH BROWN,TRIM4#

45897BOLT, STEERING LOCK SET

main45897-08010×2iACV40..NAP..5F; GSV40..NAP..XLE200602-200903

STARTING SYSTEM-PUSH BUTTON

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008011555

main90080-11555

9008011677

main90080-11677

9008016106

main90080-16106

9008018071

main90080-18071

90105A0117

main90105-A0117

90178A0017

main90178-A0017

9046081006

main90460-81006

16 parts on this diagram · 2 diagrams in section
