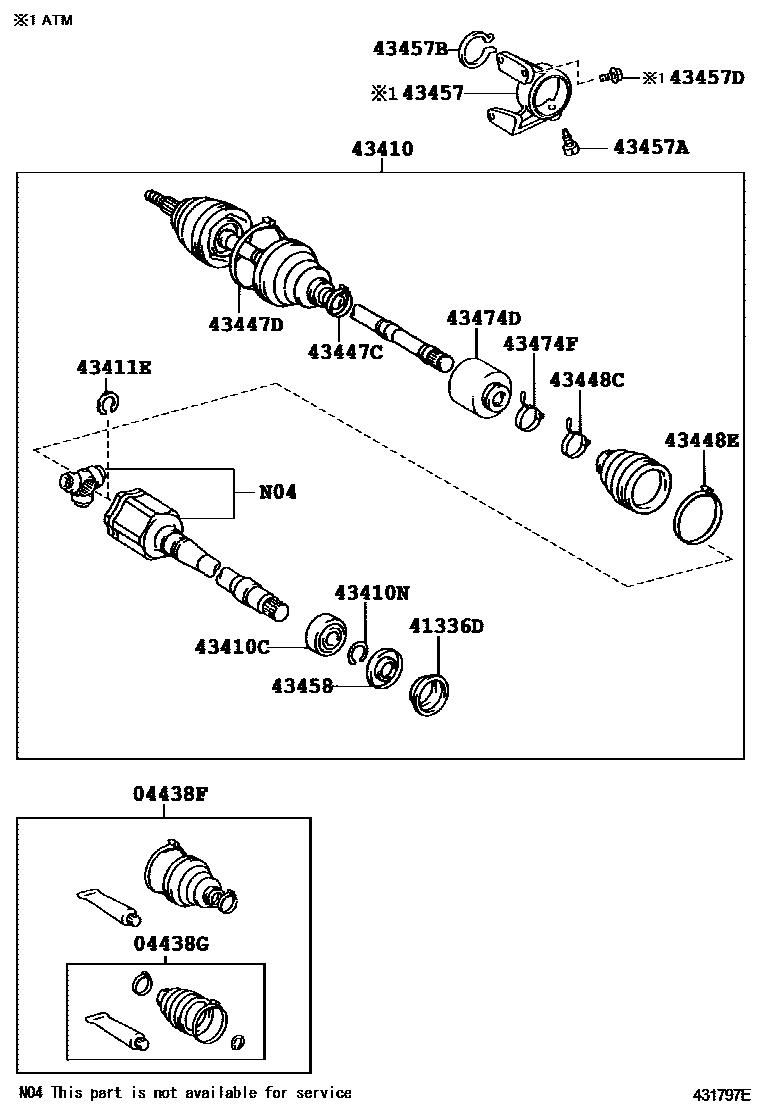

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1LH 0004 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-06280iACV40..NAP..5FC200602-200903

main04427-06290iACV40..NAP..5F200602-200903

main04427-06300iGSV40..NAP200602-200811

main04427-0E030iGSV40..NAP200811-200903

main04428-0E060iGSV40..NAP200903-201109

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-06110iGSV40..NAP200602-200808

main04438-07010iACV40..NAP200602-200903

main04438-08130iGSV40..NAP200808-200903

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-06020iACV40,GSV40..NAP200602-200903

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-06560iGSV40..NAP200602-200903

sub43410-06780

main43410-06570iACV40..NAP..5FC200602-200903

main43410-06580iACV40..NAP..5F200602-200903

sub43410-06680

main43410-06690iASV40..NAP..6FC200903-201109

main43410-06700iASV40..NAP..6F200904-201109

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90080-36133iACV40,GSV40..NAP200602-200903

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90080-52013iACV40,GSV40..NAP200602-200903

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-08040iGSV40..NAP200602-200903

main90080-52118iASV40..NAP200903-201109

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-04030iACV40,GSV40..NAP..(5F,6FC)200602-200903

main42345-06090iACV40..NAP..5FC200602-200903

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-06040iACV40..NAP..5FC200602-200903

main42345-06080iASV40..NAP200903-201109

main42345-06250iGSV40..NAP200903-201109

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-07020iACV40..NAP200602-200903

main42345-08070iGSV40..NAP200602-200903

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-06240iGSV40..NAP200602-200903

main42345-07010iASV40..NAP200903-201109

43457BRACKET, DRIVE SHAFT BEARING

main43457-06020iACV40..NAP..5FC200602-200903

main43457-07010iGSV40..NAP200903-201109

main43457-0T010iASV40..NAP..6FC200903-201109

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461iACV40,GSV40..NAP200602-200903

*10-1.25PX19.8-8.3

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-78002iACV40,GSV40..NAP200602-200903

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90080-10087×3iACV40,GSV40..NAP..ATM200602-200903

43458COVER, FRONT DRIVE SHAFT DUST

main43458-06020iACV40,GSV40..NAP200602-200903

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-0W030iACV40,GSV40..NAP200602-200903

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-06100iACV40,GSV40..NAP200602-200903

18 parts on this diagram · 4 diagrams in section
