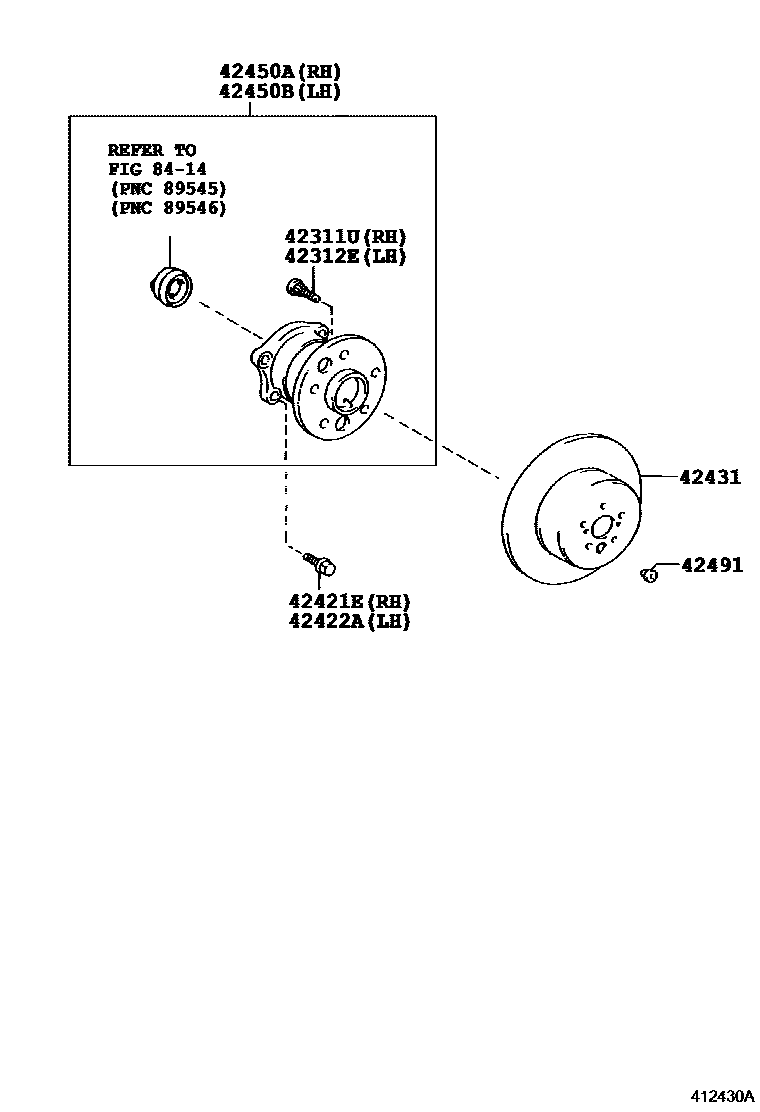

REAR AXLE SHAFT & HUB

0001 1 0002 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iASV40,GSV40..NAP200903-201109

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iACV40,GSV40..NAP200602-200903

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-A0021×4iACV40,GSV40..NAP200602-200903

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-A0021×4iASV40,GSV40..NAP200903-201109

42431DISC, REAR

main42431-06110×2iASV40,GSV40..NAP200903-201109

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-06021iACV40,GSV40..NAP200602-200903

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42460-06021iASV40,GSV40..NAP200903-201109

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020×2iACV40,GSV40..NAP200802-200903

(J)

main47493-0E010×2iACV40,GSV40..NAP200602-200802

8414ABS & VSC

→ Go to FIG 84-14

9 parts on this diagram · 2 diagrams in section
