30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90080-10140i200602-200903

*10-1.25PX17.5-17.5

main90080-10207i200602-200903

*10-1.25PX65-30

main90080-10299i200602-200903

*10-1.25PX50-30

main90080-10338i200602-200903

*10-1.25PX41-30,NO.3

main90080-11310×6i200602-200903

*12-1.25PX55-30; *12-1.25PX55-30,NO.1

main90080-11604i200903-201109

*12-1.25PX50-30,NO.2

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90080-10083×2i200602-200903

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-20230i200602-200903

main33403-35230i200602-200903

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main96711-24018i200602-200903

main96711-24030i200903-201109

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-06120i200602-200903

3507BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

→ Go to FIG 35-07

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-07010i200903-201109

(L)

main35102-33050i200602-200903

TOYOTA:REFER 35-01

main35102-33060i200602-200903

(J)

main35102-33070i200801-200903

AISIN AW:REFER 35-01

main35102-33090i200903-201109

AISIN AW:REFER 35-01

main35102-73010i200903-201109

TOYOTA:REFER 35-01

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08071×11i200602-200903

*8-1.25PX30-25

main90105-08431×2i200903-201109

*8-1.25PX28-22,(J),NO.1; *8-1.25PX28-22,NO.1

main90105-A0109×2i200709-200903

*8-1.25PX28-22,(L),NO.1

main90105-A0213×12i200903-201109

*8-1.25PX28-22,(L),NO.2

main91551-00828×12i200903-201109

*8-1.25PX28-22,(J),NO.2; *8-1.25PX28-22,NO.2

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-06050i200602-200802

main35103-06051i200803-200903

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03149i200602-200609

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03157i200602-200609

main90930-03187i200602-200903

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-33080i200801-200903

AISIN AW:REFER 35-01

main35104-33090i200602-200609

main35104-33091i200609-200903

TOYOTA:REFER 35-01

main35141-07010i200709-200803

(L)

main35141-07011i200803-200903

(L)

main35141-33070i200602-200805

(J)

main35141-33071i200805-200903

(J)

main35141-33140i200903-201109

AISIN AW:REFER 35-01

main35141-73010i200903-201109

TOYOTA:REFER 35-01

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×3i200903-201109

(J)

main90341-A0001×3i200903-201109

(L)

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90080-30105×3i200903-201109

(L)

main90301-06196×3i200602-200903

(J)

35104VHOSE (FOR BREATHER PLUG)

main35121-21020i200610-200903

main35121-33040i200602-200804

main35121-33050i200903-201109

AISIN AW:REFER 35-01

main35121-73010i200903-201109

TOYOTA:REFER 35-01

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017×5i200903-201109

(J)

main90250-10034×4i200801-200903

AISIN AW:REFER 35-01

main90250-10036×4i200602-200609

TOYOTA:REFER 35-01

main90250-A0021×5i200709-200808

(L)

35104XRING, O (FOR BREATHER PLUG)

main90301-06005i200602-200609

main90301-06021i201105-201109

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-12034i200903-201109

(J)

main90341-18016i200602-200609

main90341-A0004i200709-200808

(L)

35106BGASKET, DRAIN PLUG (ATM)

main90430-12008i200903-201109

(J)

main90430-18008i200602-200609

main90430-A0002i200709-200903

(L)

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-07010i200709-200903

(L)

main35106-33040i200801-200903

AISIN AW:REFER 35-01

main35106-33050i200602-200609

TOYOTA:REFER 35-01

main35106-33060i200602-200707

main35106-33061i200707-200903

(J)

main35106-33070i200903-201109

AISIN AW:REFER 35-01

main35106-73010i200903-201109

TOYOTA:REFER 35-01

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90080-11496i200709-200903

(L),NO.2

main90119-06173×18i200610-200903

main90119-A0298×17i200709-200903

(L),NO.1

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-06320×2i200609-200903

*6-1.00PX50-25

main90105-08066i200801-200903

*8-1.25PX72-30

main90105-08233×8i200602-200903

*8-1.25PX42-30

main90105-08353×8i200602-200903

*8-1.25PX50-30

main90105-08432×3i200903-201109

*8-1.25PX45-22,(J),NO.1; *8-1.25PX45-22,NO.1

main90105-A0110×3i200903-201109

*8-1.25PX45-22,(L),NO.1

main90105-A0111×17i200709-200903

*8-1.25PX45-22,(L),NO.2

main91551-10845×17i200903-201109

*8-1.25PX45-22,(J),NO.2; *8-1.25PX45-22,NO.2

35148GASKET, GOVERNOR APPLY, NO.1

main35145-07010×2i200709-200903

(L)

main35145-21010×4i200602-200903

main35145-33010×2i200903-201109

(J)

35149BGASKET, TRANSAXLE CASE 2ND BRAKE

main35149-21010i200602-200903

35151ACOVER, TRANSAXLE CASE, UPPER

main35151-33120i200602-200903

35159GASKET, BRAKE DRUM

main35159-21010i200602-200903

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-08010i200908-201109

(L)

main35168-21011i200801-200903

AISIN AW:REFER 35-01

main35168-21020i200602-200903

TOYOTA:REFER 35-01

main35168-33080i200602-200903

main35168-73010i200903-201109

35179GASKET, OVERDRIVE BRAKE

main35179-32010×2i200602-200903

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173i200602-200903

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-08010×2i200709-200903

(L)

main35394-30011×2i200903-201109

(J)

main35394-48010×2i200801-200903

AISIN AW:REFER 35-01

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-41010i200803-200903

9008011196

main90080-11196

9008011339

main90080-11339

9036425017

main90364-25017

9046400888

main90464-00888

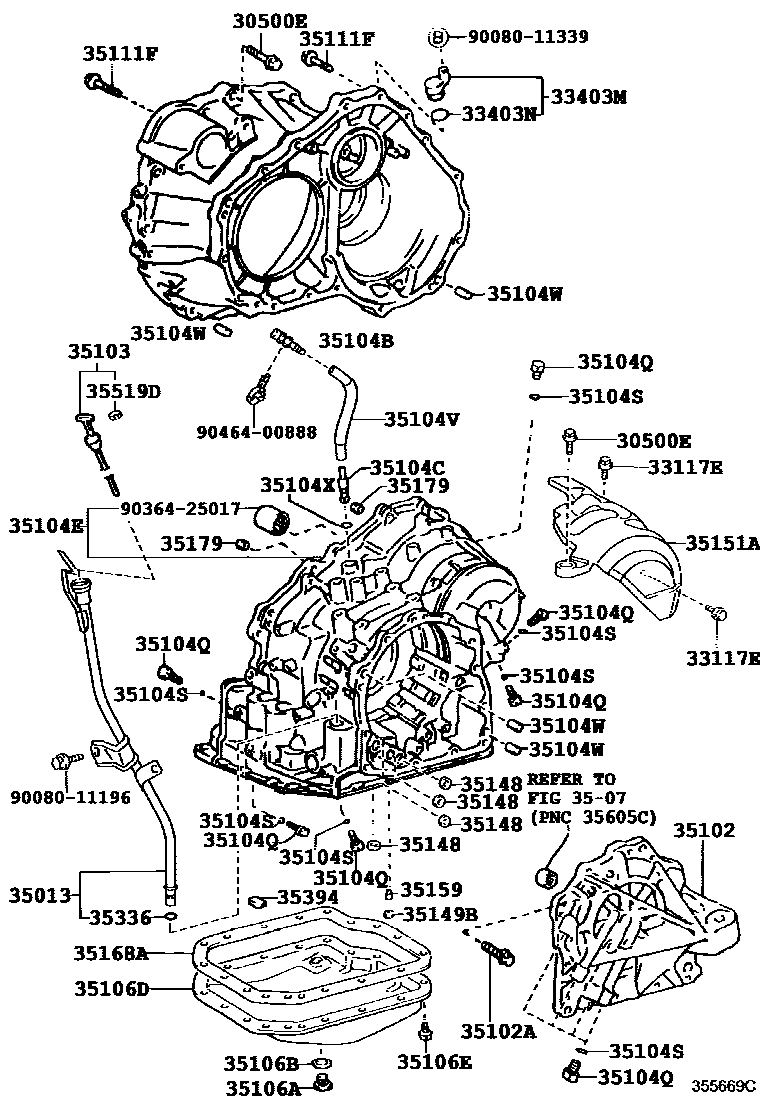

TRANSMISSION CASE & OIL PAN (ATM)
