TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

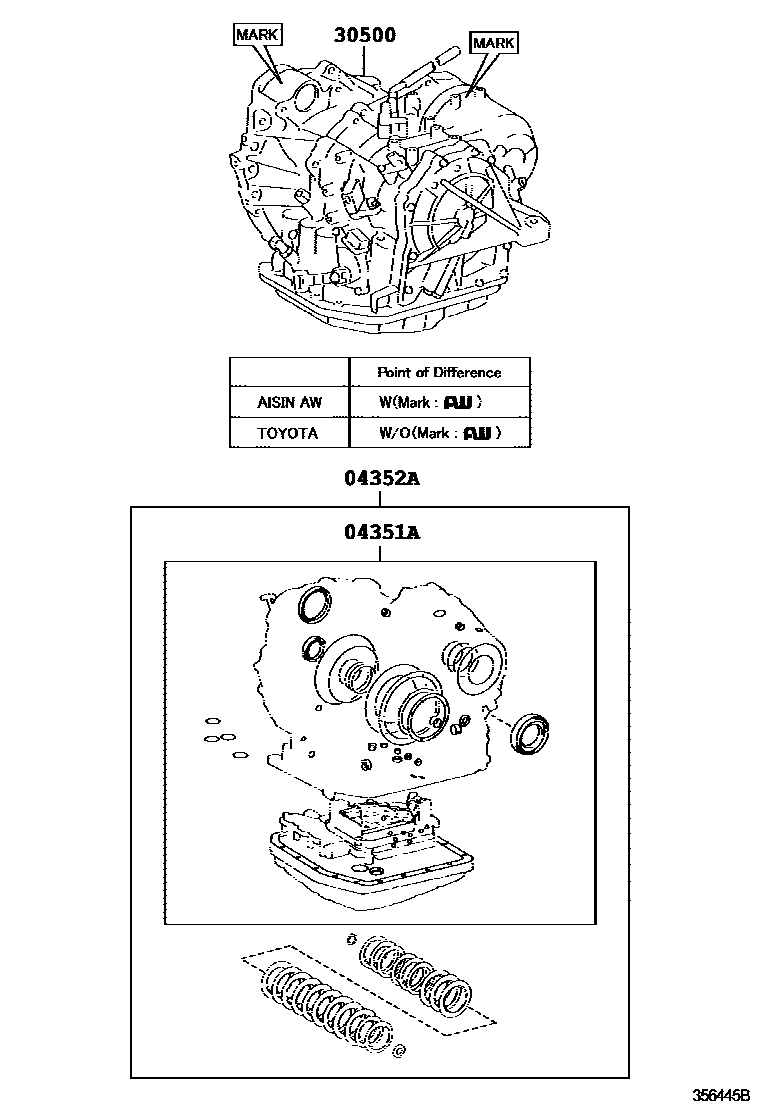

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-33400i200903-201106

main04351-33401i201106-201109

main04351-33450i200602-200703

main04351-33490i200801-200903

AISIN AW:REF.ILLUST

main04351-33530i200903-201106

AISIN AW:REF.ILLUST

main04351-33531i201106-201109

AISIN AW:REF.ILLUST

main04351-48180i200903-201106

TOYOTA:REFER TO ILL.

main04351-48182i201106-201109

TOYOTA:REFER TO ILL.

04352AKIT, TRANSAXLE OVERHAUL(ATM)

main04352-33390i200903-201106

main04352-33391i201106-201109

main04352-33450i200602-200702

main04352-33500i200801-200903

AISIN AW:REF.ILLUST

main04352-33540i200801-200903

TOYOTA:REFER TO ILL.

main04352-33560i200903-201106

AISIN AW:REF.ILLUST

main04352-33561i201106-201109

AISIN AW:REF.ILLUST

main04352-48250i200903-201106

TOYOTA:REFER TO ILL.

main04352-48252i201106-201109

TOYOTA:REFER TO ILL.

30500TRANSAXLE ASSY, AUTOMATIC

main30500-07020i200709-200903

U660E,(L)

main30500-33460i200602-200609

U250E

main30500-33470i200602-200903

U660E,(J)

main30500-33510i200801-200903

U250E,AISIN AW:REF.ILLUST

main30500-33520i200609-200903

U250E,TOYOTA:REFER TO ILL.

main30500-33621i200903-201109

U760E,TOYOTA:REFER TO ILL.

main30500-33631i200903-201109

U760E,AISIN AW:REF.ILLUST

3 parts on this diagram · 2 diagrams in section
