WATER PUMP

0001 1 0002 1 0003 1 0004 1

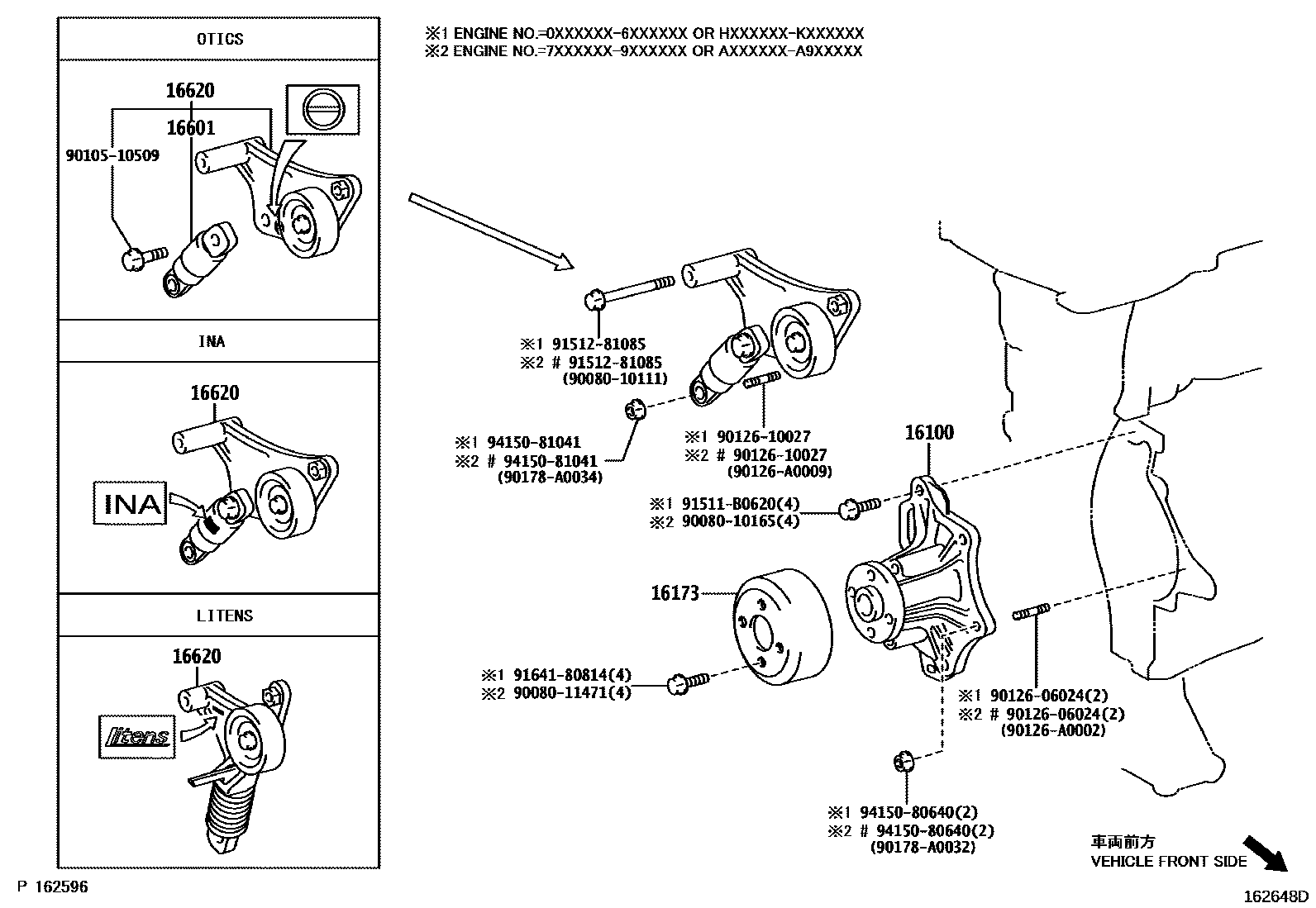

16100PUMP ASSY, ENGINE WATER

main16100-09440i2GRFE..GSV40..NAP200602-200901

main16100-09441i2GRFE..GSV40..NAP200903-201109

main16100-09515i2ARFE..ASV40..NAP200903-201109

*212

main16100-0H010i2AZFE..ACV40..NAP200602-200903

*108

main16100-28040i2AZFE..ACV40..NAP200602-200701

*195

main16100-28041i2AZFE..ACV40..NAP200701-200903

*195

main16100-39515i2ARFE..ASV40..NAP200903-201109

*107

16173PULLEY, WATER PUMP

main16173-28020i2AZFE..ACV40..NAP200602-200903

*195,*108

main16173-31010i2GRFE..GSV40..NAP200602-200903

16601TENSIONER SUB-ASSY, V-RIBBED BELT

main16601-0V010i2ARFE..ASV40..NAP200903-201109

*107,*212

main16601-28020i2AZFE..ACV40..NAP200602-200610

*195,OTICS,*108,OTICS

main16601-28021i2AZFE..ACV40..NAP200610-200805

*108,OTICS

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0H020i2AZFE..ACV40..NAP200804-200903

*195

main16620-0V010i2ARFE..ASV40..NAP200903-201109

*212

main16620-28040i2AZFE..ACV40..NAP200602-200610

*195,(J),*108

main16620-28041i2AZFE..ACV40..NAP200610-200805

(J),*108

main16620-31040i2GRFE..GSV40..NAP200903-201109

main16620-36030i2ARFE..ASV40..NAP200903-201109

*107

9008010111

main90080-10111

9008010165

main90080-10165

9008011471

main90080-11471

9010510509

main90105-10509

9012606024

main90126-06024

9012610027

main90126-10027

90126A0002

main90126-A0002

90126A0009

main90126-A0009

90178A0032

main90178-A0032

90178A0034

main90178-A0034

91511B0620

main91511-B0620

9151281085

main91512-81085

9164180814

main91641-80814

9415080640

main94150-80640

9415081041

main94150-81041

19 parts on this diagram · 4 diagrams in section
