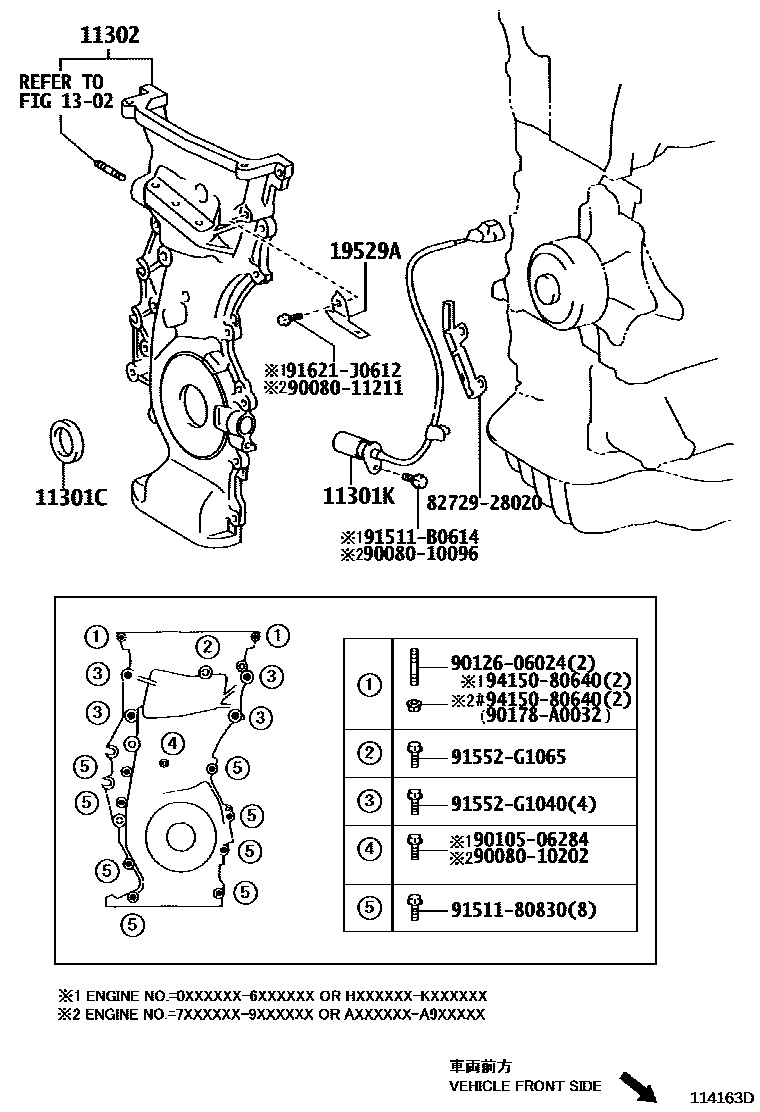

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-38089i2AZFE..ACV40..NAP200602-200903

*195

main90311-38098i2AZFE..ACV40..NAP200602-200903

*108

main90311-42043i2ARFE..ASV40..NAP200903-201109

*107

sub90311-42051

main90311-A0005i2GRFE..GSV40..NAP200602-201109

main90311-A0015i2ARFE..ASV40..NAP200903-201109

*212

11301KSENSOR, CRANK POSITION

main90080-19024i2AZFE..ACV40..NAP200602-200903

*108

main90919-05047i2AZFE..ACV40..NAP200602-200903

*195

main90919-05070i2ARFE..ASV40..NAP200903-201109

*107,(J),*212

main90919-A5004i2ARFE..ASV40..NAP200903-201109

(L),*212

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-0H011i2AZFE..ACV40..NAP200602-200903

(L),*108

main11310-0P040i2GRFE..GSV40..NAP200602-201109

sub11310-0P041

main11310-0V010i2ARFE..ASV40..NAP200903-201109

*212

main11310-28071i2AZFE..ACV40..NAP200602-200903

*195,(J),*108

main11310-36030i2ARFE..ASV40..NAP200903-201109

*107

sub11310-0V010

1302

19529ACLAMP

main19529-28010i2AZFE..ACV40..NAP200602-200903

*195,*108

8272928020

main82729-28020

9008010096

main90080-10096

9008010202

main90080-10202

9008011211

main90080-11211

9010506284

main90105-06284

9012606024

main90126-06024

90178A0032

main90178-A0032

9151180830

main91511-80830

91511B0614

main91511-B0614

91552G1040

main91552-G1040

91552G1065

main91552-G1065

91621J0612

main91621-J0612

9415080640

main94150-80640

18 parts on this diagram · 3 diagrams in section
