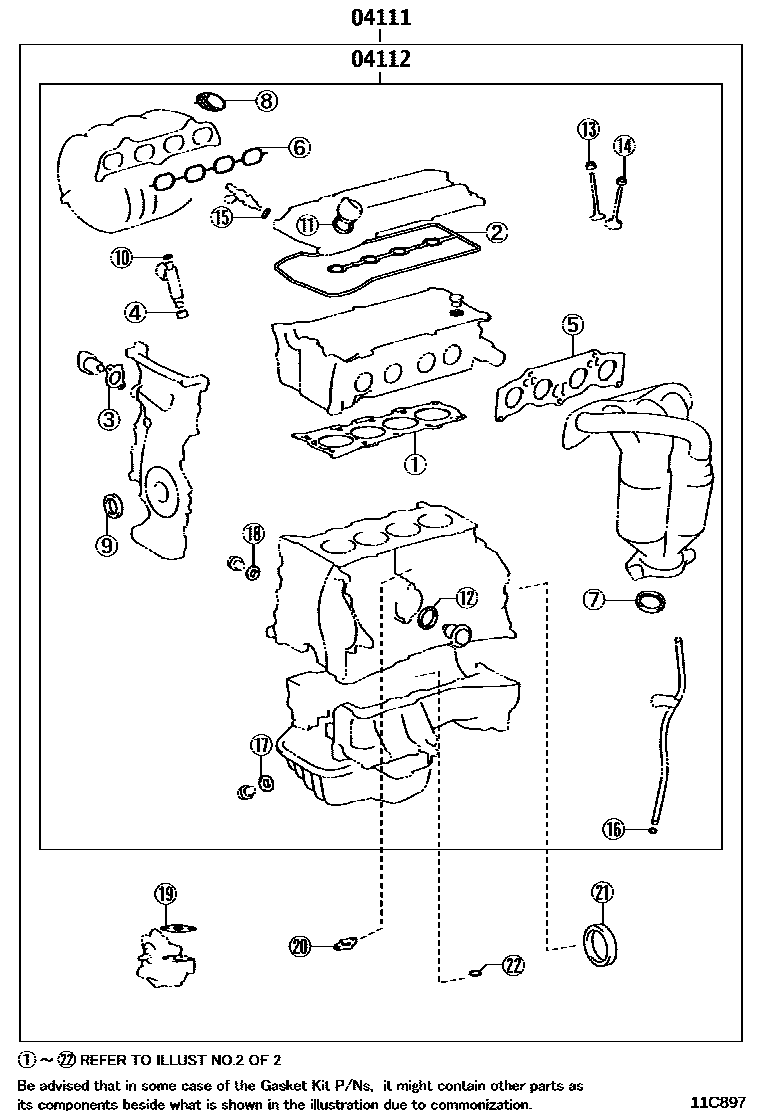

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1W(OIL COOLER) 0005 1W(OIL COOLER) 0007 1CALIFORNIA SPEC 0008 1CALIFORNIA SPEC 0009 1CALIFORNIA SPEC 0010 1CALIFORNIA SPEC 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-0H250i2AZFE..ACV40..NAP200602-200710

main04111-0H370i2AZFE..ACV40..NAP200710-200903

main04111-0P040i2GRFE..GSV40..NAP200602-200804

main04111-0P041i2GRFE..GSV40..NAP200804-200903

main04111-0P042i2GRFE..GSV40..NAP200903-200911

main04111-0P063i2GRFE..GSV40..NAP200911-201109

main04111-0V010i2ARFE..ASV40..NAP..6FC200903-201109

*212

main04111-36080i2ARFE..ASV40..NAP..6FC200903-201109

*107

main04111-0H260i2AZFE..ACV40..NAP..5FC200602-200710

CALIFORNIA SPEC

main04111-0H261i2AZFE..ACV40..NAP..5FC200710-200903

CALIFORNIA SPEC

04112GASKET KIT, ENGINE VALVE GRIND

main04112-0H230i2AZFE..ACV40..NAP200602-200710

main04112-0H231i2AZFE..ACV40..NAP200710-200903

main04112-0P040i2GRFE..GSV40..NAP200602-200804

main04112-0P041i2GRFE..GSV40..NAP200804-200903

main04112-0P042i2GRFE..GSV40..NAP200903-200911

main04112-0P053i2GRFE..GSV40..NAP200911-201109

main04112-0V010i2ARFE..ASV40..NAP..6FC200903-201109

*212

main04112-36070i2ARFE..ASV40..NAP..6FC200903-201109

*107

main04112-0H240i2AZFE..ACV40..NAP..5FC200602-200710

CALIFORNIA SPEC

main04112-0H241i2AZFE..ACV40..NAP..5FC200710-200903

CALIFORNIA SPEC

2 parts on this diagram · 16 diagrams in section
