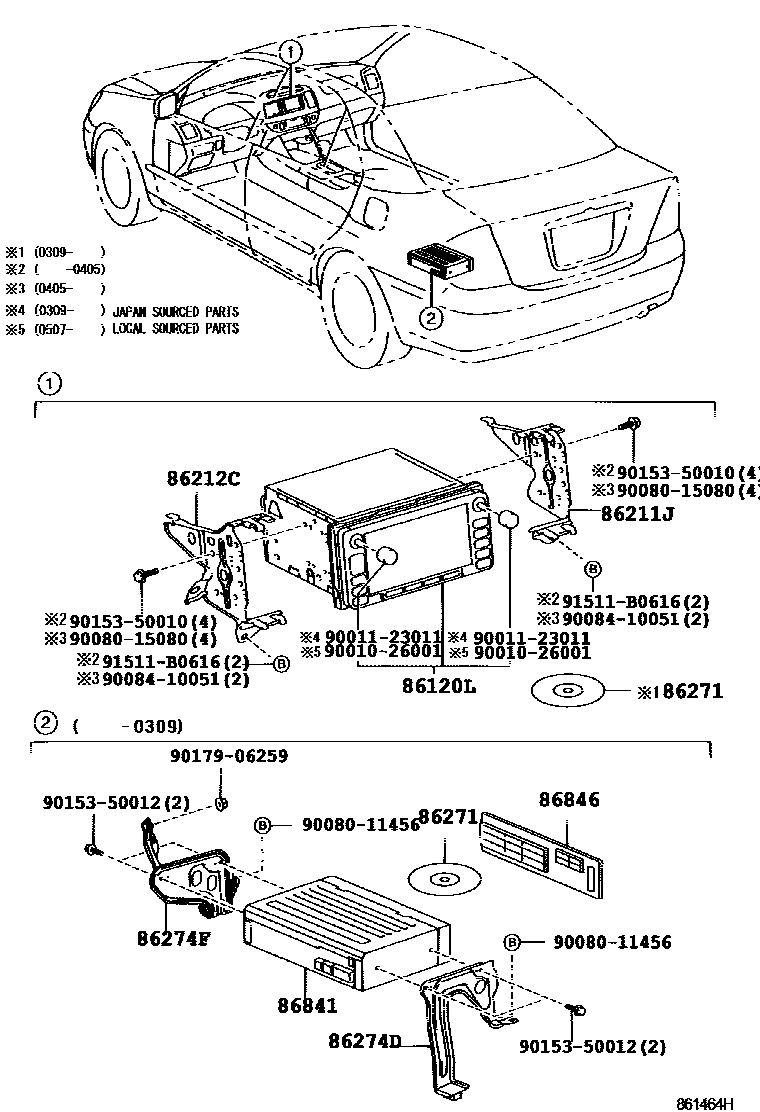

NAVIGATION & FRONT MONITOR DISPLAY

86120LRECEIVER ASSY, NAVIGATION

main86120-06160iMCV3#..NAP..(SE,XLE)200507

MATSUSHITA,(L)

main86120-33400iACV30,MCV30..NAP..(SE,XLE)200107-200211

FUJITSU TEN

main86120-33401iMCV30..NAP..(SE,XLE)200211-200301

FUJITSU TEN

main86120-33600iMCV3#..NAP..(SE,XLE)200406-200409

DENSO,ID=E7003

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-33150iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..(SE,XLE)..4FC; MCV31..NAP;MCV30..NAP..XLE..5FC200107-200406

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-33150iMCV3#..NAP..(SE,XLE)200406

86271DISC, DISC PLAYER

main86271-33030iACV30,MCV30..NAP..(SE,XLE)200107-200209

main86271-33031iMCV30..NAP..(SE,XLE)200209-200301

main86271-33040iMCV3#..NAP..(SE,XLE)200309-200401

main86271-33041iMCV3#..NAP..(SE,XLE)200401-200406

main86271-33043iMCV3#..NAP..(SE,XLE)200406-200409

main86271-33044iMCV3#..NAP..(SE,XLE)200410-200507

main86271-33045iMCV3#..NAP..(SE,XLE)200507

86274DBRACKET, DISC PLAYER

main86274-33190iACV30,MCV30..NAP..(SE,XLE)200107-200209

86274FBRACKET, DISC PLAYER, NO.2

main86274-33200iACV30,MCV30..NAP..(SE,XLE)200107-200209

86841COMPUTER, NAVIGATION

main86841-33060iACV30,MCV30..NAP..(SE,XLE)200107-200209

86846PLATE, NAVIGATION COMPUTER

main86846-33020iACV30,MCV30..NAP..(SE,XLE)200107-200209

9001026001

main90010-26001

9001123011

main90011-23011

9008011456

main90080-11456

9008015080

main90080-15080

9008410051

main90084-10051

9015350010

main90153-50010

9015350012

main90153-50012

9017906259

main90179-06259

91511B0616

main91511-B0616

17 parts on this diagram · 1 diagram in section
