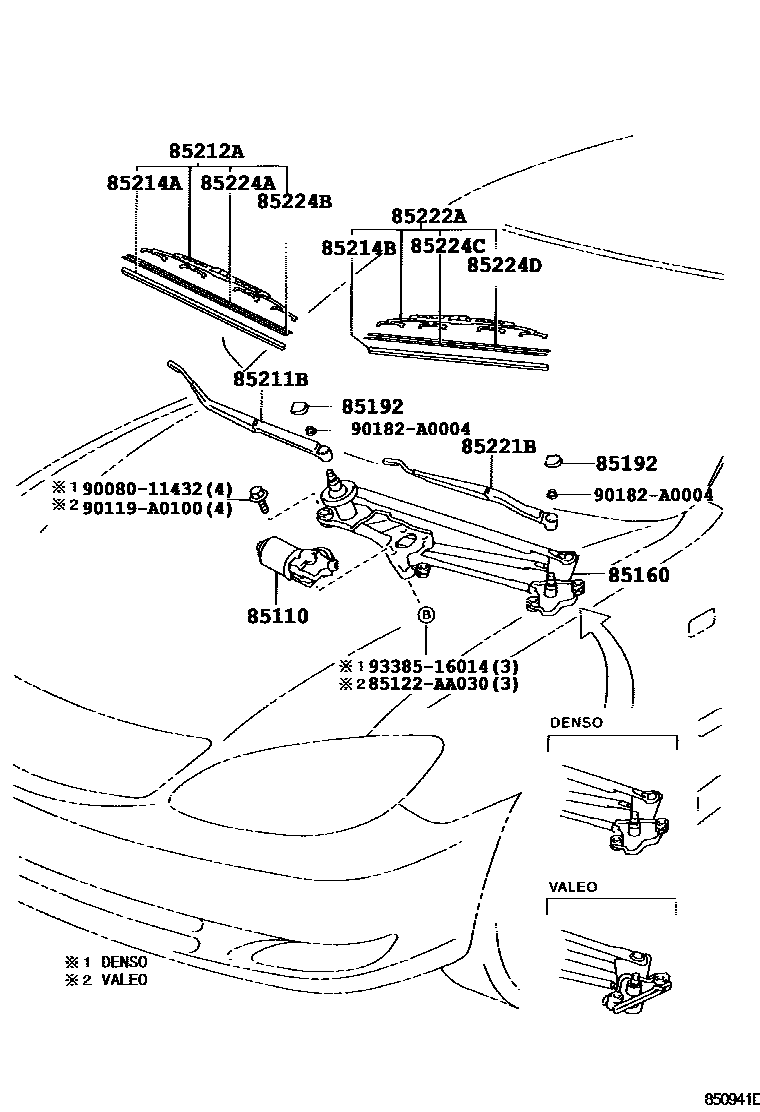

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-AA030iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

DENSO

main85110-AA040iACV30,MCV3#..NAP200406

VALEO

85160LINK ASSY, WINDSHIELD WIPER

main85150-AA030iACV30,MCV3#..NAP200406

DENSO

main85150-AA040iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

VALEO

85192COVER, WINDSHIELD WIPER ARM

main85292-AA020×2iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

DENSO

main85292-AA030×2iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

VALEO

85211BARM, FRONT WIPER, RH

main85211-AA041iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

DENSO

main85211-AA051iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

VALEO

85212ABLADE, FR WIPER, RH

main85212-0C011iACV30,MCV3#..NAP200406

DENSO

main85212-AA040iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

DENSO

main85212-AA050iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

VALEO

85214ARUBBER, WIPER, RH

main85214-0C011iACV30,MCV3#..NAP200312-200406

DENSO

main85214-AA070iACV30,MCV3#..NAP200107-200312

DENSO

main85214-AA080iACV30,MCV3#..NAP200107-200406

VALEO

85214BRUBBER, WIPER, LH

main85214-02150iACV30,MCV3#..NAP200405-200406

DENSO

main85214-07040iACV30,MCV3#..NAP200107-200406

VALEO

main85214-0C011iACV30,MCV3#..NAP200312-200405

DENSO

main85214-AA090iACV30,MCV3#..NAP200107-200312

DENSO

85221BARM, FRONT WIPER, LH

main85221-AA041iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

DENSO

main85221-AA051iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

VALEO

85222ABLADE, FR WIPER, LH

main85222-AA040iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

DENSO

main85222-AA050iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

VALEO

main85222-AA070iACV30,MCV3#..NAP200406

DENSO

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-AA010iACV30,MCV3#..NAP200406-200602

VALEO

main85224-AA030iACV30,MCV3#..NAP200107-200312

DENSO

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-AA010iACV30,MCV3#..NAP200107-200406

VALEO

main85224-AA030iACV30,MCV3#..NAP200406-200602

DENSO

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-08020iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

DENSO

main85224-AA050iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

VALEO

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-08020iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

DENSO

main85224-AA050iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

VALEO

85122AA030PLATE, WINDSHIELD WIPER MOTOR CAM

main85122-AA030

9008011432

main90080-11432

90119A0100

main90119-A0100

90182A0004

main90182-A0004

9338516014

main93385-16014

18 parts on this diagram · 1 diagram in section
