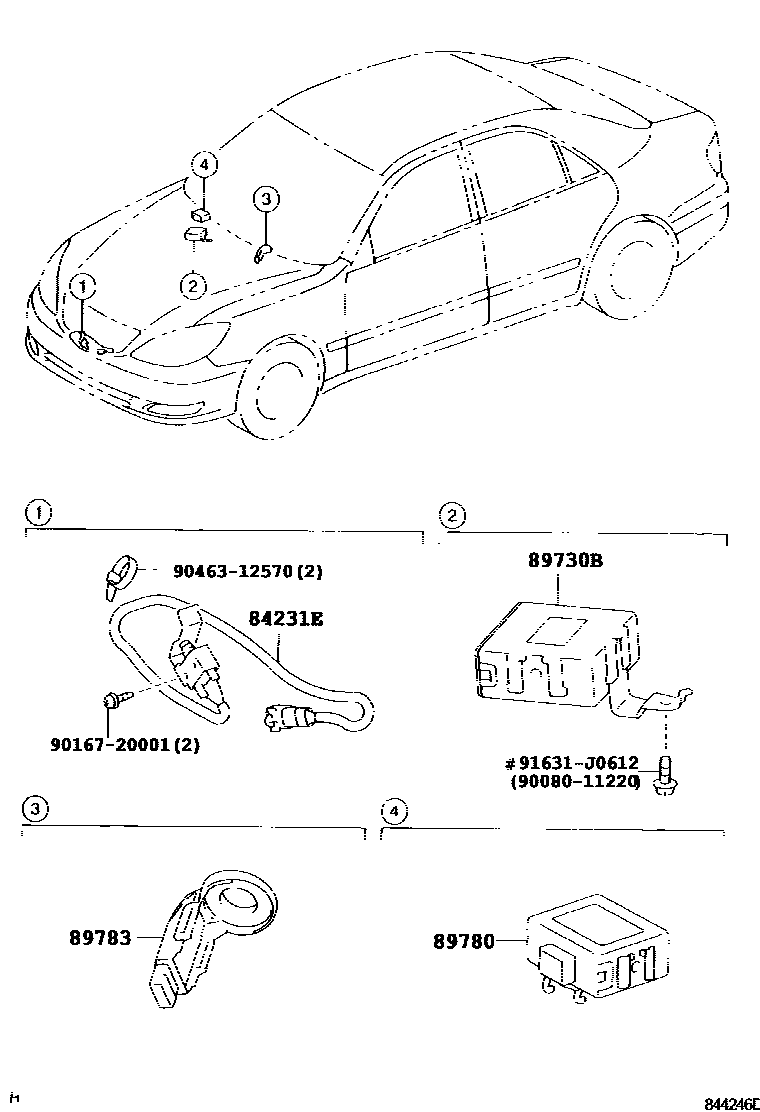

ANTI-THEFT DEVICE

84231ESWITCH, COURTESY(FOR SECURITY)

main84231-33090iMCV30..NAP..XLE200107-200301

89730BCOMPUTER ASSY, THEFT WARNING

main89730-AA010iACV30,MCV30..NAP..XLE..4FC; MCV30..NAP..XLE..5FC200107-200406

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-AA010iACV30..NAP..4FC; MCV3#..NAP200309-200406

89783AMPLIFIER, TRANSPONDER KEY

main89783-06010iACV30..NAP200309-200406

CALIFORNIA SPEC

main89783-AA020iACV30,MCV3#..NAP200406

9008011220

main90080-11220

9016720001

main90167-20001

9046312570

main90463-12570

91631J0612

main91631-J0612

8 parts on this diagram · 1 diagram in section
