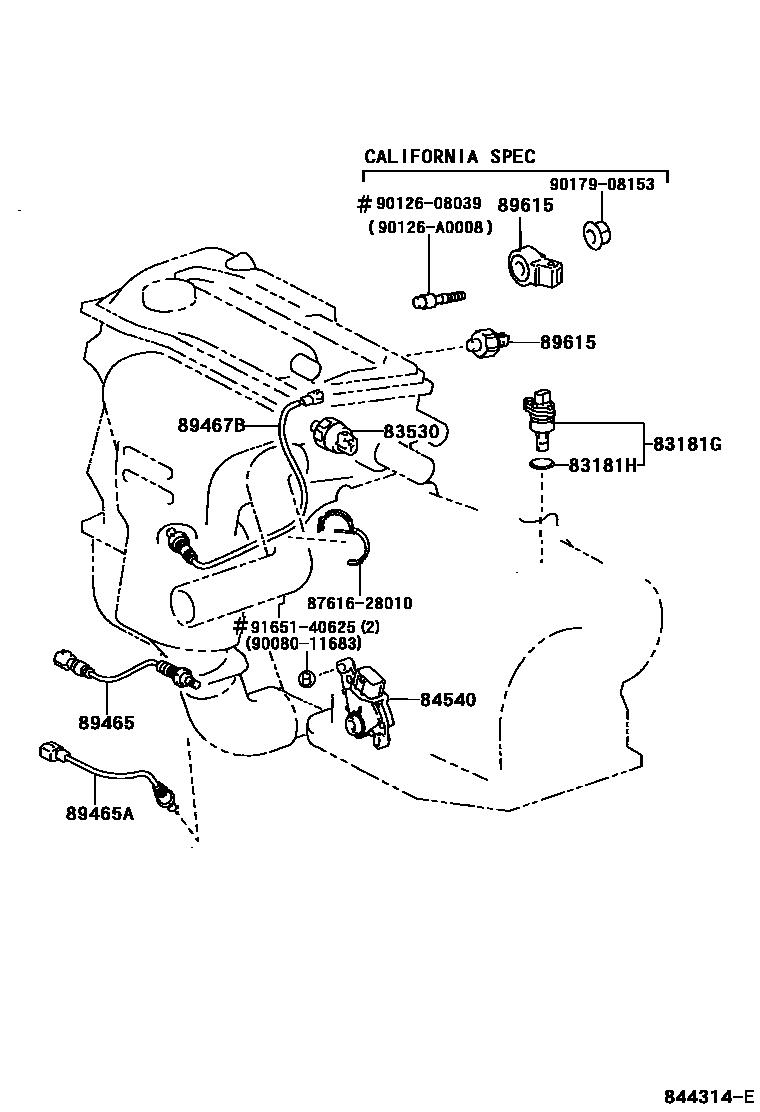

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE ROOM 0006 1ENGINE ROOM 0007 1COWL 0008 1INSTRUMENT PANEL 0009 1INSTRUMENT PANEL 0010 1IGNITION & COMBINATION SWITCH0011 1IGNITION & COMBINATION SWITCH0012 1DOOR,ROOF,FLOOR,SEAT & LUGGAG

83181GSENSOR, SPEEDOMETER

main83181-12040iACV30..NAP200107-200406

83181HRING, O (FOR SPEEDOMETER SENSOR)

main96711-24018iACV30..NAP200107-200406

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iMCV30..NAP200107-200406

DENSO

main83530-AA011iACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

FASCO

sub83530-0E010

84540SWITCH ASSY, NEUTRAL START

main84540-06010iMCV30..NAP..5FC200107-200309

main84540-06010iACV30..NAP200301-200309

(L)

main84540-0E010iACV30..NAP200309-200406

(L)

main84540-0E010iMCV3#..NAP200406

main84540-32110iACV30..NAP200301-200309

(J)

main84540-48010iACV30..NAP200309-200310

(J)

main84540-48010iACV30..NAP200406

89465SENSOR, OXYGEN

main89465-06050iACV30..NAP200107-200309

main89465-06060iMCV30..NAP..(LE,XLE)..5FC200107-200406

main89465-06120iACV30..NAP200309-200406

main89465-06140iMCV31..NAP200309-200406

main89465-33320iACV30..NAP200301-200405

CALIFORNIA SPEC

sub89465-33321

main89465-33321iACV30..NAP200406

CALIFORNIA SPEC

89465ASENSOR, OXYGEN NO.2

main89465-06070iMCV30..NAP200107-200406

main89465-06130iMCV31..NAP200309-200406

main89465-33330iACV30..NAP200301-200405

sub89465-33331

main89465-33331iACV30..NAP200405-200406

89467BSENSOR, AIR FUEL RATIO

main89467-06010iMCV31..NAP200406-200602

(L),REAR

main89467-06020iMCV30..NAP200406-200602

(L),REAR

main89467-06030iACV30..NAP200406-200602

(L)

main89467-06040iMCV31..NAP200406-200602

(L),FRONT

main89467-06050iMCV30..NAP200406-200602

(L),FRONT

main89467-33040iACV30..NAP200107-200309

main89467-33050iMCV30..NAP200107-200309

FRONT

main89467-33060iMCV30..NAP200406-200602

(J),REAR

main89467-33060iMCV30..NAP200107-200406

REAR

main89467-33080iACV30..NAP200309-200406

main89467-33080iACV30..NAP200301-200406

CALIFORNIA SPEC

main89467-33080iACV30..NAP200406-200602

(J)

main89467-33100iMCV31..NAP200406-200602

(J),REAR

main89467-33100iMCV31..NAP200309-200406

REAR

main89467-33110iMCV31..NAP200309-200406

FRONT

main89467-33110iMCV31..NAP200406-200602

(J),FRONT

main89467-33120iMCV30..NAP200309-200406

FRONT

main89467-33120iMCV30..NAP200406-200602

(J),FRONT

89615SENSOR, KNOCK CONTROL

main89615-06010iMCV31..NAP200412

(L)

main89615-12090iMCV30..NAP200107-200406

main89615-20090iACV30..NAP200406

(J)

main89615-20090iACV30..NAP200301-200406

CALIFORNIA SPEC

main89615-20090iMCV31..NAP200309-200406

main89615-44010iACV30..NAP200107-200309

8761628010CLAMP, COOLING UNIT CASE

main87616-28010

9008011683

main90080-11683

9012608039

main90126-08039

90126A0008

main90126-A0008

9017908153

main90179-08153

9165140625

main91651-40625

14 parts on this diagram · 12 diagrams in section
