METER

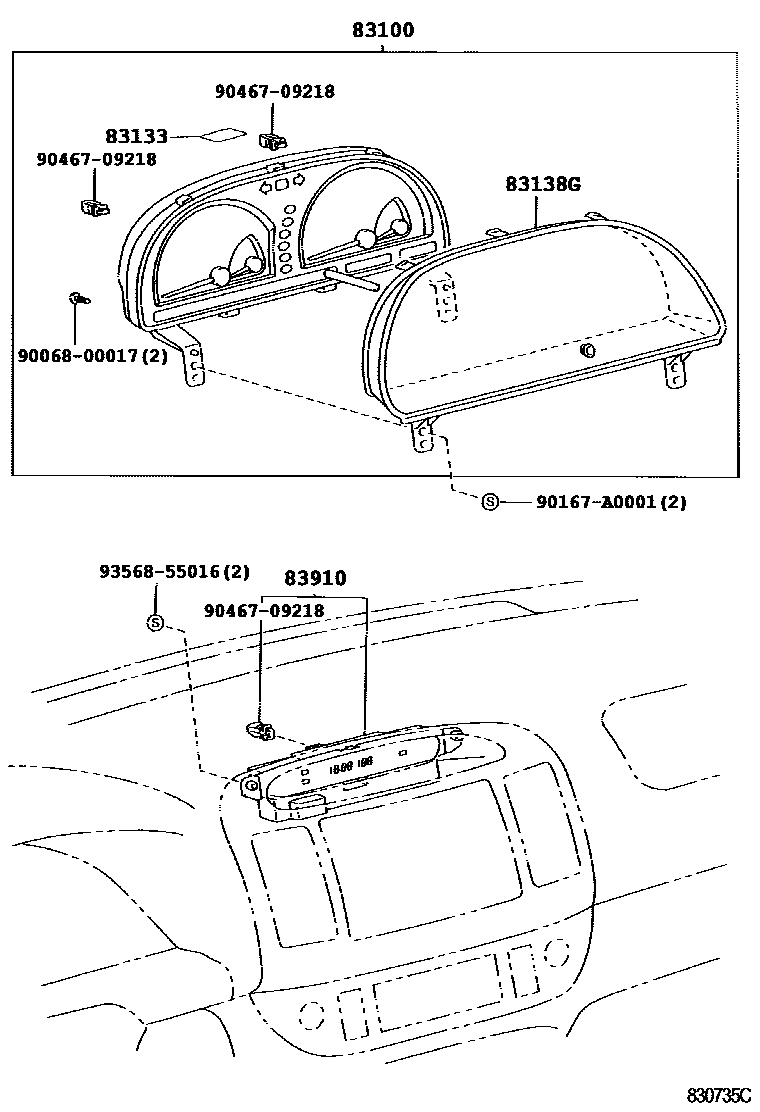

83100METER ASSY, COMBINATION

main83800-06630iACV30..NAP..(LE,XLE)200107-200309

W(ABS)

main83800-06632iACV30..NAP..(LE,XLE)200309-200406

main83800-06640iACV30..NAP..LE200107-200309

main83800-06650iMCV30..NAP..(LE,XLE)200107-200302

main83800-06651iMCV30..NAP..(LE,XLE)200302-200309

main83800-06653iMCV30..NAP200309-200406

main83800-06680iACV30..NAP..SE200107-200309

W(ABS)

main83800-06682iACV30..NAP..SE200309-200406

main83800-06690iACV30..NAP..SE200107-200309

main83800-06700iMCV30..NAP..SE200107-200302

main83800-06701iMCV30..NAP..SE200302-200309

main83800-06A01iMCV31..NAP200309-200406

main83800-06A11iMCV31..NAP200309-200406

CANADA SPEC

main83800-06B80iMCV31..NAP200406-200602

CANADA SPEC

main83800-06C00iACV30..NAP..SE200406-200602

CANADA SPEC

main83800-06C10iACV30..NAP..(LE,XLE)200406-200602

main83800-06C20iMCV30..NAP200406-200602

main83800-06C30iACV30..NAP..(LE,XLE)200406-200602

CANADA OR MEXICO SPEC

main83800-06D50iMCV31..NAP200406-200602

main83800-06D60iACV30..NAP..SE200406-200602

main83800-06D70iMCV30..NAP..LE; MCV30..NAP..XLE200406-200602

CANADA OR MEXICO SPEC; CANADA SPEC

main83800-0W200iACV30..NAP..LE200107-200309

MEXICO SPEC & W(ABS)

main83800-0W202iACV30..NAP..LE; ACV30..NAP..XLE200309-200406

CANADA OR MEXICO SPEC; CANADA SPEC

main83800-0W210iACV30..NAP..LE200107-200309

MEXICO SPEC

main83800-0W220iMCV30..NAP..XLE200107-200302

MEXICO SPEC

main83800-0W221iMCV30..NAP..XLE200302-200309

MEXICO SPEC

main83800-0W222iMCV30..NAP..LE; MCV30..NAP..XLE200309-200406

CANADA OR MEXICO SPEC; CANADA SPEC

main83800-0W312iACV30..NAP..SE200309-200406

CANADA SPEC

83133PLATE, COMBINATION METER, NO.1

main83811-0W240iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

83138GGLASS, COMBINATION METER

main83852-06B50iACV30,MCV3#..NAP200406-200602

main83852-0W260iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

83910CLOCK ASSY

main83910-06070iACV30,MCV30..NAP..LE200406

main83910-06080iACV30,MCV31..NAP..SE200406

main83910-06090iACV30,MCV30..NAP..XLE200406

main83910-33060iACV30,MCV30..NAP..LE200107-200309

main83910-33070iACV30,MCV30..NAP..XLE200107-200309

main83910-33100iACV30,MCV30..NAP..SE200107-200309

main83910-33110iACV30..NAP..SE..4FC; MCV31..NAP200309-200406

main83910-33120iACV30..NAP..LE..4FC; MCV30..NAP..LE200309-200406

main83910-33130iACV30..NAP..XLE..4FC; MCV30..NAP..XLE200309-200406

9006800017

main90068-00017

90167A0001

main90167-A0001

9046709218

main90467-09218

9356855016

main93568-55016

8 parts on this diagram · 1 diagram in section
