WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE 0004 1ENGINE 0005 1INSTRUMENT PANEL 0006 1DOOR, FLOOR & ROOF 0007 1SEAT 0008 1SEAT 0009 1CABLE BOND 0010 1CLAMP & BRACKET 0011 1CONNECTOR

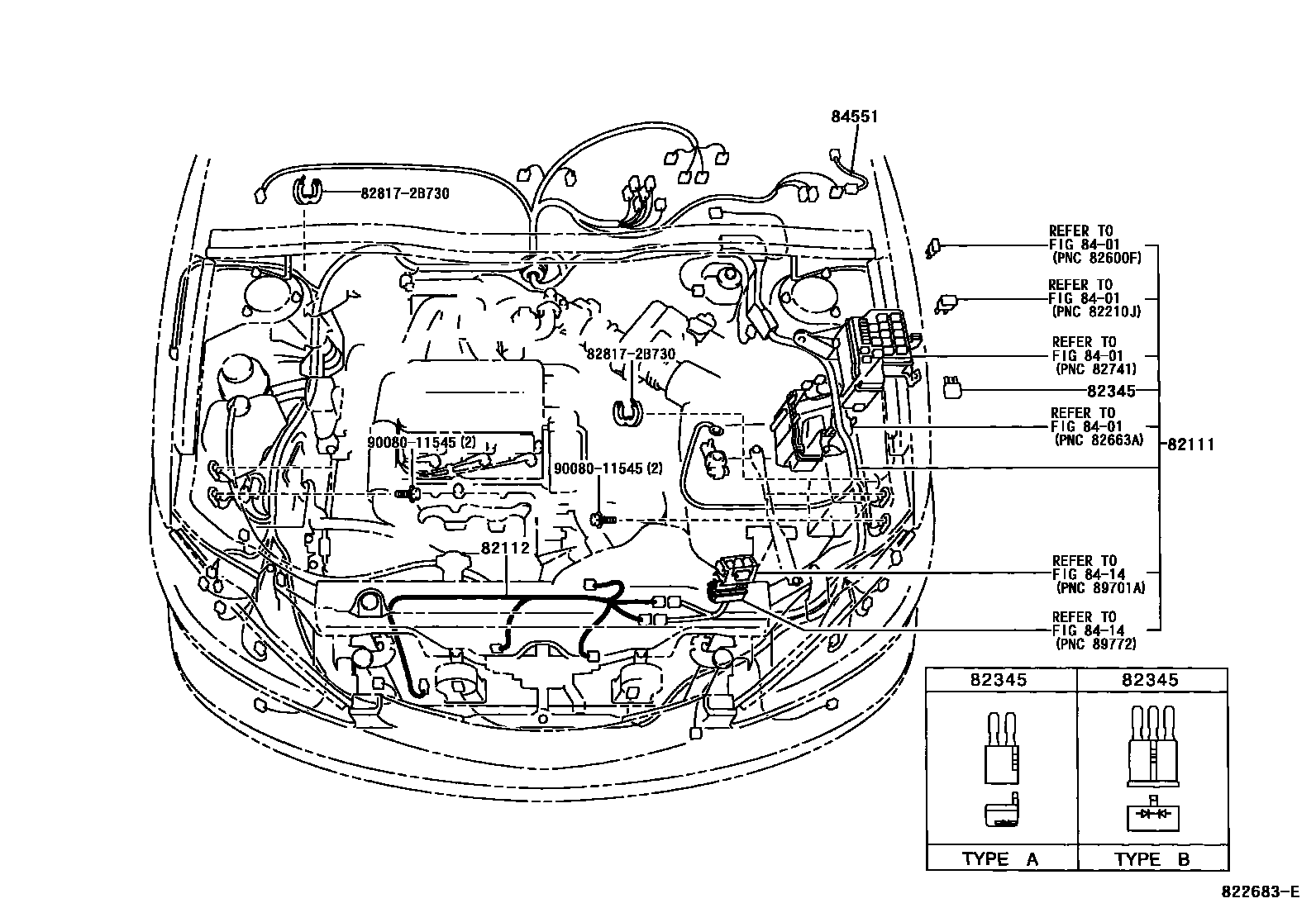

82111WIRE, ENGINE ROOM MAIN

main82111-06A00iACV30..NAP..(LE,SE)200309-200406

CALIFORNIA SPEC

main82111-06A10iACV30..NAP..(LE,SE)200309-200406

CALIFORNIA SPEC & W(ABS)

main82111-06A20iACV30..NAP..XLE200309-200406

CALIFORNIA SPEC

main82111-06A40iACV30..NAP..(LE,SE)200309-200406

CALIFORNIA SPEC & W(ADJUSTABLE PEDAL)

main82111-06A50iACV30..NAP..(LE,SE)200309-200406

CALIFORNIA SPEC & W(ABS & ADJUSTABLE PEDAL)

main82111-06A60iACV30..NAP..XLE200309-200406

CALIFORNIA SPEC & W(ADJUSTABLE PEDAL)

main82111-06C81iACV30..NAP..(LE,SE)200406-200602

W(VSC)

main82111-06C91iACV30..NAP..(LE,SE)200406-200602

CALIFORNIA SPEC & W(VSC)

main82111-06D01iACV30..NAP..XLE200406-200602

W(VSC)

main82111-06D11iACV30..NAP..XLE200406-200602

CALIFORNIA SPEC & W(VSC)

main82111-06D21iACV30..NAP..XLE200406-200602

main82111-06D31iACV30..NAP..(LE,SE)200406-200602

main82111-06D41iACV30..NAP..(LE,SE)200406-200602

W(ADJUSTABLE PEDAL)

main82111-06D51iACV30..NAP..XLE200406-200602

W(ADJUSTABLE PEDAL)

main82111-06D61iACV30..NAP..(LE,SE)200406-200602

CALIFORNIA SPEC

main82111-06D71iACV30..NAP..XLE200406-200602

CALIFORNIA SPEC

main82111-06D81iACV30..NAP..(LE,SE)200406-200602

CALIFORNIA SPEC & W(ADJUSTABLE PEDAL)

main82111-06D91iACV30..NAP..XLE200406-200602

CALIFORNIA SPEC & W(ADJUSTABLE PEDAL)

main82111-06E01iMCV3#..NAP..(LE,SE)200406-200602

main82111-06E11iMCV3#..NAP..(LE,SE)200406-200602

W(VSC)

main82111-06E21iMCV30..NAP..XLE200406-200602

main82111-06E31iMCV30..NAP..XLE200406-200602

W(VSC)

main82111-06E41iMCV3#..NAP..(LE,SE)200406-200602

W(ADJUSTABLE PEDAL)

main82111-06E51iMCV30..NAP..XLE200406-200602

W(ADJUSTABLE PEDAL)

main82111-06E61iMCV31..NAP200406-200602

W(ADJUSTABLE PEDAL & VSC)

main82111-06E71iMCV30..NAP..XLE200406-200602

W(ADJUSTABLE PEDAL & VSC)

main82115-06080iACV30..NAP..LE; ACV30..NAP..SE200107-200301

W(KEY LESS ENTRY)

main82115-06081iACV30..NAP..LE; ACV30..NAP..SE200301-200309

W(KEY LESS ENTRY)

main82115-06082iACV30..NAP..(LE,SE)200309-200406

main82115-06470iACV30..NAP..(LE,SE)200107-200301

W(ABS) OR W(ABS & KEY LESS ENTRY)

main82115-06471iACV30..NAP..(LE,SE)200301-200309

W(ABS) OR W(ABS & KEY LESS ENTRY)

main82115-06472iACV30..NAP..(LE,SE)200309-200406

W(ABS)

main82115-06480iMCV30..NAP..(LE,SE)200107-200302

main82115-06481iMCV30..NAP..(LE,SE)200302-200309

main82115-06482iMCV3#..NAP..(LE,SE)200309-200406

main82115-06490iMCV30..NAP..(LE,SE)200107-200302

W(VSC)

main82115-06491iMCV30..NAP..(LE,SE)200302-200309

W(VSC)

main82115-06492iMCV3#..NAP..(LE,SE)200309-200406

W(VSC)

main82115-06690iACV30..NAP..LE200107-200301

main82115-06691iACV30..NAP..LE200301-200309

main82115-06700iACV30..NAP..XLE200107-200301

W(ABS)

main82115-06701iACV30..NAP..XLE200301-200309

main82115-06702iACV30..NAP..XLE200309-200406

main82115-06710iMCV30..NAP..XLE200107-200302

main82115-06711iMCV30..NAP..XLE200302-200309

main82115-06712iMCV30..NAP..XLE200309-200406

main82115-06720iMCV30..NAP..XLE200107-200302

W(VSC)

main82115-06721iMCV30..NAP..XLE200302-200309

W(VSC)

main82115-06722iMCV30..NAP..XLE200309-200406

W(VSC)

main82116-06040iACV30..NAP..LE200209-200301

W(ADJUSTABLE PEDAL)

main82116-06041iACV30..NAP..LE200301-200309

W(ADJUSTABLE PEDAL)

main82116-06050iACV30..NAP..(LE,SE)200209-200301

W(ADJUSTABLE PEDAL & KEY LESS ENTRY) OR W(ADJUSTABLE PEDAL)

main82116-06051iACV30..NAP..LE; ACV30..NAP..SE200301-200309

W(ADJUSTABLE PEDAL & KEY LESS ENTRY); W(ADJUSTABLE PEDAL)

main82116-06052iACV30..NAP..(LE,SE)200309-200406

W(ADJUSTABLE PEDAL)

main82116-06060iACV30..NAP..(LE,SE)200209-200301

W(ABS & ADJUSTABLE PEDAL)

main82116-06061iACV30..NAP..(LE,SE)200301-200309

W(ABS & ADJUSTABLE PEDAL)

main82116-06062iACV30..NAP..(LE,SE)200309-200406

W(ABS & ADJUSTABLE PEDAL)

main82116-06070iACV30..NAP..XLE200209-200301

W(ADJUSTABLE PEDAL)

main82116-06071iACV30..NAP..XLE200301-200309

W(ADJUSTABLE PEDAL)

main82116-06072iACV30..NAP..XLE200309-200406

W(ADJUSTABLE PEDAL)

main82116-06080iMCV30..NAP..(LE,SE)200209-200302

W(ADJUSTABLE PEDAL)

main82116-06081iMCV30..NAP..(LE,SE)200302-200309

W(ADJUSTABLE PEDAL)

main82116-06082iMCV3#..NAP..(LE,SE)200309-200406

W(ADJUSTABLE PEDAL)

main82116-06090iMCV30..NAP..XLE200209-200302

W(ADJUSTABLE PEDAL)

main82116-06091iMCV30..NAP..XLE200302-200309

W(ADJUSTABLE PEDAL)

main82116-06092iMCV30..NAP..XLE200309-200406

W(ADJUSTABLE PEDAL)

main82116-06100iMCV30..NAP..(LE,SE)200209-200302

W(ADJUSTABLE PEDAL & VSC)

main82116-06101iMCV30..NAP..(LE,SE)200302-200309

W(ABS & ADJUSTABLE PEDAL)

main82116-06102iMCV31..NAP200309-200406

W(ADJUSTABLE PEDAL & VSC)

main82116-06110iMCV30..NAP..XLE200209-200302

W(ADJUSTABLE PEDAL & VSC)

main82116-06111iMCV30..NAP..XLE200302-200309

W(ABS & ADJUSTABLE PEDAL)

main82116-06112iMCV30..NAP..XLE200309-200406

W(ADJUSTABLE PEDAL & VSC)

82112WIRE, ENGINE ROOM, NO.2

main82112-06010iACV30..NAP..(LE,SE)200107-200406

main82112-06020iACV30..NAP..XLE200406

main82112-06030iMCV3#..NAP..(LE,SE)200406

main82112-06040iMCV30..NAP..XLE200406

82345DIODE

main82345-12050iACV30..NAP200107-200406

TYPE A

main82345-32020iACV30..NAP200209-200406

TYPE B:REFER TO ILLUSTRATION

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8414ABS & VSC

→ Go to FIG 84-14

84551WIRE, PARKING BRAKE SWITCH

main84551-33010iACV30,MCV30..NAP..XLE200201-200406

828172B730PROTECTOR, WIRING HARNESS, NO.1

main82817-2B730

9008011545

main90080-11545

8 parts on this diagram · 11 diagrams in section
