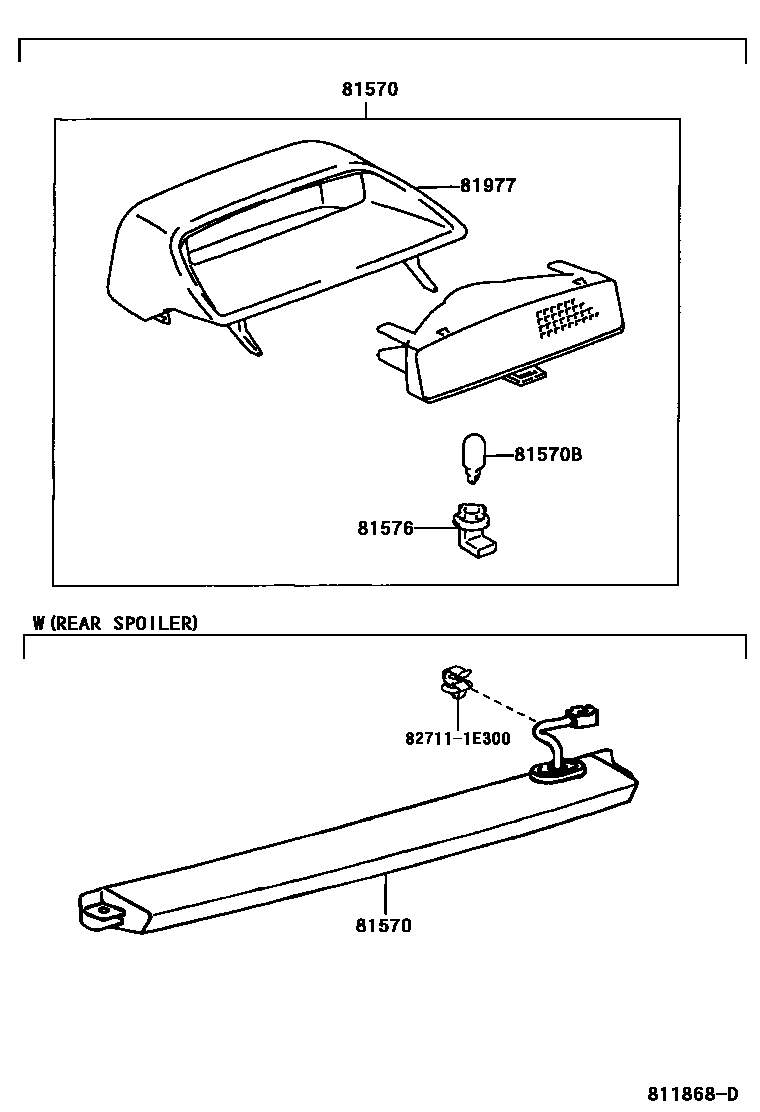

CENTER STOP LAMP

81570LAMP ASSY, CENTER STOP

main81570-AA010-B2iACV30..NAP..(LE,XLE);MCV30..NAP..(LE,XLE)..5FC200107-200406

STONE,TRIM1#

main81570-AA010-B3iACV30,MCV31..NAP..SE200406

DK.GRAY,TRIM9#

main81570-AA010-E1iMCV30..NAP..(LE,XLE)200107-200301

FAWN,TRIM4#

main81570-AA020iMCV30..NAP..SE..5FC200107-200309

W(REAR SPOILER)

81570BBULB (FOR CENTER STOP LAMP)

main90981-11039iACV30..NAP;MCV30..NAP..SE; MCV31..NAP;MCV30..NAP..(LE,XLE)200301-200406

12V 16W

main90981-11059iACV30,MCV3#..NAP200406

12V 16W

81576SOCKET & WIRE, CENTER STOP LAMP

main81576-08010iACV30..NAP;MCV30..NAP..SE; MCV31..NAP;MCV30..NAP..(LE,XLE)200301-200406

81977COVER, CENTER STOP LAMP

main81977-AA010-B2iMCV30..NAP..(LE,XLE)200107-200301

STONE,TRIM1#

main81977-AA010-B3iACV30,MCV31..NAP..SE200406

DK.GRAY,TRIM9#

main81977-AA010-E1iACV30,MCV3#..NAP200406

FAWN,TRIM4#

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E300

5 parts on this diagram · 1 diagram in section
