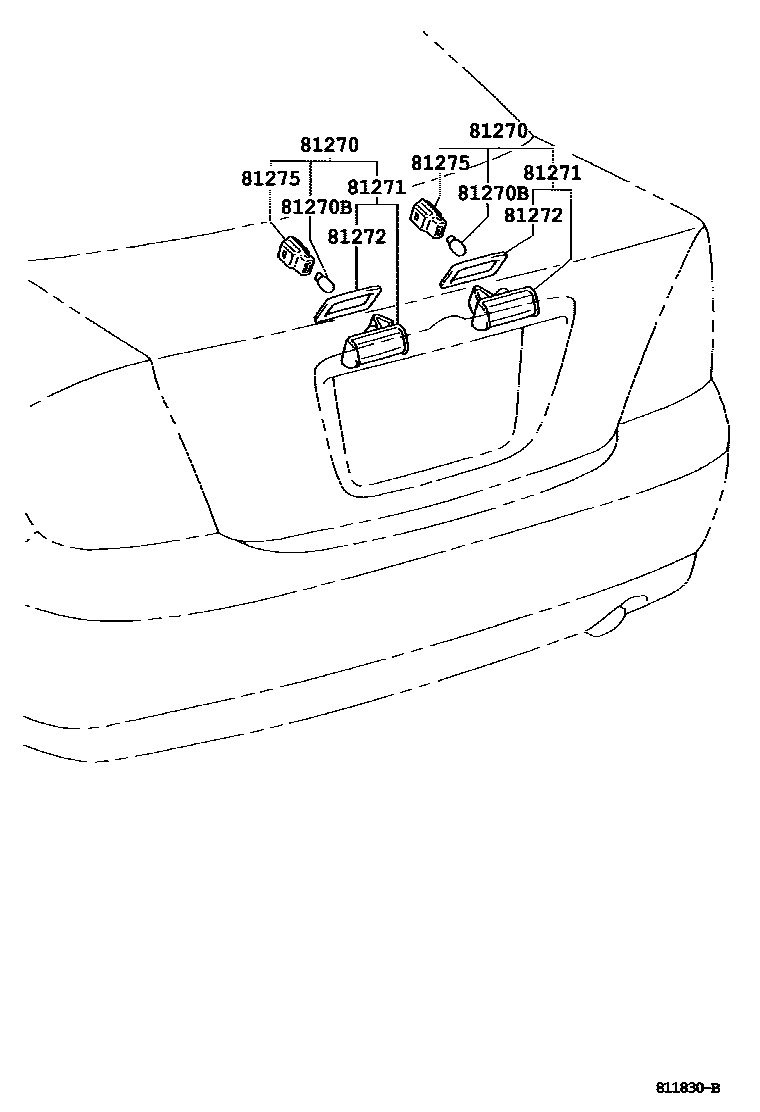

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-AA020×2iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

81270BBULB (FOR LICENSE PLATE LAMP)

main90084-98043×2iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-AA020×2iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

81272GASKET, LICENSE PLATE LAMP LENS

main81274-AA020×2iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main90075-60037×2iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

5 parts on this diagram · 1 diagram in section
