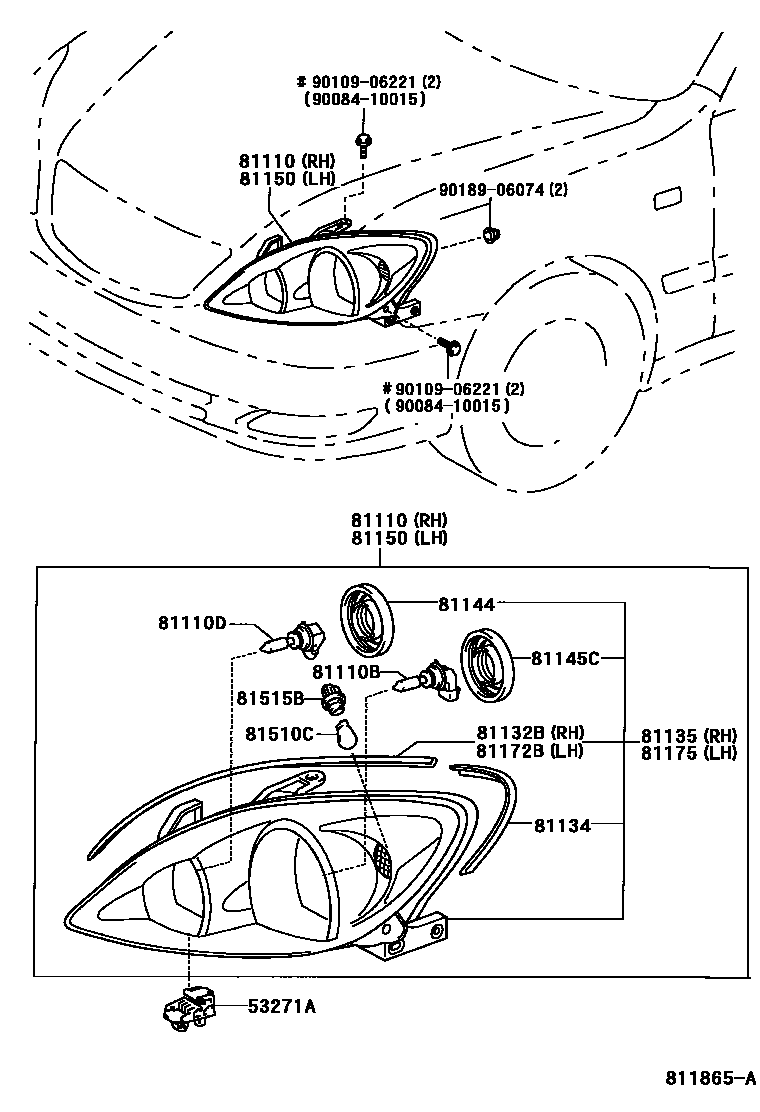

HEADLAMP

0001 1 0002 1

53271ABRACKET, HEADLAMP MOUNTING

main53271-44010×2iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

81110HEADLAMP ASSY, RH

main81110-06180iACV30,MCV30..NAP..(LE,XLE)200406

main81110-06190iACV30,MCV31..NAP..SE200406

main81110-AA030iACV30,MCV30..NAP..(LE,XLE)200107-200112

main81110-AA040iACV30,MCV30..NAP..SE200107-200112

main81110-AA060iACV30,MCV30..NAP..(LE,XLE)..4FC; MCV30..NAP..(LE,XLE)..5FC200112-200406

main81110-AA070iACV30,MCV30..NAP..SE; MCV31..NAP200112-200406

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81040×2iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

12V 51W

main90981-13047×2iACV30,MCV3#..NAP200406

12V 51W,HALOGEN

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81041×2iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

12V 65W

81132BGASKET, HEADLAMP LENS

main81132-06180iACV30,MCV3#..NAP200406

main81132-AA030iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

81134GASKET, HEADLAMP

main81134-AA030iACV30,MCV30..NAP200107-200112

RH

main81134-AA060iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200112-200406

RH

main81174-AA030iACV30,MCV30..NAP200107-200112

LH

main81174-AA060iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200112-200406

LH

81135UNIT ASSY, HEADLAMP, RH

main81130-06180iACV30,MCV30..NAP..(LE,XLE)200406

main81130-06190iACV30,MCV31..NAP..SE200406

main81130-AA030iACV30,MCV30..NAP..(LE,XLE)200107-200112

main81130-AA040iACV30,MCV30..NAP..SE200107-200112

main81130-AA060iACV30,MCV30..NAP..(LE,XLE)..4FC; MCV30..NAP..(LE,XLE)..5FC200112-200406

main81130-AA070iACV30,MCV30..NAP..SE; MCV31..NAP200112-200406

81144COVER, HEADLAMP, NO.1

main90069-81008×2iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

81145CCOVER, HEADLAMP SOCKET, NO.2

main90069-81008×2iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

81150HEADLAMP ASSY, LH

main81150-06180iACV30,MCV30..NAP..(LE,XLE)200406

main81150-06190iACV30,MCV31..NAP..SE200406

main81150-AA030iACV30,MCV30..NAP..(LE,XLE)200107-200112

main81150-AA040iACV30,MCV30..NAP..SE200107-200112

main81150-AA060iACV30,MCV30..NAP..(LE,XLE)..4FC; MCV30..NAP..(LE,XLE)..5FC200112-200406

main81150-AA070iACV30,MCV30..NAP..SE; MCV31..NAP200112-200406

81172BGASKET, HEADLAMP LENS

main81132-06180iACV30,MCV3#..NAP200406

main81172-AA030iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

81175UNIT ASSY, HEADLAMP, LH

main81170-06180iACV30,MCV30..NAP..(LE,XLE)200406

main81170-06190iACV30,MCV31..NAP..SE200406

main81170-AA030iACV30,MCV30..NAP..(LE,XLE)200107-200112

main81170-AA040iACV30,MCV30..NAP..SE200107-200112

main81170-AA060iACV30,MCV30..NAP..(LE,XLE)..4FC; MCV30..NAP..(LE,XLE)..5FC200112-200406

main81170-AA070iACV30,MCV30..NAP..SE; MCV31..NAP200112-200406

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90084-98061×2iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

12V 30/8W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90069-81003×2iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

9008410015

main90084-10015

9010906221

main90109-06221

9018906074

main90189-06074

17 parts on this diagram · 2 diagrams in section
