ACCELERATOR LINK

0001 1 0002 1POWER ADJUSTABLE PEDAL

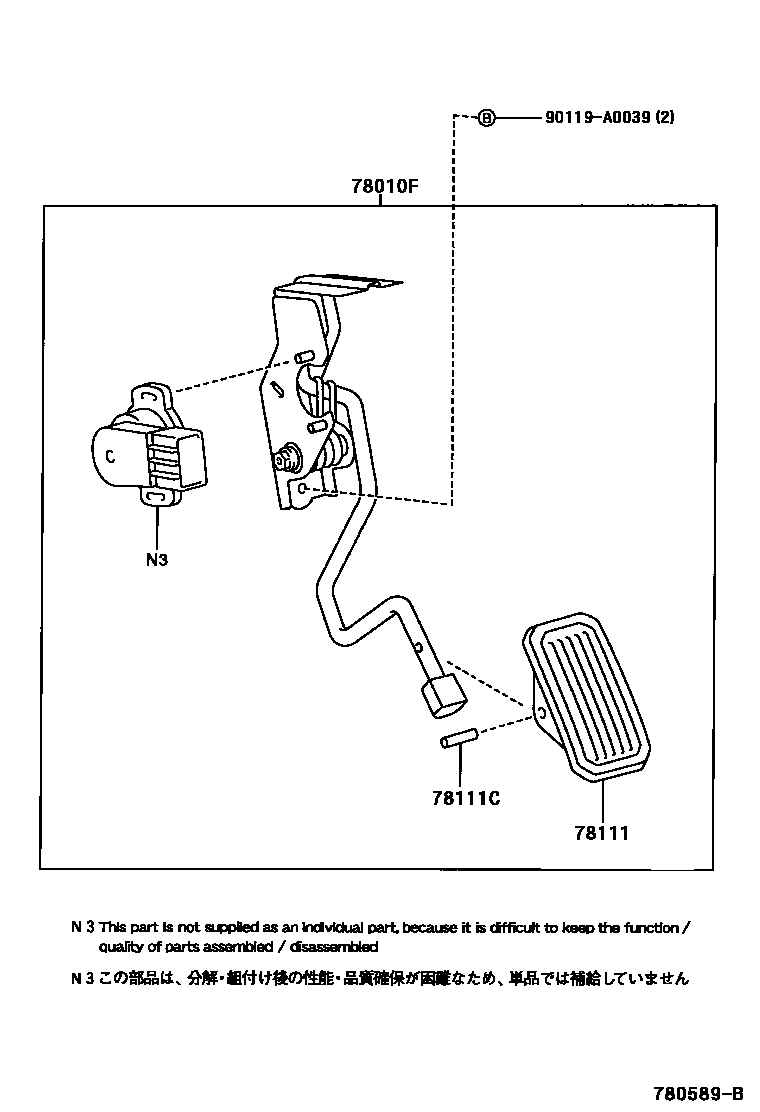

78010FPEDAL ASSY, ACCELERATOR

main78010-33010iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

78111PEDAL, ACCELERATOR

main78111-33010iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

78111CPIN (FOR ACCELERATOR PEDAL)

main90254-04019iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

90119A0039

main90119-A0039

4 parts on this diagram · 2 diagrams in section
