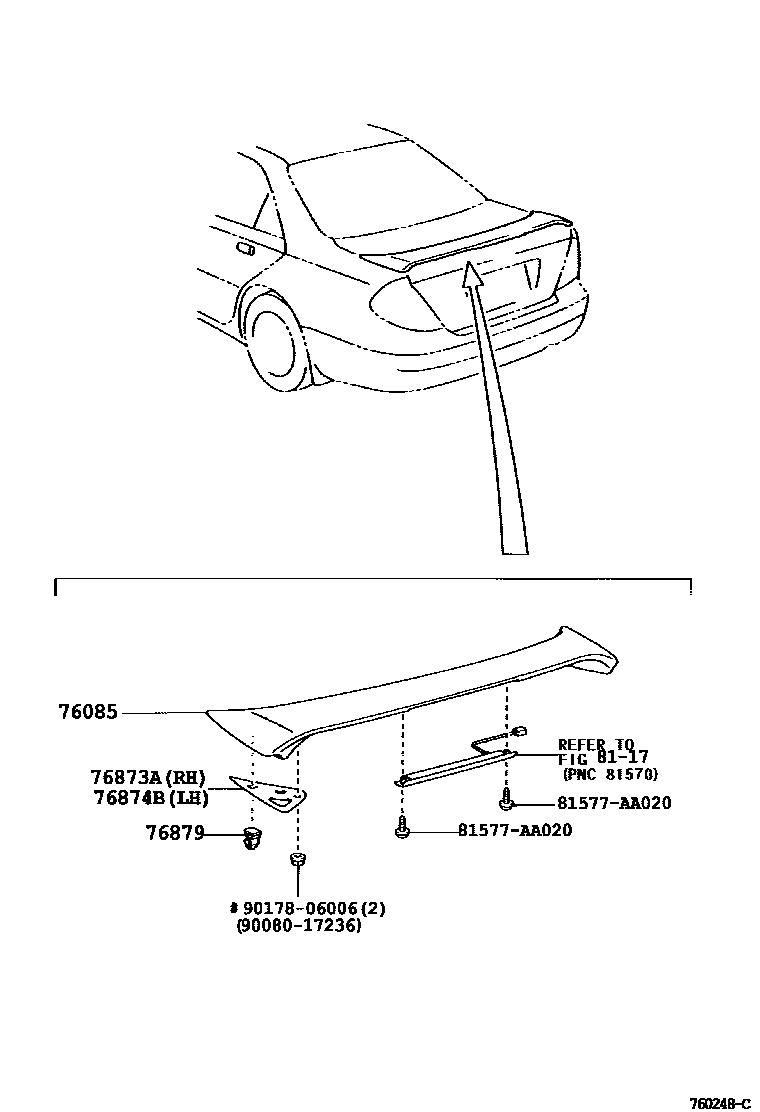

MUDGUARD & SPOILER

76085SPOILER SUB-ASSY, REAR

main76871-AA900iMCV30..NAP..SE;ACV30..NAP..SE..4FC; MCV31..NAP200107-200406

76873APROTECTOR, REAR SPOILER, RH

main76781-AA010iMCV30..NAP..SE;ACV30..NAP..SE..4FC; MCV31..NAP200107-200406

76874BPROTECTOR, REAR SPOILER, LH

main76782-AA010iMCV30..NAP..SE;ACV30..NAP..SE..4FC; MCV31..NAP200107-200406

76879CLIP, REAR SPOILER, NO.1

main76879-12040×2iMCV30..NAP..SE;ACV30..NAP..SE..4FC; MCV31..NAP200107-200406

8117CENTER STOP LAMP

→ Go to FIG 81-17

81577AA020

main81577-AA020

9008017236

main90080-17236

9017806006

main90178-06006

8 parts on this diagram · 1 diagram in section
