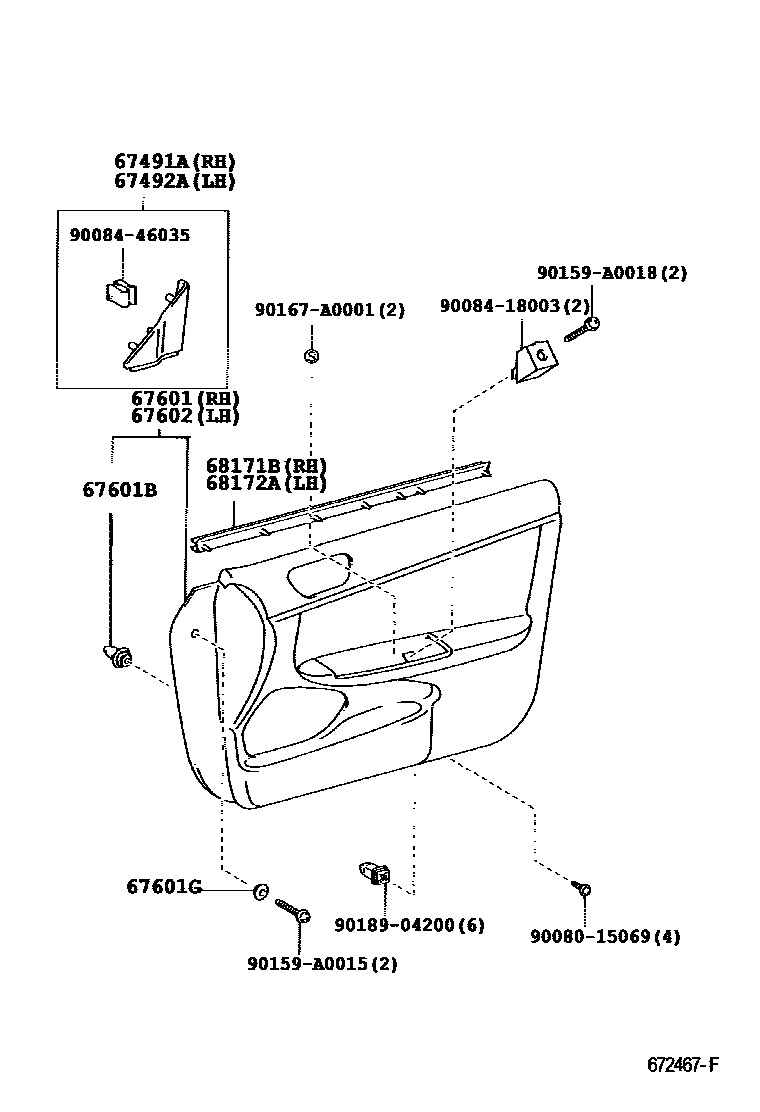

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-AA040iACV30,MCV3#..NAP200107-200406

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-AA040iACV30,MCV3#..NAP200107-200406

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-AA420-B0iACV30,MCV30..NAP..(LE,XLE)200107-200304

STONE,TRIM1#

sub67610-AA422

main67610-AA420-E0iACV30,MCV30..NAP..(LE,XLE)200107-200304

FAWN,TRIM4#

sub67610-AA422

main67610-AA422-B0iACV30,MCV30..NAP..(LE,XLE)200304-200406

STONE,TRIM1#

main67610-AA422-E0iACV30,MCV30..NAP..(LE,XLE)200304-200406

FAWN,TRIM4#

main67610-AA422-E1iACV30,MCV30..NAP..(LE,XLE)200406

FAWN,TRIM4#

main67610-AA422-K0iACV30,MCV30..NAP..(LE,XLE)200406

STONE,TRIM9#

main67610-AA430-B0iACV30,MCV30..NAP..SE200107-200304

STONE,TRIM1#

sub67610-AA431

main67610-AA430-E0iACV30,MCV30..NAP..SE200107-200304

FAWN,TRIM4#

sub67610-AA431

main67610-AA431-B0iACV30,MCV3#..NAP..SE200304-200406

STONE,TRIM1#

sub67610-AA431

main67610-AA431-E0iACV30,MCV31..NAP..SE200304-200406

FAWN,TRIM4#

sub67610-AA431

main67610-AA431-K0iACV30,MCV31..NAP..SE200406

STONE,TRIM9#

sub67610-AA431

main67610-AA440-B0iACV30,MCV30..NAP..XLE200107-200304

LEATHER TYPE,STONE,TRIM1#

sub67610-AA441

main67610-AA440-B1iACV30,MCV30..NAP..SE200107-200304

LEATHER TYPE,DK.GRAY,TRIM1#

sub67610-AA441

main67610-AA440-E0iACV30,MCV30..NAP..XLE200107-200304

LEATHER TYPE,FAWN,TRIM4#

sub67610-AA441

main67610-AA440-E1iACV30,MCV30..NAP..SE200107-200304

LEATHER TYPE,FAWN,TRIM4#

sub67610-AA441

main67610-AA441-B0iACV30,MCV30..NAP..XLE200304-200406

LEATHER TYPE,STONE,TRIM1#

sub67610-AA441

main67610-AA441-B1iACV30,MCV3#..NAP..SE200304-200406

LEATHER TYPE,DK.GRAY,TRIM1#

sub67610-AA441

main67610-AA441-E0iACV30,MCV30..NAP..XLE200304-200406

LEATHER TYPE,FAWN,TRIM4#

sub67610-AA441

main67610-AA441-E1iACV30,MCV3#..NAP..SE200304-200406

LEATHER TYPE,FAWN,TRIM4#

sub67610-AA441

main67610-AA441-K0iACV30,MCV30..NAP..XLE200406

LEATHER TYPE,STONE,TRIM9#

sub67610-AA441

main67610-AA441-K1iACV30,MCV31..NAP..SE200406

LEATHER TYPE,STONE,TRIM9#

sub67610-AA441

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-10161iMCV30..NAP200107-200406

67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

main90950-01746-B6iACV30,MCV30..NAP..(LE,XLE)200107-200406

DK.CHARCOAL,TRIM1#

sub90950-01746

main90950-01746-B6iACV30,MCV30..NAP..(LE,XLE)200406

DK.CHARCOAL,TRIM9#

sub90950-01746

main90950-01746-B7iACV30,MCV31..NAP..SE200406

DK.GRAY,TRIM4#,9#

sub90950-01746

main90950-01746-B7iACV30,MCV3#..NAP..SE200107-200406

DK.GRAY,TRIM1#,4#

sub90950-01746

main90950-01746-E5iACV30,MCV30..NAP..(LE,XLE)200107-200406

SANDAL WOOD,TRIM4#

sub90950-01746

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-AA380-B0iACV30,MCV30..NAP..(LE,XLE)200107-200304

STONE,TRIM1#

sub67620-AA382

main67620-AA380-E0iACV30,MCV30..NAP..(LE,XLE)200107-200304

FAWN,TRIM4#

sub67620-AA382

main67620-AA382-B0iACV30,MCV30..NAP..(LE,XLE)200304-200406

STONE,TRIM1#

main67620-AA382-E0iACV30,MCV30..NAP..(LE,XLE)200304-200406

FAWN,TRIM4#

main67620-AA382-E1iACV30,MCV30..NAP..(LE,XLE)200406

FAWN,TRIM4#

main67620-AA382-K0iACV30,MCV30..NAP..(LE,XLE)200406

STONE,TRIM9#

main67620-AA390-B0iACV30,MCV30..NAP..SE200107-200304

DK.GRAY,TRIM1#

sub67620-AA391

main67620-AA390-E0iACV30,MCV30..NAP..SE200107-200304

FAWN,TRIM4#

sub67620-AA391

main67620-AA391-B0iACV30,MCV3#..NAP..SE200304-200406

STONE,TRIM1#

sub67620-AA391

main67620-AA391-E0iACV30,MCV31..NAP..SE200304-200406

FAWN,TRIM4#

sub67620-AA391

main67620-AA391-K0iACV30,MCV31..NAP..SE200406

STONE,TRIM9#

sub67620-AA391

main67620-AA400-B0iACV30,MCV30..NAP..XLE200107-200304

LEATHER TYPE,STONE,TRIM1#

sub67620-AA401

main67620-AA400-B1iACV30,MCV30..NAP..SE200107-200304

LEATHER TYPE,DK.GRAY,TRIM1#

sub67620-AA401

main67620-AA400-E0iACV30,MCV30..NAP..XLE200107-200304

LEATHER TYPE,FAWN,TRIM4#

sub67620-AA401

main67620-AA400-E1iACV30,MCV30..NAP..SE200107-200304

LEATHER TYPE,FAWN,TRIM4#

sub67620-AA401

main67620-AA401-B0iACV30,MCV30..NAP..XLE200304-200406

LEATHER TYPE,STONE,TRIM1#

sub67620-AA401

main67620-AA401-B1iACV30,MCV3#..NAP..SE200304-200406

LEATHER TYPE,DK.GRAY,TRIM1#

sub67620-AA401

main67620-AA401-E0iACV30,MCV30..NAP..XLE200304-200406

LEATHER TYPE,FAWN,TRIM4#

sub67620-AA401

main67620-AA401-E1iACV30,MCV3#..NAP..SE200304-200406

LEATHER TYPE,FAWN,TRIM4#

sub67620-AA401

main67620-AA401-K0iACV30,MCV30..NAP..XLE200406

LEATHER TYPE,STONE,TRIM9#

sub67620-AA401

main67620-AA401-K1iACV30,MCV31..NAP..SE200406

LEATHER TYPE,STONE,TRIM9#

sub67620-AA401

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-AA020iACV30,MCV3#..NAP200107-200406

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-AA010iACV30,MCV3#..NAP200107-200406

9008015069

main90080-15069

9008418003

main90084-18003

9008446035

main90084-46035

90159A0015

main90159-A0015

90159A0018

main90159-A0018

90167A0001

main90167-A0001

9018904200

main90189-04200

15 parts on this diagram · 2 diagrams in section
