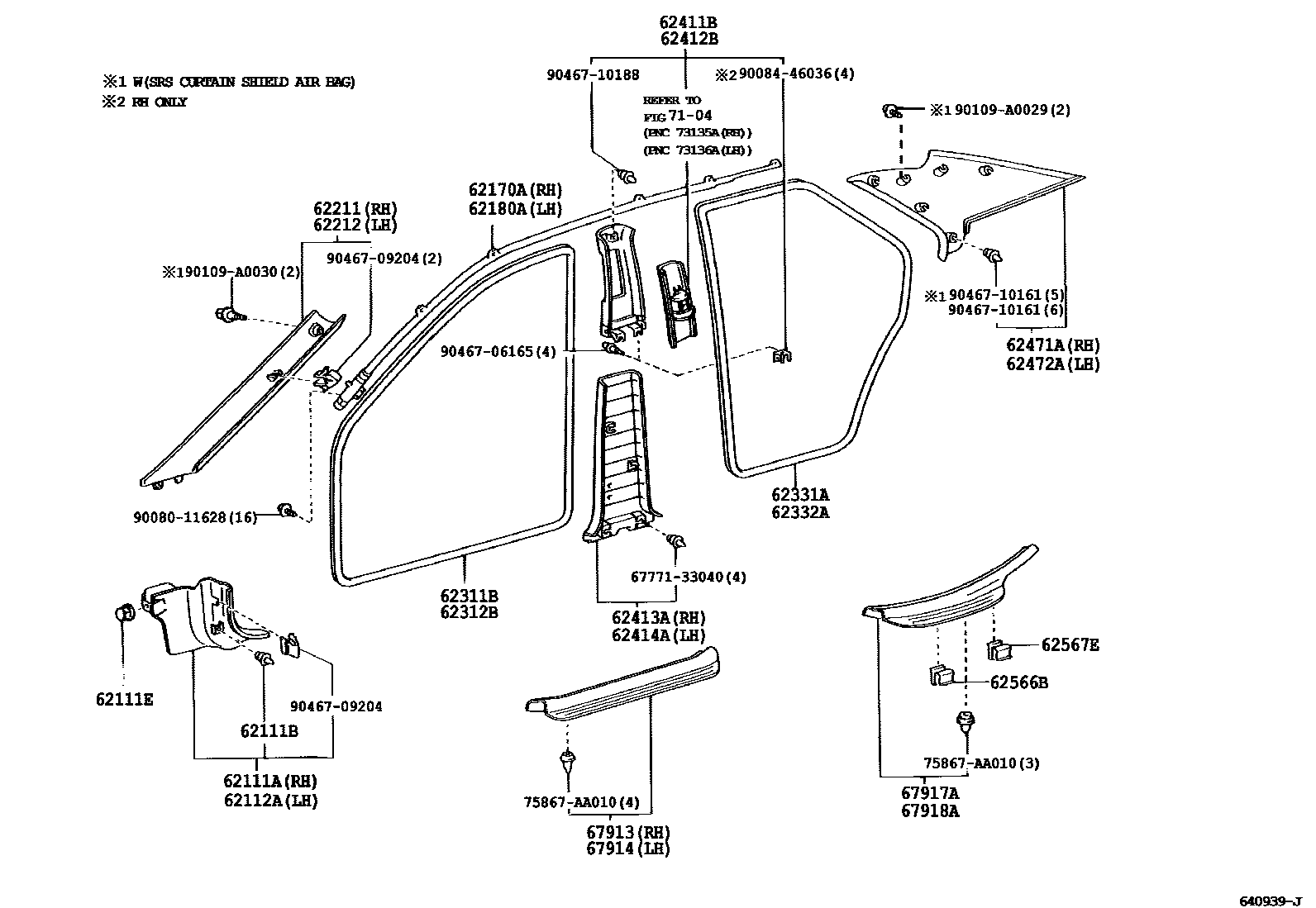

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-AA020-B0iMCV30..NAP..(LE,XLE)200107-200301

STONE,TRIM1#

main62101-AA020-B1iACV30,MCV31..NAP..SE200107-200406

DK.GRAY,TRIM1#

main62101-AA020-E0iMCV30..NAP200107-200301

FAWN,TRIM4#

62111BCLIP(FOR COWL SIDE TRIM)

main67771-33040×2iACV30,MCV3#..NAP200107-200406

62111ERETAINER, COWL SIDE TRIM

main90467-06147×2iACV30,MCV3#..NAP200107-200404

main90467-A0024×2iACV30,MCV3#..NAP200405-200406

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-AA020-B0iMCV30..NAP..(LE,XLE)200107-200301

STONE,TRIM1#

main62102-AA020-B1iMCV30..NAP..SE..5FC200107-200309

DK.GRAY,TRIM1#

main62102-AA020-E0iMCV30..NAP200107-200301

FAWN,TRIM4#

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-06010iACV30,MCV30..NAP200107-200111

main62170-06011iACV30,MCV3#..NAP200111-200406

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-06010iACV30,MCV30..NAP200107-200111

main62180-06011iACV30,MCV3#..NAP200406

62211GARNISH, FRONT PILLAR, RH

main62210-AA040-A1iACV30,MCV3#..NAP200406

IVORY,TRIM4#

main62210-AA040-B1iMCV30..NAP200107-200301

LIGHT GRAY,TRIM1#

main62210-AA050-A1iMCV30..NAP..SE..5FC200107-200309

W(SRS CURTAIN SHIELD AIR BAG),IVORY,TRIM4#

main62210-AA050-B1iMCV30..NAP200107-200301

W(SRS CURTAIN SHIELD AIR BAG),LIGHT GRAY,TRIM1#

62212GARNISH, FRONT PILLAR, LH

main62220-AA040-A1iACV30,MCV3#..NAP200406

IVORY,TRIM4#

main62220-AA040-B1iMCV30..NAP..SE..5FC200107-200309

LIGHT GRAY,TRIM1#

main62220-AA050-A1iACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

W(SRS CURTAIN SHIELD AIR BAG),IVORY,TRIM4#

main62220-AA050-B1iMCV30..NAP..SE..5FC200107-200309

W(SRS CURTAIN SHIELD AIR BAG),LIGHT GRAY,TRIM1#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-AA030-B0iACV30,MCV30..NAP..(LE,XLE)200406

STONE,TRIM9#

main62311-AA030-B1iACV30,MCV31..NAP..SE200107-200406

DK.GRAY,TRIM1#

main62311-AA030-E0iACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

FAWN,TRIM4#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-AA030-B0iMCV30..NAP..(LE,XLE)200107-200301

STONE,TRIM1#

main62312-AA030-B1iACV30,MCV31..NAP..SE200107-200406

DK.GRAY,TRIM1#

main62312-AA030-E0iACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

FAWN,TRIM4#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-AA020-B0iMCV30..NAP..(LE,XLE)200107-200301

STONE,TRIM1#

main62331-AA020-B1iACV30,MCV31..NAP..SE200107-200406

DK.GRAY,TRIM1#

main62331-AA020-E0iMCV30..NAP200107-200301

FAWN,TRIM4#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-AA020-B0iMCV30..NAP..(LE,XLE)200107-200301

STONE,TRIM1#

main62332-AA020-B1iACV30,MCV31..NAP..SE200107-200406

DK.GRAY,TRIM1#

main62332-AA020-E0iMCV30..NAP..SE..5FC200107-200309

FAWN,TRIM4#

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-33110-A1iACV30,MCV3#..NAP200512-200602

IVORY,TRIM4#,(J)

main62410-33110-B1iACV30,MCV3#..NAP200512-200602

LIGHT GRAY,TRIM9#,(J)

main62410-AA020-A0iMCV30..NAP..SE..5FC200107-200309

IVORY,TRIM4#

main62410-AA020-B0iACV30,MCV3#..NAP200406-200512

LIGHT GRAY,TRIM9#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62420-33110-A1iACV30,MCV3#..NAP200512-200602

IVORY,TRIM4#,(J)

main62420-33110-B1iACV30,MCV3#..NAP200512-200602

LIGHT GRAY,TRIM9#,(J)

main62420-AA020-A0iACV30,MCV3#..NAP200406-200512

IVORY,TRIM4#

main62420-AA020-B0iACV30,MCV3#..NAP200406-200512

LIGHT GRAY,TRIM9#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-33050-B0iACV30,MCV30..NAP..(LE,XLE)200512-200602

STONE,TRIM9#,(J)

main62413-33050-B1iACV30,MCV31..NAP..SE200512-200602

DK.GRAY,TRIM9#,(J)

main62413-33050-E0iACV30,MCV3#..NAP200512-200602

FAWN,TRIM4#,(J)

main62413-AA020-B0iMCV30..NAP..(LE,XLE)200107-200301

STONE,TRIM1#

main62413-AA020-B1iMCV30..NAP..SE..5FC200107-200309

DK.GRAY,TRIM1#

main62413-AA020-E0iMCV30..NAP200107-200301

FAWN,TRIM4#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-33050-B0iACV30,MCV30..NAP..(LE,XLE)200512-200602

STONE,TRIM9#,(J)

main62414-33050-B1iACV30,MCV31..NAP..SE200512-200602

DK.GRAY,TRIM9#,(J)

main62414-33050-E0iACV30,MCV3#..NAP200512-200602

FAWN,TRIM4#,(J)

main62414-AA020-B0iMCV30..NAP..(LE,XLE)200107-200301

STONE,TRIM1#

main62414-AA020-B1iMCV30..NAP..SE200107-200301

DK.GRAY,TRIM1#

main62414-AA020-E0iACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

FAWN,TRIM4#

62471AGARNISH, ROOF SIDE, INNER RH

main62470-AA030-A1iMCV30..NAP..SE..5FC200107-200309

IVORY,TRIM4#

main62470-AA030-B1iACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

LIGHT GRAY,TRIM1#

main62470-AA040-A1iACV30,MCV3#..NAP200406

W(SRS CURTAIN SHIELD AIR BAG),IVORY,TRIM4#

main62470-AA040-B1iMCV30..NAP..SE..5FC200107-200309

W(SRS CURTAIN SHIELD AIR BAG),LIGHT GRAY,TRIM1#

62472AGARNISH, ROOF SIDE, INNER LH

main62480-AA030-A1iMCV30..NAP200107-200301

IVORY,TRIM4#

main62480-AA030-B1iMCV30..NAP..SE..5FC200107-200309

LIGHT GRAY,TRIM1#

main62480-AA040-A1iACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

W(SRS CURTAIN SHIELD AIR BAG),IVORY,TRIM4#

main62480-AA040-B1iACV30,MCV3#..NAP200406

W(SRS CURTAIN SHIELD AIR BAG),LIGHT GRAY,TRIM9#

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-AA010×2iACV30,MCV3#..NAP200107-200406

62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62566-32010×4iACV30,MCV3#..NAP200107-200406

67913PLATE, FRONT DOOR SCUFF, RH

main67913-33030-B0iACV30,MCV30..NAP..(LE,XLE)200512-200602

STONE,TRIM9#,(J)

main67913-33030-B1iACV30,MCV31..NAP..SE200512-200602

DK.GRAY,TRIM9#,(J)

main67913-33030-E0iACV30,MCV3#..NAP200512-200602

FAWN,TRIM4#,(J)

main67913-AA040-B0iACV30,MCV30..NAP..(LE,XLE)200512-200602

STONE,TRIM9#,(L)

main67913-AA040-B1iACV30,MCV31..NAP..SE200107-200406

DK.GRAY,TRIM1#

main67913-AA040-E0iACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

FAWN,TRIM4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-33030-B0iACV30,MCV30..NAP..(LE,XLE)200512-200602

STONE,TRIM9#,(J)

main67914-33030-B1iACV30,MCV31..NAP..SE200512-200602

DK.GRAY,TRIM9#,(J)

main67914-33030-E0iACV30,MCV3#..NAP200512-200602

FAWN,TRIM4#,(J)

main67914-AA030-B0iACV30,MCV30..NAP..(LE,XLE)200406-200512

STONE,TRIM9#

main67914-AA030-B1iMCV30..NAP..SE200107-200301

DK.GRAY,TRIM1#

main67914-AA030-E0iACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

FAWN,TRIM4#

67917APLATE, REAR DOOR SCUFF, RH

main67917-33020-B0iACV30,MCV30..NAP..(LE,XLE)200512-200602

STONE,TRIM9#,(J)

main67917-33020-B1iACV30,MCV31..NAP..SE200512-200602

DK.GRAY,TRIM9#,(J)

main67917-33020-E0iACV30,MCV3#..NAP200512-200602

FAWN,TRIM4#,(J)

main67917-AA020-B0iACV30,MCV30..NAP..(LE,XLE)200512-200602

STONE,TRIM9#,(L)

main67917-AA020-B1iMCV30..NAP..SE..5FC200107-200309

DK.GRAY,TRIM1#

main67917-AA020-E0iACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

FAWN,TRIM4#

67918APLATE, REAR DOOR SCUFF, LH

main67918-33020-B0iACV30,MCV30..NAP..(LE,XLE)200512-200602

STONE,TRIM9#,(J)

main67918-33020-B1iACV30,MCV31..NAP..SE200512-200602

DK.GRAY,TRIM9#,(J)

main67918-33020-E0iACV30,MCV3#..NAP200512-200602

FAWN,TRIM4#,(J)

main67918-AA020-B0iMCV30..NAP..(LE,XLE)200107-200301

STONE,TRIM1#

main67918-AA020-B1iACV30,MCV31..NAP..SE200406-200512

DK.GRAY,TRIM9#

main67918-AA020-E0iMCV30..NAP200107-200301

FAWN,TRIM4#

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

6777133040WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-33040

75867AA010MOULDING, FRONT PANEL

main75867-AA010

9008011628

main90080-11628

9008446036

main90084-46036

90109A0029

main90109-A0029

90109A0030

main90109-A0030

9046706165

main90467-06165

9046709204

main90467-09204

9046710161

main90467-10161

9046710188

main90467-10188

35 parts on this diagram · 1 diagram in section
