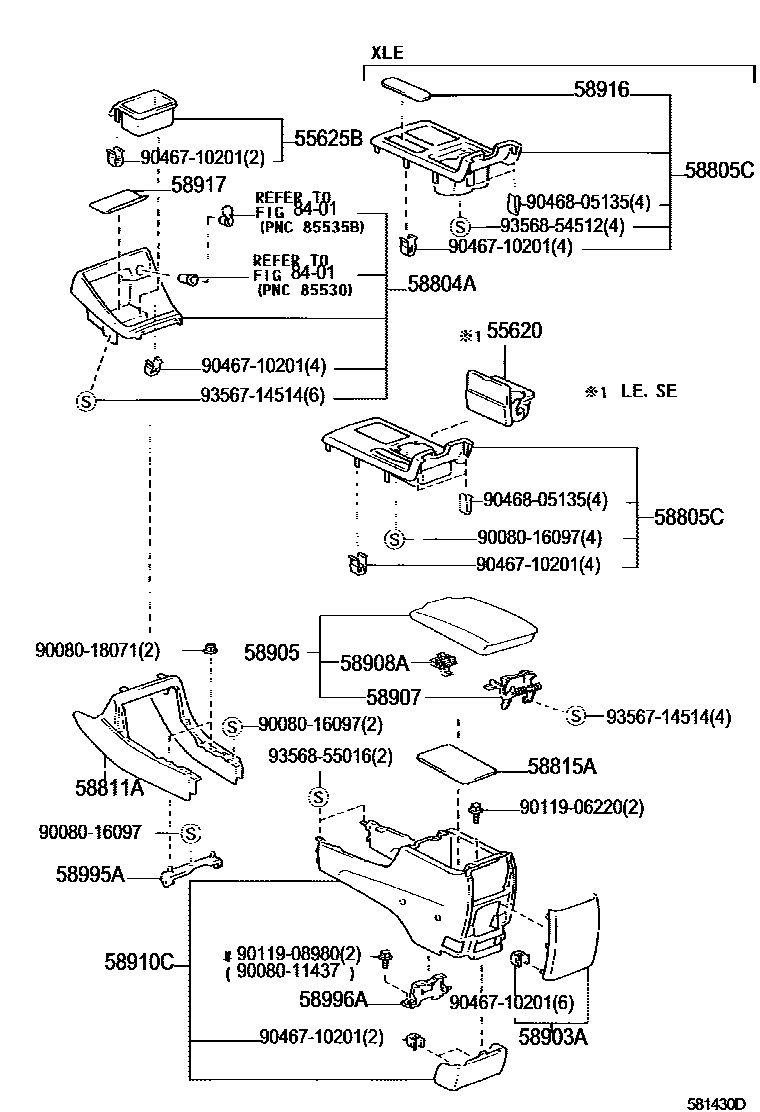

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1

55620HOLDER ASSY, INSTRUMENT PANEL CUP

main55620-AA010iACV30,MCV3#..NAP..(LE,SE)200107-200406

55625BTRAY, INSTRUMENT PANEL CUP HOLDER

main55625-AA020iACV30,MCV3#..NAP200107-200406

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-06020iACV30,MCV3#..NAP..(LE,SE)200406

sub58804-33590

sub58802-33031

sub58831-33060

sub58831-33070

main58804-06050iACV30,MCV30..NAP..XLE200406

sub58804-33600

sub58802-33041

sub58831-33080

sub58831-33090

main58804-33570iACV30,MCV3#..NAP..(LE,SE)200406

W(ASH RECEPTACLE)

main58804-33580iACV30,MCV30..NAP..XLE200406

W(ASH RECEPTACLE)

main58804-AA010iACV30,MCV3#..NAP..(LE,SE)200107-200406

sub58821-33330

sub58823-33010

sub58831-33020

sub85530-33020

sub85535-26050

sub90167-A0006

sub90467-10201

sub93567-14514

main58804-AA050iACV30,MCV3#..NAP..SE200107-200406

W(SEAT HEATER)

sub58821-33340

sub58823-33020

sub58831-33030

sub85530-33020

sub85535-26050

sub90167-A0006

sub90467-10201

sub93567-14514

main58804-AA060iACV30,MCV30..NAP..XLE200107-200406

sub58821-33340

sub58823-33010

sub58831-33020

sub85530-33020

sub85535-26050

sub90167-A0006

sub90467-10201

sub93567-14514

main58804-AA070iACV30,MCV30..NAP..XLE200107-200406

W(SEAT HEATER)

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-33021iACV30,MCV3#..NAP..(LE,SE)200512

(J)

main58805-33050iACV30,MCV30..NAP..XLE200512

(J)

main58805-AA010iACV30,MCV3#..NAP..(LE,SE)200107-200512

sub58805-33021

main58805-AA010iACV30,MCV3#..NAP..(LE,SE)200512

(L)

sub58805-33021

main58805-AA020iACV30,MCV30..NAP..XLE200512

(L)

main58805-AA020iACV30,MCV30..NAP..XLE200107-200512

58811ABOX, CONSOLE, FRONT

main58811-06040-B0iACV30,MCV30..NAP..(LE,XLE)200512-200602

STONE,TRIM9#,(L)

sub58811-33090

main58811-06040-B0iACV30,MCV30..NAP..(LE,XLE)200406-200512

STONE,TRIM9#

sub58811-33090

main58811-06040-B1iACV30,MCV31..NAP..SE200406-200512

DK.GRAY,TRIM9#

sub58811-33090

main58811-06040-B1iACV30,MCV31..NAP..SE200512-200602

DK.GRAY,TRIM9#,(L)

sub58811-33090

main58811-06040-E0iACV30,MCV3#..NAP200512-200602

FAWN,TRIM4#,(L)

sub58811-33090

main58811-06040-E0iACV30,MCV3#..NAP200406-200512

FAWN,TRIM4#

sub58811-33090

main58811-33090-B0iACV30,MCV30..NAP..(LE,XLE)200512-200602

STONE,TRIM9#,(J)

sub58811-33090

main58811-33090-B1iACV30,MCV31..NAP..SE200512-200602

DK.GRAY,TRIM9#,(J)

sub58811-33090

main58811-33090-E0iACV30,MCV3#..NAP200512-200602

FAWN,TRIM4#,(J)

sub58811-33090

main58811-AA020-B0iACV30..NAP..(LE,XLE);MCV30..NAP..(LE,XLE)..5FC200107-200406

STONE,TRIM1#

main58811-AA020-B1iMCV30..NAP..SE200107-200406

DK.GRAY,TRIM1#

main58811-AA020-E0iACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

FAWN,TRIM4#

58815ACARPET, CONSOLE BOX

main58815-AA020iACV30,MCV3#..NAP200107-200406

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-33040-B0iACV30,MCV30..NAP..LE200512-200602

STONE,TRIM9#,(J)

sub58903-33040

main58903-33040-B1iACV30,MCV31..NAP..SE200512-200602

DK.GRAY,TRIM9#,(J)

sub58903-33040

main58903-33040-E0iACV30,MCV3#..NAP..(LE,SE)200512-200602

FAWN,TRIM4#,(J)

sub58903-33040

main58903-33050-B0iACV30,MCV30..NAP..XLE200512-200602

STONE,TRIM9#,(J)

sub58903-33050

main58903-33050-E0iACV30,MCV30..NAP..XLE200512-200602

FAWN,TRIM4#,(J)

sub58903-33050

main58903-AA020-B0iACV30,MCV30..NAP..LE200512-200602

STONE,TRIM9#,(L)

main58903-AA020-B0iMCV30..NAP..LE200107-200406

STONE,TRIM1#

main58903-AA020-B0iACV30,MCV30..NAP..LE200406-200512

STONE,TRIM9#

main58903-AA020-B1iACV30,MCV31..NAP..SE200107-200406

DK.GRAY,TRIM1#

main58903-AA020-B1iACV30,MCV31..NAP..SE200512-200602

DK.GRAY,TRIM9#,(L)

main58903-AA020-B1iACV30,MCV31..NAP..SE200406-200512

DK.GRAY,TRIM9#

main58903-AA020-E0iACV30,MCV3#..NAP..(LE,SE)200512-200602

FAWN,TRIM4#,(L)

main58903-AA020-E0iACV30,MCV3#..NAP..(LE,SE)200107-200512

FAWN,TRIM4#

main58903-AA030-B0iACV30,MCV30..NAP..XLE200512-200602

STONE,TRIM9#,(L)

sub58903-33050

main58903-AA030-B0iMCV30..NAP..XLE200107-200406

STONE,TRIM1#

sub58903-33050

main58903-AA030-B0iACV30,MCV30..NAP..XLE200406-200512

STONE,TRIM9#

sub58903-33050

main58903-AA030-E0iACV30..NAP..XLE;MCV30..NAP..XLE..5FC200107-200512

FAWN,TRIM4#

sub58903-33050

main58903-AA030-E0iACV30,MCV30..NAP..XLE200512-200602

FAWN,TRIM4#,(L)

sub58903-33050

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-AA020-B0iACV30,MCV30..NAP..(LE,XLE)200406

FABRIC SEAT,STONE,TRIM9#

main58905-AA020-B0iMCV30..NAP..(LE,XLE)200107-200406

FABRIC SEAT,STONE,TRIM1#

main58905-AA020-B1iMCV30..NAP..SE..5FC200107-200406

FABRIC SEAT,DK.GRAY,TRIM1#

main58905-AA020-B1iACV30,MCV31..NAP..SE200406

FABRIC SEAT,DK.GRAY,TRIM9#

main58905-AA020-E0iMCV30..NAP..SE..5FC200107-200406

FABRIC SEAT,FAWN,TRIM4#

main58905-AA030-B0iACV30..NAP..XLE;MCV30..NAP..XLE..5FC200107-200406

LEATHER SEAT,STONE,TRIM1#

sub58905-AA031

main58905-AA030-B1iMCV30..NAP..SE200107-200406

LEATHER SEAT,DK. GRAY,TRIM1#

sub58905-AA031

main58905-AA030-B3iACV30,MCV31..NAP..SE200406

DK.GRAY,TRIM9#

sub58905-AA031

main58905-AA030-B4iACV30,MCV30..NAP..XLE200406

STONE,TRIM9#

sub58905-AA031

main58905-AA030-E0iMCV30..NAP..SE..5FC200107-200406

LEATHER SEAT,FAWN,TRIM4#

sub58905-AA031

main58905-AA030-E1iACV30,MCV3#..NAP..(SE,XLE)200406

FAWN,TRIM4#

sub58905-AA031

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-AA020iACV30,MCV3#..NAP200107-200406

FABRIC SEAT

main58907-AA030iACV30,MCV3#..NAP..(SE,XLE)200107-200406

LEATHER SEAT

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-32050iACV30,MCV3#..NAP200107-200406

58910CBOX ASSY, CONSOLE, REAR

main58910-AA030-B0iMCV30..NAP..LE200107-200406

STONE,TRIM1#

main58910-AA030-B0iACV30,MCV30..NAP..LE200406-200602

STONE,TRIM9#

main58910-AA030-B1iACV30,MCV31..NAP..SE200406-200602

DK.GRAY,TRIM9#

main58910-AA030-B1iACV30,MCV31..NAP..SE200107-200406

DK.GRAY,TRIM1#

main58910-AA030-E0iMCV30..NAP..(LE,SE)200107-200602

FAWN,TRIM4#

main58910-AA040-B0iMCV30..NAP..XLE200107-200406

STONE,TRIM1#

main58910-AA040-B0iACV30,MCV30..NAP..XLE200406-200602

STONE,TRIM9#

main58910-AA040-E0iACV30..NAP..XLE;MCV30..NAP..XLE..5FC200107-200602

FAWN,TRIM4#

58916MAT, BOX BOTTOM

main58916-AA020iACV30,MCV30..NAP..XLE200107-200406

58917MAT, BOX BOTTOM, NO.2

main58917-AA010iACV30,MCV3#..NAP200107-200406

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-AA020iACV30,MCV3#..NAP200107-200602

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-AA020iACV30,MCV3#..NAP200107-200602

8401

9008011437

main90080-11437

9008016097

main90080-16097

9008018071

main90080-18071

9011906220

main90119-06220

9011908980

main90119-08980

9046710201

main90467-10201

9046805135

main90468-05135

9356714514

main93567-14514

9356854512

main93568-54512

9356855016

main93568-55016

26 parts on this diagram · 3 diagrams in section
