MAT & CARPET

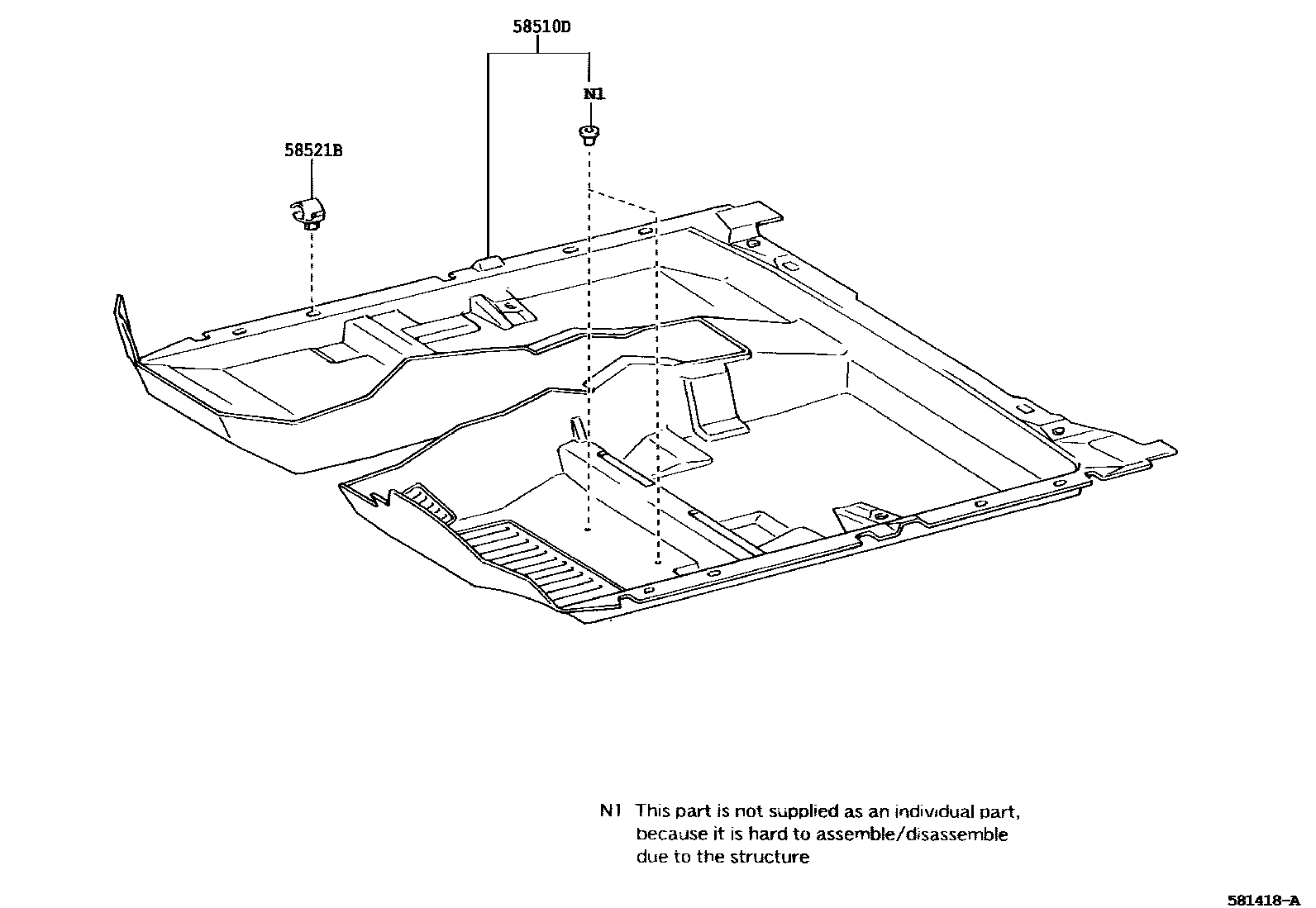

58510DCARPET ASSY, FLOOR, FRONT

main58510-AA050-B0iMCV30..NAP..(LE,XLE)200107-200301

STONE FLOOR CARPET,TRIM1#

main58510-AA050-B1iMCV30..NAP..SE..5FC200107-200309

DK. GRAY FLOOR CARPET,TRIM1#

main58510-AA050-E0iACV30,MCV3#..NAP200406

FAWN FLOOR CARPET,TRIM4#

58521BHOOK, FLOOR CARPET

main58521-AA010×6iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

2 parts on this diagram · 1 diagram in section
