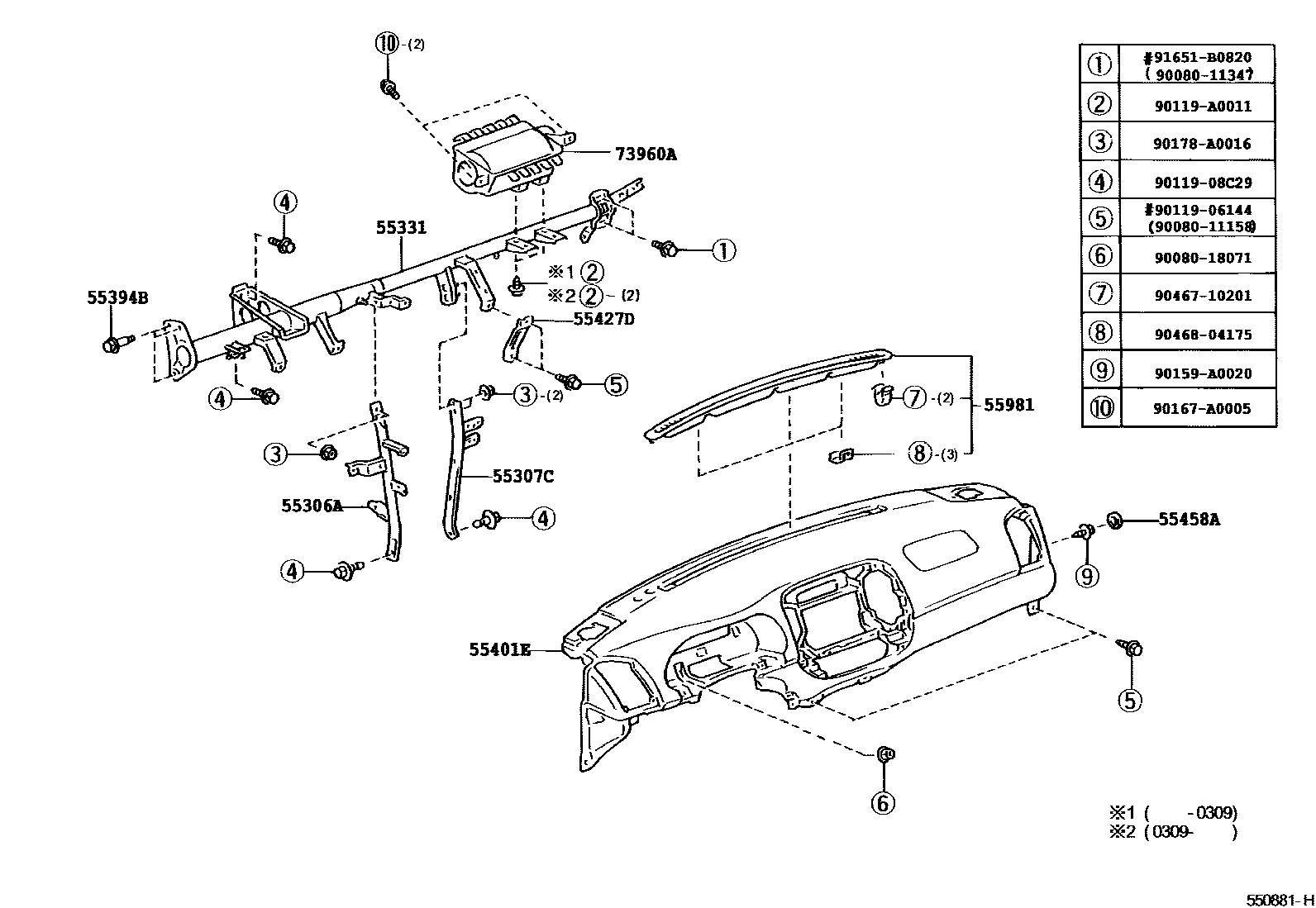

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-06020iACV30..NAP..4FC; MCV3#..NAP200309-200406

main55306-06030iACV30,MCV30..NAP200107-200309

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-06040iACV30..NAP..4FC; MCV3#..NAP200309-200406

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-06060iACV30,MCV30..NAP200107-200309

main55330-06100iACV30..NAP..4FC; MCV3#..NAP200309-200406

main55330-06110iACV30..NAP..4FC; MCV3#..NAP200309-200406

W(ADJUSTABLE PEDAL)

main55330-06120iACV30,MCV3#..NAP200406

main55330-06130iACV30,MCV3#..NAP200406

W(ADJUSTABLE PEDAL)

55394BBOLT, INSTRUMENT PANEL

main55394-33020×3iACV30..NAP..4FC; MCV3#..NAP200309-200406

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-AA040-B2iMCV30..NAP..(LE,XLE)200107-200301

DK.CHARCOAL,TRIM1#

main55401-AA040-B3iMCV30..NAP..SE200107-200301

DK.GRAY,TRIM1#

main55401-AA040-B4iACV30,MCV31..NAP..SE200406

DK.GRAY,TRIM4#

main55401-AA040-E1iACV30,MCV30..NAP..(LE,XLE)200406

SANDAL WOOD,TRIM4#

55427DRETAINER, INSTRUMENT FINISH PANEL, LOWER, NO.1

main55427-06040iACV30,MCV30..NAP200107-200309

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-33090-B0iACV30,MCV30..NAP..(LE,XLE)200406

DK.CHARCOAL,TRIM9#

main55458-33090-B1iMCV30..NAP..SE200107-200301

DK.GRAY,TRIM1#,4#

main55458-33090-E0iMCV30..NAP..(LE,XLE)200107-200301

SANDAL WOOD,TRIM4#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-AA050iMCV30..NAP200107-200301

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-06030iMCV30..NAP200107-200301

main73960-06090iACV30,MCV3#..NAP200309-200406

main73960-06091iACV30,MCV3#..NAP200506

9008011158

main90080-11158

9008011347

main90080-11347

9008018071

main90080-18071

9011906144

main90119-06144

9011908C29

main90119-08C29

90119A0011

main90119-A0011

90159A0020

main90159-A0020

90167A0005

main90167-A0005

90178A0016

main90178-A0016

9046710201

main90467-10201

9046804175

main90468-04175

91651B0820

main91651-B0820

21 parts on this diagram · 2 diagrams in section
