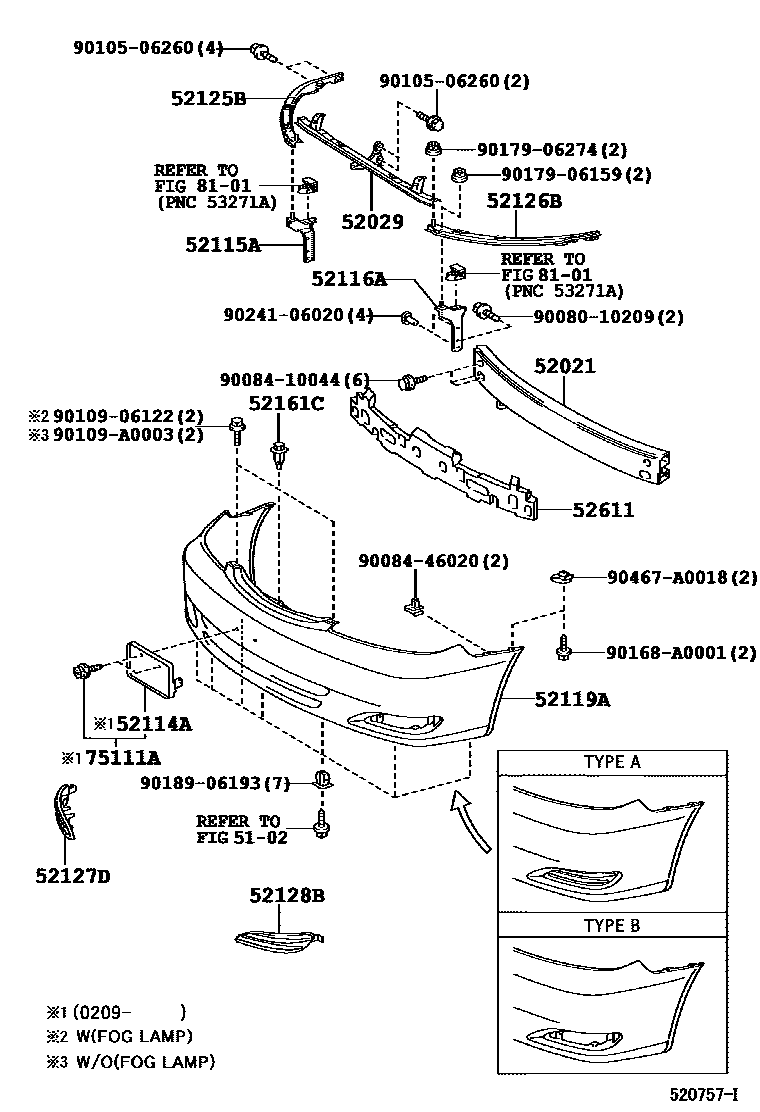

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-AA020iACV30,MCV30..NAP200107-200309

main52021-AA040iACV30,MCV3#..NAP200309-200406

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-AA030iACV30,MCV3#..NAP200107-200406

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main75111-AA020iACV30,MCV3#..NAP200209-200406

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-AA020iMCV30..NAP200107-200301

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-AA020iACV30,MCV3#..NAP200406

52119ACOVER, FRONT BUMPER

main52119-06908iACV30,MCV30..NAP..(LE,XLE); ACV30,MCV31..NAP..SE200406

TYPE B:REFER ILLUST.

main52119-06909iACV30,MCV30..NAP..(LE,XLE)200406

TYPE A:REFER ILLUST.

main52119-AA904iACV30,MCV30..NAP..(LE,XLE)200107-200406

TYPE A:REFER ILLUST.

main52119-AA905iACV30,MCV3#..NAP..(SE,XLE)200107-200406

TYPE B:REFER TO ILLUSTRATION

52125BEXTENSION, FRONT BUMPER REINFORCEMENT, RH

main52125-AA020iMCV30..NAP200107-200301

52126BEXTENSION, FRONT BUMPER REINFORCEMENT, LH

main52126-AA020iMCV30..NAP..SE..5FC200107-200309

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-06030-A0iACV30,MCV30..NAP..(LE,XLE)200406

SUPER WHITE 2,040

main52127-06030-B0iACV30,MCV30..NAP..(LE,XLE)200406

SILVER ME.,1C8

main52127-06030-B1iACV30,MCV30..NAP..(LE,XLE)200406

GRAY M.M.,1E3

main52127-06030-C0iACV30,MCV30..NAP..(LE,XLE)200406

BLACK,202

main52127-06030-D0iACV30,MCV30..NAP..(LE,XLE)200406

DK. RED M.M.,3Q3

main52127-06030-E0iACV30,MCV30..NAP..(LE,XLE)200406

BEIGE M. M.,4Q2

main52127-06030-G0iACV30,MCV30..NAP..(LE,XLE)200406

GRAYISH GREEN M.M.OP.,6R6

main52127-06030-G1iACV30,MCV30..NAP..(LE,XLE)200406

DK. GREEN MC.,6S7

main52127-06030-J0iACV30,MCV30..NAP..(LE,XLE)200406

DK.BLUE M.M.,8P4

main52127-06030-J1iACV30,MCV30..NAP..(LE,XLE)200406

LT.BLUE ME.,8S4

main52127-AA010-A0iMCV30..NAP..(LE,XLE)200107-200301

SUPER WHITE 2,040

main52127-AA010-B0iMCV30..NAP..(LE,XLE)200107-200301

SILVER ME.,1C8

main52127-AA010-B1iACV30..NAP..(LE,XLE);MCV30..NAP..(LE,XLE)..5FC200107-200406

GRAY M.M.,1E3

main52127-AA010-C0iACV30..NAP..(LE,XLE);MCV30..NAP..(LE,XLE)..5FC200107-200406

BLACK,202

main52127-AA010-D0iMCV30..NAP..(LE,XLE)200107-200301

DK. RED MC.,3P5

main52127-AA010-D1iMCV30..NAP..(LE,XLE)200107-200301

DK. RED M.M.,3Q3

main52127-AA010-E0iACV30..NAP..(LE,XLE);MCV30..NAP..(LE,XLE)..5FC200107-200406

BEIGE M. M.,4Q2

main52127-AA010-G0iMCV30..NAP..(LE,XLE)200107-200301

DK. GREEN MC.,6S7

main52127-AA010-J0iACV30..NAP..(LE,XLE);MCV30..NAP..(LE,XLE)..5FC200107-200406

DK.BLUE MC.,8Q0

main52127-AA010-J1iACV30..NAP..(LE,XLE);MCV30..NAP..(LE,XLE)..5FC200107-200406

BLUE M.M.,8Q2

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-06030-A0iACV30,MCV30..NAP..(LE,XLE)200406

SUPER WHITE 2,040

main52128-06030-B0iACV30,MCV30..NAP..(LE,XLE)200406

SILVER ME.,1C8

main52128-06030-B1iACV30,MCV30..NAP..(LE,XLE)200406

GRAY M.M.,1E3

main52128-06030-C0iACV30,MCV30..NAP..(LE,XLE)200406

BLACK,202

main52128-06030-D0iACV30,MCV30..NAP..(LE,XLE)200406

DK. RED M.M.,3Q3

main52128-06030-E0iACV30,MCV30..NAP..(LE,XLE)200406

BEIGE M. M.,4Q2

main52128-06030-G0iACV30,MCV30..NAP..(LE,XLE)200406

GRAYISH GREEN M.M.OP.,6R6

main52128-06030-G1iACV30,MCV30..NAP..(LE,XLE)200406

DK. GREEN MC.,6S7

main52128-06030-J0iACV30,MCV30..NAP..(LE,XLE)200406

DK.BLUE M.M.,8P4

main52128-06030-J1iACV30,MCV30..NAP..(LE,XLE)200406

LT.BLUE ME.,8S4

main52128-AA010-A0iACV30..NAP..(LE,XLE);MCV30..NAP..(LE,XLE)..5FC200107-200406

SUPER WHITE 2,040

main52128-AA010-B0iACV30..NAP..(LE,XLE);MCV30..NAP..(LE,XLE)..5FC200107-200406

SILVER ME.,1C8

main52128-AA010-B1iMCV30..NAP..(LE,XLE)200107-200301

GRAY M.M.,1E3

main52128-AA010-C0iACV30..NAP..(LE,XLE);MCV30..NAP..(LE,XLE)..5FC200107-200406

BLACK,202

main52128-AA010-D0iACV30..NAP..(LE,XLE);MCV30..NAP..(LE,XLE)..5FC200107-200406

DK. RED MC.,3P5

main52128-AA010-D1iACV30..NAP..(LE,XLE);MCV30..NAP..(LE,XLE)..5FC200107-200406

DK. RED M.M.,3Q3

main52128-AA010-E0iACV30..NAP..(LE,XLE);MCV30..NAP..(LE,XLE)..5FC200107-200406

BEIGE M. M.,4Q2

main52128-AA010-G0iACV30..NAP..(LE,XLE);MCV30..NAP..(LE,XLE)..5FC200107-200406

DK. GREEN MC.,6S7

main52128-AA010-J0iACV30..NAP..(LE,XLE);MCV30..NAP..(LE,XLE)..5FC200107-200406

DK.BLUE MC.,8Q0

main52128-AA010-J1iACV30..NAP..(LE,XLE);MCV30..NAP..(LE,XLE)..5FC200107-200406

BLUE M.M.,8Q2

52161CPIECE, FRONT BUMPER

main52161-02020iACV30,MCV3#..NAP200107-200406

52611ABSORBER, FRONT BUMPER ENERGY

main52611-AA040iACV30,MCV3#..NAP200107-200406

75111ABRACKET, FRONT LICENSE PLATE

main75101-06010iACV30,MCV3#..NAP200406

main75101-AA040iACV30,MCV3#..NAP200209-200406

8101HEADLAMP

→ Go to FIG 81-01

9008010209

main90080-10209

9008410044

main90084-10044

9008446020

main90084-46020

9010506260

main90105-06260

9010906122

main90109-06122

90109A0003

main90109-A0003

90168A0001

main90168-A0001

9017906159

main90179-06159

9017906274

main90179-06274

9018906193

main90189-06193

9024106020

main90241-06020

90467A0018

main90467-A0018

27 parts on this diagram · 2 diagrams in section
