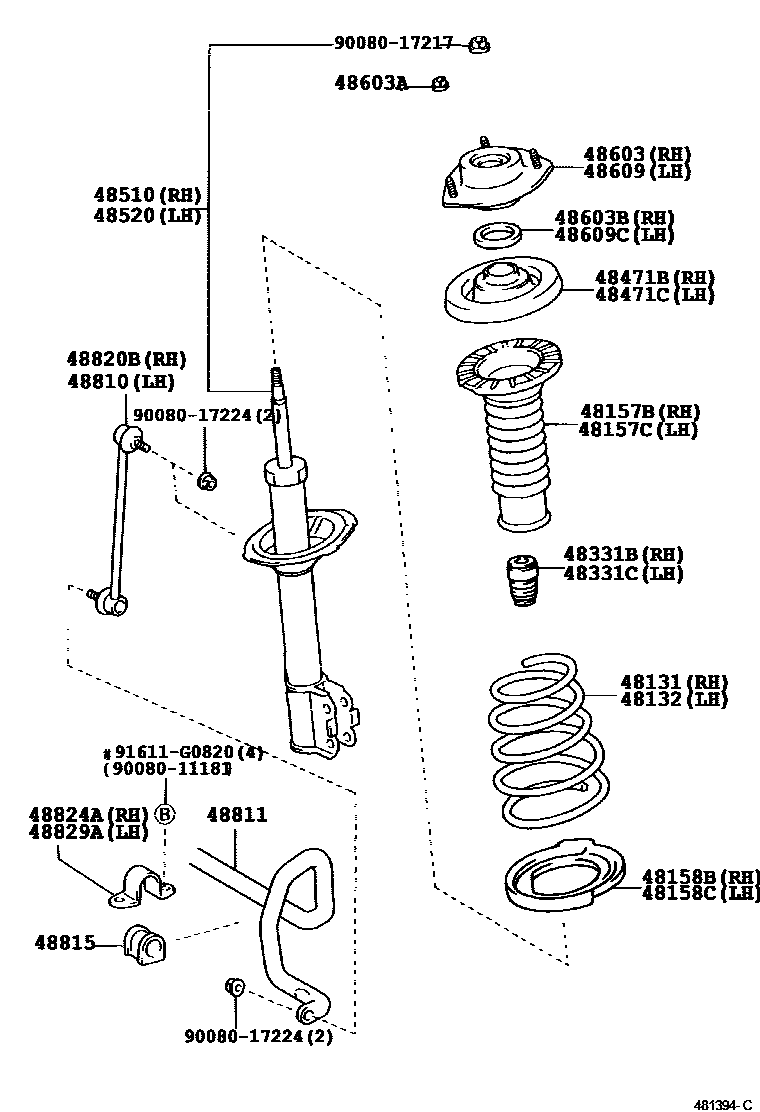

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-AA120iACV30..NAP..(LE,XLE)200107-200309

L=366

main48131-AA140iACV30..NAP..SE200107-200309

L=352.5

main48131-AA150iMCV30..NAP..(LE,XLE)..5FC200107-200309

L=373

main48131-AA160iMCV30..NAP..SE200107-200309

L=359.5

main48131-AA210iMCV30..NAP..XLE..5FC200202-200309

L=374

main48131-AA220iACV30..NAP..LE200202-200309

MEXICO SPEC,L=366

main48131-AA330iACV30..NAP..(LE,XLE)200309-200406

L=348

main48131-AA331iACV30..NAP..(LE,XLE)200406

L=348

main48131-AA340iACV30..NAP..SE200309-200406

L=334.5

main48131-AA341iACV30..NAP..SE200406

L=334.5

main48131-AA350iMCV30..NAP200309-200406

L=355

main48131-AA351iMCV30..NAP200406

L=355

main48131-AA360iMCV31..NAP200309-200406

L=341.5

main48131-AA361iMCV31..NAP200406

L=341.5

main48131-AA370iMCV30..NAP..XLE200309-200406

L=356

main48131-AA371iMCV30..NAP..XLE200406

MEXICO SPEC,L=356

main48131-AA380iACV30..NAP..LE200309-200406

MEXICO SPEC,L=355.5

main48131-AA381iACV30..NAP..(LE,XLE)200406

MEXICO SPEC,L=355.5

48132SPRING, FRONT COIL, LH

main48131-AA120iACV30..NAP..(LE,XLE)200107-200309

L=366

main48131-AA140iACV30..NAP..SE200107-200309

L=352.5

main48131-AA150iMCV30..NAP..(LE,XLE)..5FC200107-200309

L=373

main48131-AA160iMCV30..NAP..SE..5FC200107-200309

L=359.5

main48131-AA210iMCV30..NAP..XLE200202-200309

L=374

main48131-AA220iACV30..NAP..LE200202-200309

MEXICO SPEC,L=366

main48131-AA330iACV30..NAP..(LE,XLE)200309-200406

L=348

main48131-AA331iACV30..NAP..(LE,XLE)200406

L=348

main48131-AA340iACV30..NAP..SE200309-200406

L=334.5

main48131-AA341iACV30..NAP..SE200406

L=334.5

main48131-AA350iMCV30..NAP200309-200406

L=355

main48131-AA351iMCV30..NAP200406

L=355

main48131-AA360iMCV31..NAP200309-200406

L=341.5

main48131-AA361iMCV31..NAP200406

L=341.5

main48131-AA370iMCV30..NAP..XLE200309-200406

L=356

main48131-AA371iMCV30..NAP..XLE200406

MEXICO SPEC,L=356

main48131-AA380iACV30..NAP..LE200309-200406

MEXICO SPEC,L=355.5

main48131-AA381iACV30..NAP..(LE,XLE)200406

MEXICO SPEC,L=355.5

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-06040iACV30,MCV30..NAP200107-200111

main48157-06080iACV30,MCV30..NAP200112-200309

main48157-06081iACV30,MCV3#..NAP200309-200312

main48157-06082iACV30,MCV3#..NAP200401-200406

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-06040iACV30,MCV30..NAP200107-200111

main48157-06080iACV30,MCV30..NAP200112-200309

main48157-06081iACV30,MCV3#..NAP200309-200312

main48157-06082iACV30,MCV3#..NAP200401-200406

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-33031iACV30,MCV3#..NAP200309-200406

(J)

main48158-AA020iMCV30..NAP200107-200309

main48158-AA030iACV30,MCV3#..NAP200309-200406

(L)

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-33031iACV30,MCV3#..NAP200309-200406

(J)

main48158-AA020iMCV30..NAP200107-200309

main48158-AA030iACV30,MCV3#..NAP200309-200406

(L)

48331BBUMPER, FRONT SPRING, RH

main48331-AA010iMCV30..NAP..SE..5FC200107-200406

48331CBUMPER, FRONT SPRING, LH

main48331-AA010iMCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-06030iACV30,MCV3#..NAP200107-200402

main48471-AA010iMCV30..NAP..LE;ACV30..NAP..(LE,XLE)..5FC200403-200406

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-06030iACV30,MCV3#..NAP200107-200402

main48471-AA010iMCV30..NAP..LE;ACV30..NAP..(LE,XLE)..5FC200403-200406

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-A9190iACV30,MCV30..NAP..(LE,XLE)200107-200309

MARK 48510-AA040

main48510-A9200iACV30,MCV30..NAP..SE200107-200309

MARK 48510-AA070

main48510-A9390iACV30,MCV30..NAP..(LE,XLE)200309-200406

MARK 48510-AA130

main48510-A9400iACV30,MCV31..NAP..SE200309-200406

MARK 48510-AA140

main48510-A9620iACV30,MCV31..NAP..SE200406

MARK 48510-AA160

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-A9110iACV30,MCV30..NAP..(LE,XLE)200107-200309

MARK 48520-AA040

main48520-A9120iACV30,MCV30..NAP..SE200107-200309

MARK 48520-AA070

main48520-A9250iACV30,MCV30..NAP..(LE,XLE)200309-200406

MARK 48520-AA130

main48520-A9260iACV30,MCV31..NAP..SE200309-200406

MARK 48520-AA140

main48520-A9330iACV30,MCV31..NAP..SE200406

MARK 48520-AA140

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-06090iACV30,MCV3#..NAP200107-200406

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90080-17225iACV30..NAP..(LE,XLE)200309-200406

main90178-10017iMCV30..NAP..SE;ACV30..NAP..SE..4FC200107-200501

main90178-10018iACV30,MCV30..NAP..(LE,XLE)..4FC200107-200309

main90178-A0004iMCV30..NAP;ACV30,MCV31..NAP..SE200501

48603BBEARING(FOR FRONT SUSPENSION SUPPORT RH)

main90080-36070iACV30,MCV3#..NAP200107-200406

main90903-63014iACV30,MCV3#..NAP200406-200602

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-06090iACV30,MCV3#..NAP200107-200406

48609CBEARING(FOR FRONT SUSPENSION SUPPORT LH)

main90080-36070iACV30,MCV3#..NAP200107-200406

main90903-63014iACV30,MCV3#..NAP200406-200602

48810LINK ASSY, FRONT STABILIZER, LH

main48820-06040iMCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

48811BAR, STABILIZER, FRONT

main48811-AA020iACV30..NAP..(LE,XLE)200107-200406

main48811-AA060iMCV30..NAP;ACV30,MCV31..NAP..SE200202-200406

MEXICO SPEC

main48811-AA060iMCV30..NAP;ACV30..NAP..SE200107-200202

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-06080iACV30..NAP..(LE,XLE)..4FC200107-200406

main48815-06090iMCV3#..NAP200107-200310

main48815-06090iACV30..NAP..4FC200202-200406

MEXICO SPEC

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-06040iMCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-06020iMCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-06020iMCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

9008011181

main90080-11181

9008017217

main90080-17217

9008017224

main90080-17224

91611G0820

main91611-G0820

27 parts on this diagram · 1 diagram in section
