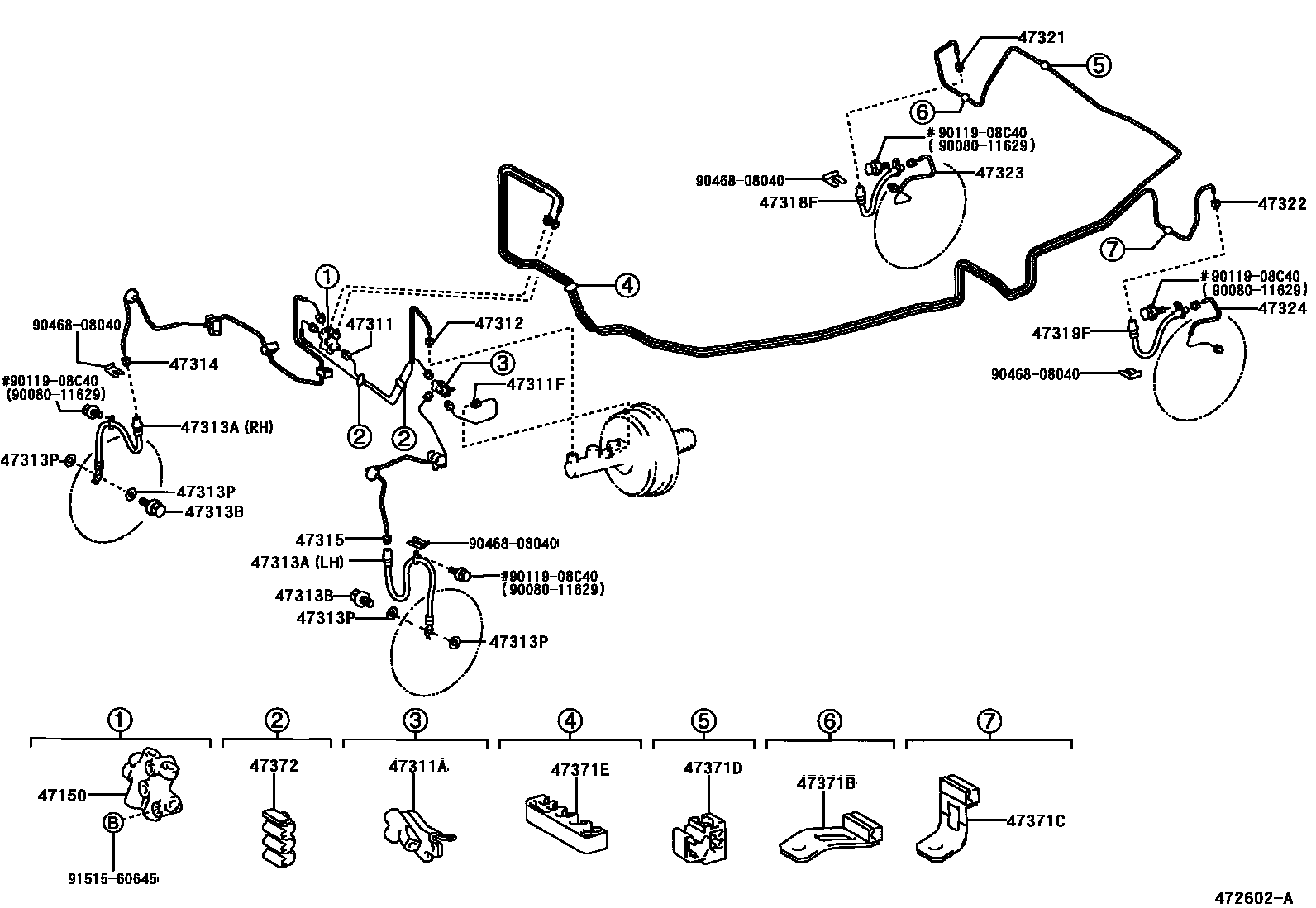

BRAKE TUBE & CLAMP

0001 1 0002 1W(ABS) 0003 1W(ABS) 0004 1W(VSC) 0005 1W(VSC) 0006 1W(ABS) 0007 1W(ABS) 0008 1W(VSC) 0009 1W(VSC)

47150VALVE ASSY, PROPORTIONING

main47150-16050iACV30..NAP..(LE,SE)..4FC200107-200406

47311TUBE, FRONT BRAKE, NO.1

main47311-06040iACV30,MCV30..NAP200107-200309

W(ABS)

main47311-06041iACV30..NAP..4FC; MCV3#..NAP200309-200406

W(ABS)

main47311-06050iACV30..NAP..(LE,SE)..4FC200107-200406

main47311-06060iMCV30..NAP200107-200309

W(VSC)

main47311-06061iMCV3#..NAP200309-200406

W(VSC)

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10238iACV30,MCV3#..NAP200107-200406

W(ABS & VSC)

main90904-13011iACV30..NAP..(LE,SE)200107-200406

47311FTUBE, FRONT BRAKE, FRAME NO.1

main47311-06070iACV30..NAP..(LE,SE)200107-200209

main47311-06080iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

W(ABS & VSC)

47312TUBE, FRONT BRAKE, NO.2

main47312-06080iMCV30..NAP200107-200309

W(VSC)

main47312-06081iMCV3#..NAP200309-200406

W(VSC)

main47312-06090iACV30,MCV30..NAP200107-200309

W(ABS)

main47312-06091iACV30..NAP..4FC; MCV3#..NAP200309-200406

W(ABS)

main47312-06100iACV30..NAP..(LE,SE)..4FC200107-200406

47313TUBE, FRONT BRAKE, NO.3

main47313-06080iMCV30..NAP200107-200301

W(VSC)

main47313-06081iACV30,MCV3#..NAP200406

W(VSC)

main47313-06090iACV30,MCV30..NAP..4FC200107-200309

W(ABS)

main47313-06091iACV30..NAP..4FC; MCV3#..NAP200309-200406

W(ABS)

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90080-94121iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

RH

main90080-94122iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074×4iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

47314TUBE, FRONT BRAKE, NO.4

main47314-06070iACV30,MCV30..NAP200107-200309

W(ABS)

main47314-06071iACV30..NAP..4FC; MCV3#..NAP200309-200406

W(ABS)

main47314-06080iACV30..NAP..(LE,SE)..4FC200107-200406

main47314-06090iMCV30..NAP200107-200309

W(VSC)

main47314-06091iMCV3#..NAP200309-200406

W(VSC)

47315TUBE, FRONT BRAKE, NO.5

main47315-06120iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

W(ABS & VSC)

main47315-06130iACV30..NAP..(LE,SE)..4FC200107-200406

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90080-94123iACV30..NAP..LE..4FC200107-200406

main90080-94125iACV30..NAP..LE; MCV30..NAP;ACV30,MCV31..NAP..(SE,XLE)200406

W(VSC)

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90080-94124iACV30..NAP..LE..4FC200107-200406

main90080-94126iMCV30..NAP..4FC;MCV30..NAP..SE..5FC;ACV30..NAP..(SE,XLE)..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

47321TUBE, REAR BRAKE, NO.1

main47321-06080iACV30,MCV3#..NAP200107-200406

47322TUBE, REAR BRAKE, NO.2

main47322-06080iACV30,MCV3#..NAP200406

47323TUBE, REAR BRAKE, NO.3

main47323-06150iACV30..NAP..LE200107-200406

main47323-06151iACV30..NAP..LE200406

47324TUBE, REAR BRAKE, NO.4

main47324-06150iACV30..NAP..LE200107-200406

main47324-06151iACV30..NAP..LE200406

47371BCLAMP, BRAKE TUBE, NO.6

main47371-32130iACV30,MCV3#..NAP200107-200406

47371CCLAMP, BRAKE TUBE, NO.7

main47371-32140iACV30,MCV3#..NAP200107-200406

47371DCLAMP, BRAKE TUBE, NO.8

main90949-01B45iACV30,MCV3#..NAP200107-200406

47371ECLAMP, BRAKE TUBE, NO.9

main90949-01C53iACV30,MCV3#..NAP200107-200406

47372CLAMP, BRAKE TUBE, NO.2

main90464-00778×2iACV30..NAP..(LE,SE)..4FC; MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

W(ABS & VSC)

9008011629

main90080-11629

9011908C40

main90119-08C40

9046808040

main90468-08040

9151560645

main91515-60645

26 parts on this diagram · 9 diagrams in section
