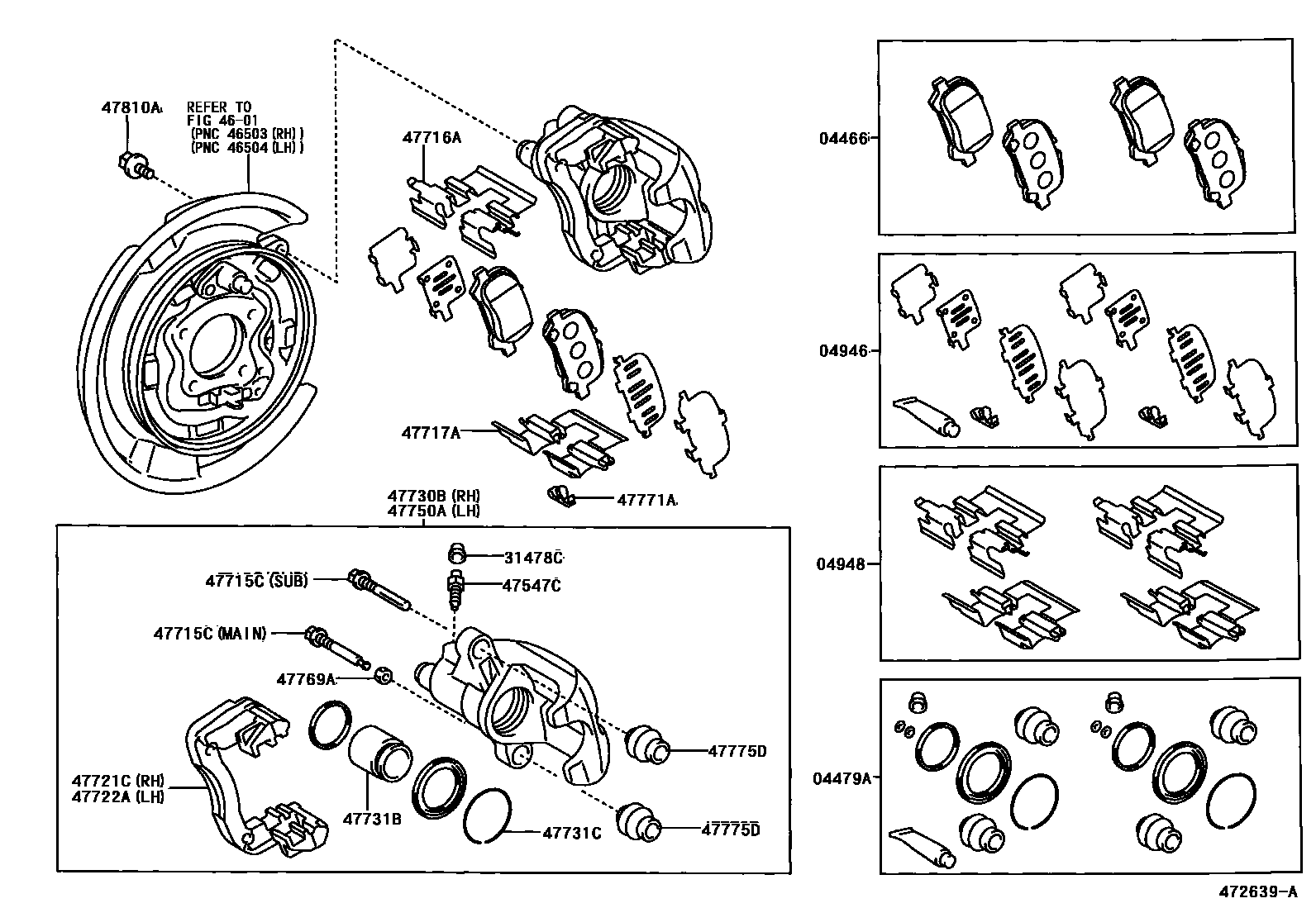

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-06030iACV30,MCV3#..NAP200406

MARK AK PA561

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-06070iMCV30..NAP;ACV30,MCV31..NAP..(SE,XLE)200107-200406

main04479-07040iACV30,MCV3#..NAP200406

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04945-06080iACV30,MCV3#..NAP200406

04948FITTING KIT, DISC BRAKE, REAR

main04948-06010iMCV30..NAP;ACV30,MCV31..NAP..(SE,XLE)200107-200406

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iMCV30..NAP..4FC;MCV30..NAP..SE..5FC;ACV30..NAP..(SE,XLE)..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-06010×2iMCV30..NAP..4FC;MCV30..NAP..SE..5FC;ACV30..NAP..(SE,XLE)..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-07050×2iMCV30..NAP..4FC;MCV30..NAP..SE..5FC;ACV30..NAP..(SE,XLE)..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

SUB

main47715-07060×2iMCV30..NAP..4FC;MCV30..NAP..SE..5FC;ACV30..NAP..(SE,XLE)..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

MAIN

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-06090×2iMCV30..NAP..4FC;MCV30..NAP..SE..5FC;ACV30..NAP..(SE,XLE)..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-06100×2iMCV30..NAP..4FC;MCV30..NAP..SE..5FC;ACV30..NAP..(SE,XLE)..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-06090iMCV30..NAP;ACV30,MCV31..NAP..(SE,XLE)200107-200406

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-06090iACV30,MCV3#..NAP200406

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-06090iMCV30..NAP..4FC;MCV30..NAP..SE..5FC;ACV30..NAP..(SE,XLE)..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

47731BPISTON, REAR DISC BRAKE

main47731-07040×2iMCV30..NAP..4FC;MCV30..NAP..SE..5FC;ACV30..NAP..(SE,XLE)..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90080-52104×2iMCV30..NAP..4FC;MCV30..NAP..SE..5FC;ACV30..NAP..(SE,XLE)..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-06090iMCV30..NAP..4FC;MCV30..NAP..SE..5FC;ACV30..NAP..(SE,XLE)..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-06020×2iMCV30..NAP..4FC;MCV30..NAP..SE..5FC;ACV30..NAP..(SE,XLE)..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-07030×2iACV30,MCV3#..NAP200406

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-41030×4iMCV30..NAP..4FC;MCV30..NAP..SE..5FC;ACV30..NAP..(SE,XLE)..4FC; MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90080-11440×4iMCV30..NAP;ACV30,MCV31..NAP..(SE,XLE)200309-200406

main90119-10379×4iMCV30..NAP200107-200301

(J)

20 parts on this diagram · 1 diagram in section
