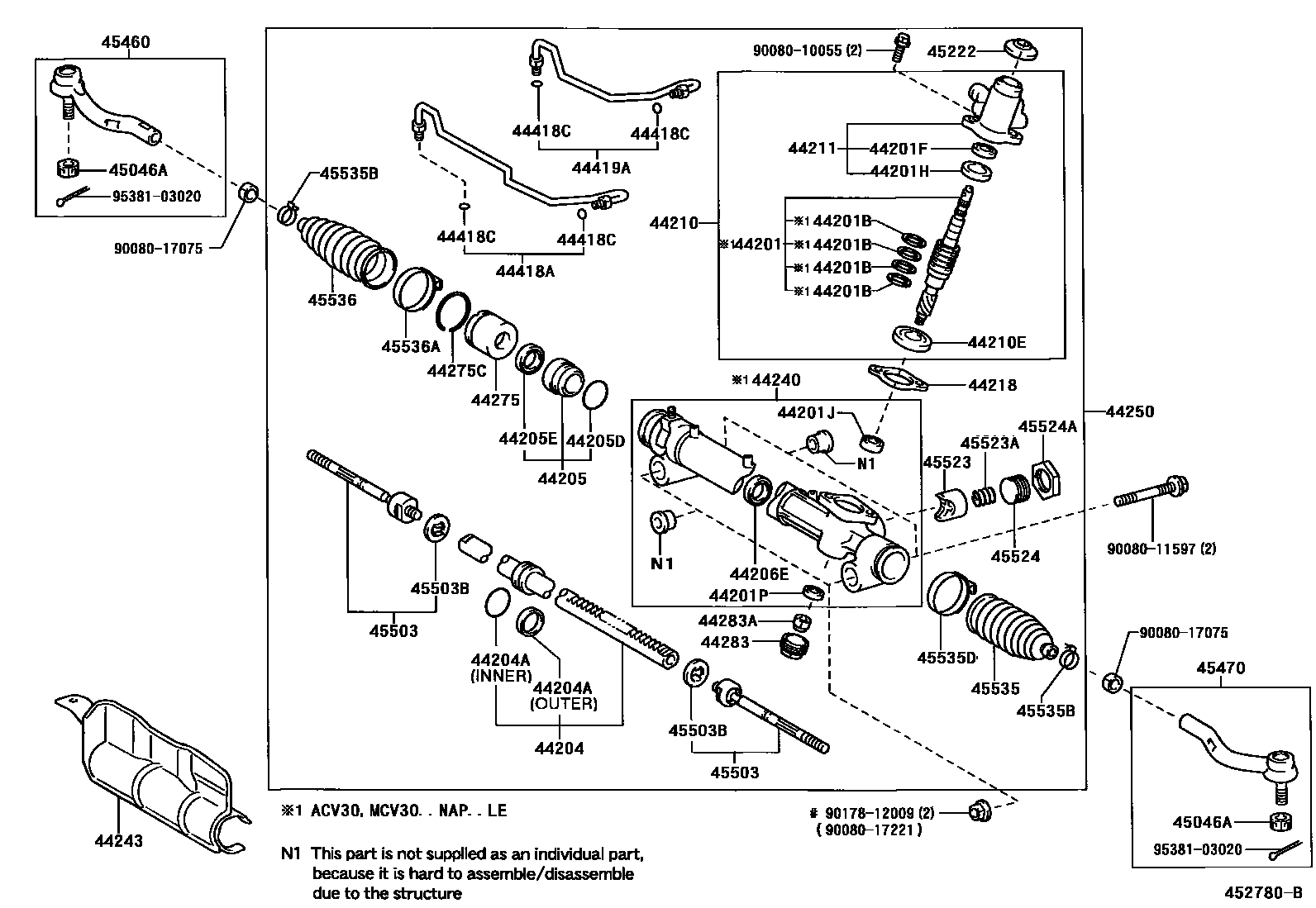

FRONT STEERING GEAR & LINK
44201VALVE SUB-ASSY, POWER STEERING CONTROL
44201BSPACER(FOR POWER STEERING CONTROL VALVE)
44201FSEAL, OIL(FOR POWER STEERING CONTROL VALVE)
44201HBEARING(FOR POWER STEERING CONTROL VALVE UPPER)
44201JBEARING(FOR POWER STEERING CONTROL VALVE CENTER)
44201PBEARING(FOR POWER STEERING CONTROL VALVE LOWER)
44204RACK SUB-ASSY, POWER STEERING
44204ARING(FOR RACK STEERING PISTON)
OUTER
INNER
44205STOPPER SUB-ASSY, CYLINDER END
44205DRING, O(FOR POWER STEERING RACK BUSH)
44205ESEAL, OIL(FOR POWER STEERING RACK BUSH)
44206ESEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE)
44210VALVE ASSY, POWER STEERING CONTROL
44210ESEAL, OIL(FOR POWER STEERING CONTROL VALVE)
44211HOUSING, CONTROL VALVE
44218GASKET, VALVE HOUSING
44240HOUSING ASSY, POWER STEERING RACK
44243INSULATOR, POWER STEERING RACK HOUSING HEAT
44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44275STOPPER, CYLINDER END
44275CWIRE(FOR CYLINDER END STOPPER)
44283CAP, RACK HOUSING
44283ANUT(FOR RACK HOUSING CAP)
44418ATUBE, STEERING RIGHT TURN PRESSURE
44418CRING, O(FOR STEERING TURN PRESSURE TUBE)
44419ATUBE, STEERING LEFT TURN PRESSURE
45046ANUT, CASTLE(FOR TIE ROD END)
(L)
45222COVER, STEERING GEAR DUST
45460ROD ASSY, TIE, RH
(L)
(L)
(J)
(J)
45470ROD ASSY, TIE, LH
(L)
(J)
(J)
45503END SUB-ASSY, STEERING RACK
(L)
(J)
45503BWASHER, CLAW(FOR STEERING RACK END)
OD=35.2
45523GUIDE, RACK(FOR STEERING GEAR)
45523ASPRING(FOR STEERING GEAR RACK GUIDE)
45524CAP, STEERING RACK GUIDE SPRING
45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)
45535BOOT, STEERING RACK, NO.1
45535BCLIP(FOR STEERING RACK BOOT)
45535DCLAMP(FOR STEERING RACK BOOT NO.1)
45536BOOT, STEERING RACK, NO.2
45536ACLAMP(FOR STEERING RACK BOOT NO.2)
9008010055
main90080-10055
9008011597
main90080-11597
9008017075
main90080-17075
9008017221
main90080-17221
9017812009
main90178-12009
9538103020
main95381-03020
47 parts on this diagram · 2 diagrams in section
