DISC WHEEL & WHEEL CAP

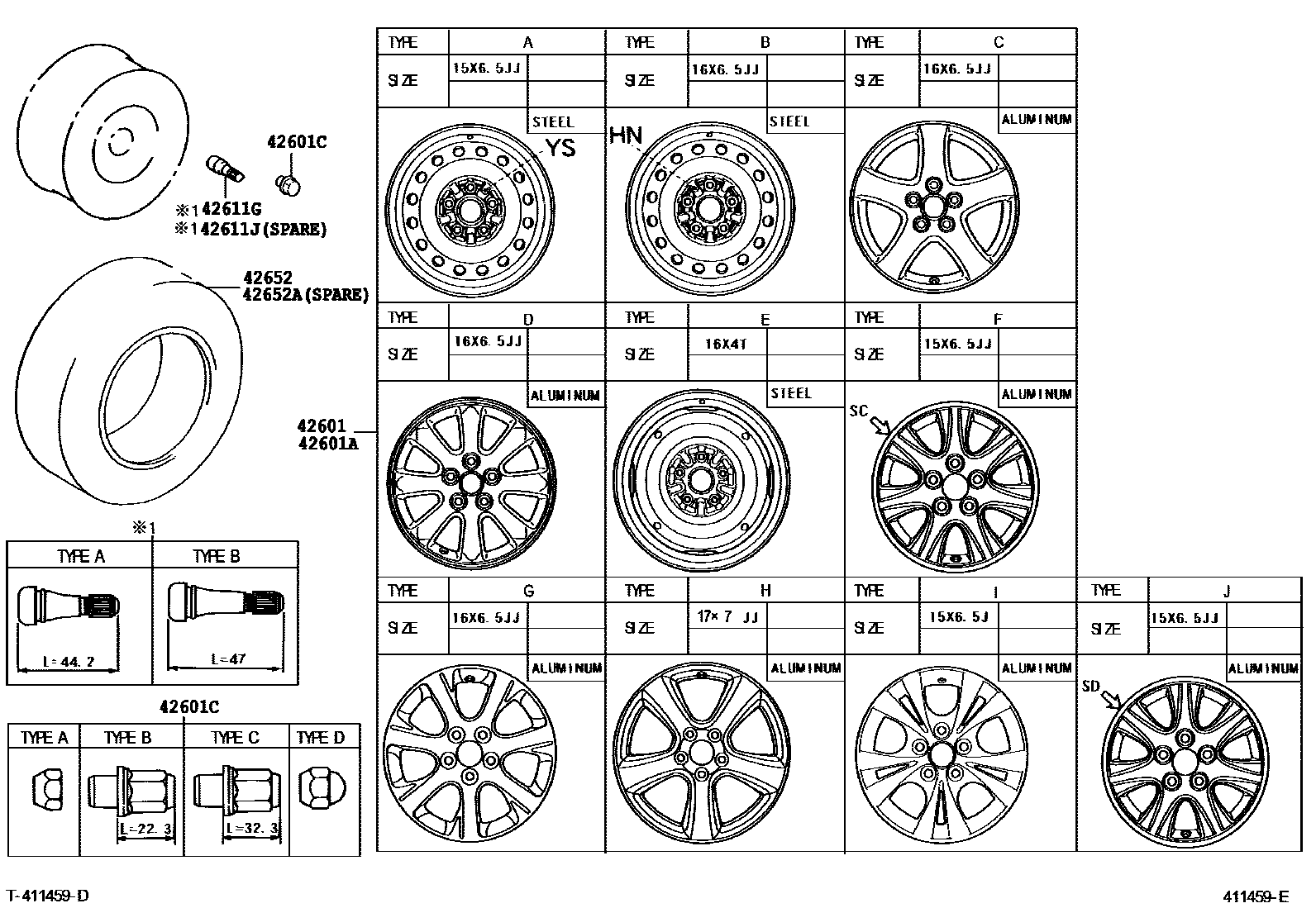

Parts diagram

42601WHEEL, DISC

main42611-06160×4i200107-200301

15X6.5JJ,TYPE A:REFER ILLUST.

main42611-06170×4i200107-200301

16X6.5JJ,TYPE B:REFER ILLUST.

main42611-06180×4i200107-200301

16X6.5JJ,TYPE C:REFER ILLUST.

main42611-33350×4i200309-200406

15X6.5JJ,#,TYPE F:REFER ILLUST.

main42611-33360×4i200309-200406

15X6.5JJ,#,TYPE J:REFER ILLUST.

main42611-AA020×4i200107-200406

16X6.5JJ,TYPE D:REFER ILLUST.

main42611-AA070×4i200406

16X6.5JJ,TYPE G:REFER ILLUST.

main42611-AA080×4i200406

17X7JJ,TYPE H:REFER ILLUST.

main42611-YY030×4i200309-200406

15X6.5J,SILVER,TYPE I:REFER ILLUST.

main42611-YY080×4i200309-200406

15X6.5J,CHROME PLATE,TYPE I:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-06060i200107-200406

16X4T,TYPE E:REFER ILLUST.

main42611-06160i200107-200406

15X6.5JJ,TYPE A:REFER ILLUST.

main42611-06170i200107-200406

16X6.5JJ,TYPE B:REFER ILLUST.

main42611-AA080i200406

17X7JJ,TYPE H:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90080-17035×20i200406

TYPE A:REFER ILLUST.

main90084-94001×20i200107-200406

TYPE B:REFER TO ILLUSTRATION

main90084-94002×20i200406

TYPE C:REFER ILLUST.

main90942-01021×20i200107-200406

TYPE D:REFER TO ILLUSTRATION

42611GVALVE (FOR TUBELESS TIRE)

main90080-45001×4i200107-200406

TYPE A:REFER ILLUST.

main90080-45006×4i200107-200406

TYPE B:REFER ILLUST.

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90080-45001i200406

TYPE A:REFER ILLUST.

main90080-45006i200406

TYPE B:REFER ILLUST.

42652TIRE

main42652-33431×4i200107-200405

P215/60R16 94V

42652ATIRE (FOR SPARE)

main42652-33431i200107-200406

P215/60R16 94V

7 parts on this diagram · 5 diagrams in section
