TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

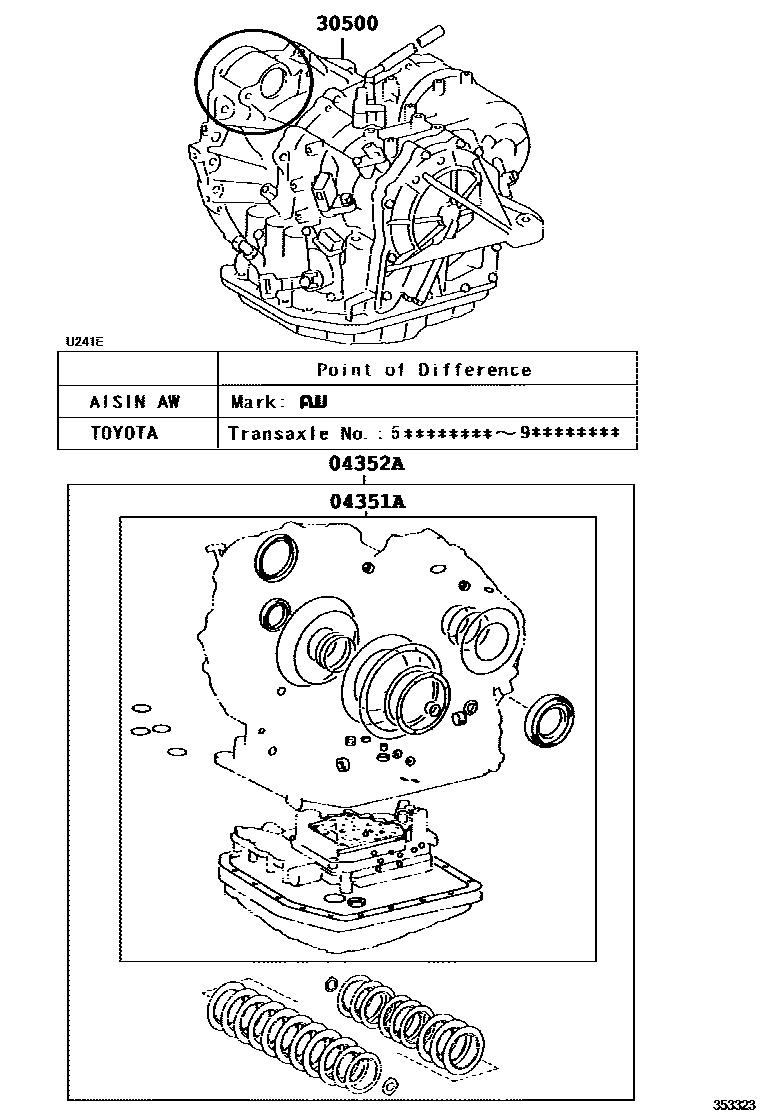

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-06010i200107-200209

main04351-06011i200209-200301

main04351-06020i200107-200209

(L)

main04351-06021i200209-200406

(L)

main04351-06030i200406-200511

main04351-06031i200511-200602

main04351-08010i200301-200406

main04351-33120i200309-200406

(J)

main04351-33180i200406-200601

main04351-33181i200601-200602

main04351-33420i200406-200511

main04351-33421i200511-200602

main04351-44010i200301-200309

(J)

04352AKIT, TRANSAXLE OVERHAUL(ATM)

main04352-06010i200107-200301

main04352-06020i200107-200406

(L)

main04352-06030×2i200406-200511

main04352-06031×2i200511-200602

main04352-08010i200301-200406

main04352-33060i200301-200309

(J)

main04352-33120i200309-200406

(J)

main04352-33270i200406-200601

main04352-33271i200601-200602

main04352-33420×2i200406-200511

main04352-33421i200511-200602

30500TRANSAXLE ASSY, AUTOMATIC

main30500-06010i200107-200301

U140E

main30500-06020i200107-200309

U241E,(L)

main30500-06021i200309-200404

U241E,(L)

main30500-06030i200301-200308

U151E

main30500-06031i200406-200602

U151E,TOYOTA

main30500-33360i200301-200310

U241E,(J)

main30500-33371i200310-200406

U241E

main30500-33381i200406-200602

U151E,AISIN

main30500-33450i200406-200601

U250E

main30500-33451i200601-200602

U250E

3 parts on this diagram · 2 diagrams in section
