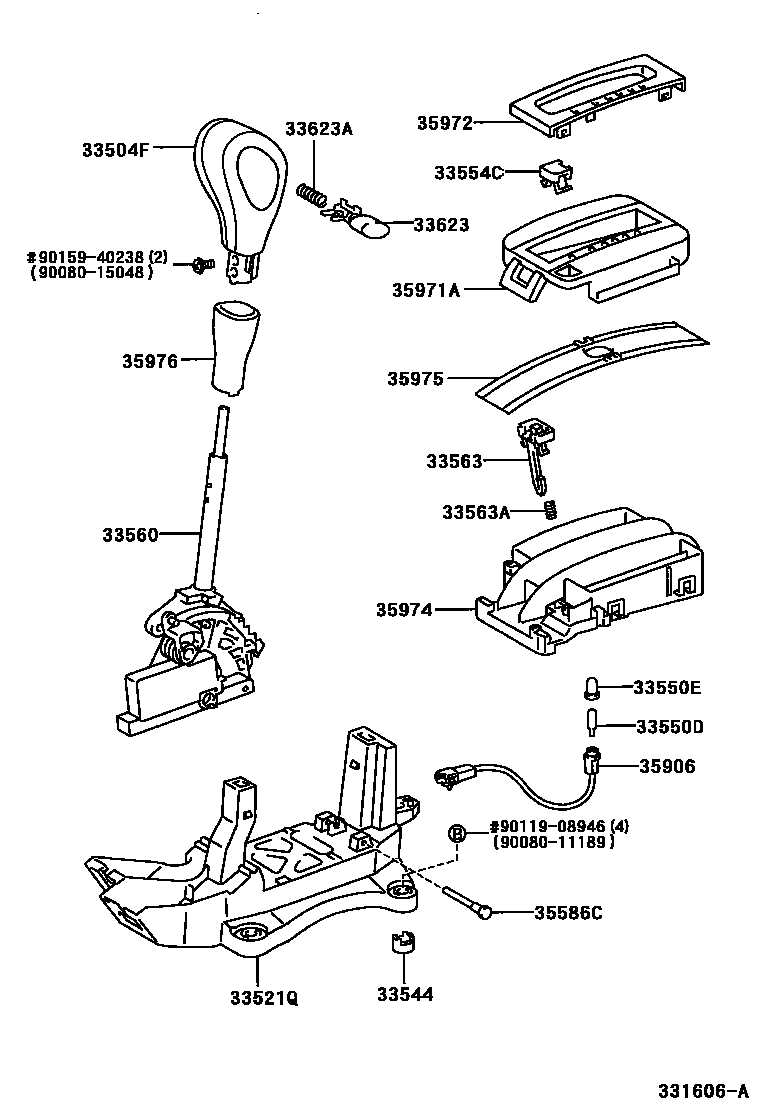

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33542-06030-B0iACV30,MCV30..NAP..(LE,XLE)200107-200406

DK.CHARCOAL,TRIM1#

main33542-06030-E0iACV30,MCV30..NAP..(LE,XLE)200107-200406

SANDAL WOOD,TRIM4#

main33542-06040-B0iACV30,MCV30..NAP..XLE200406

LEATHER TYPE,DK.CHARCOAL,TRIM9#

main33542-06040-B1iACV30,MCV3#..NAP..SE200107-200406

DK.GRAY,TRIM1#,4#

main33542-06040-E0iACV30,MCV30..NAP..XLE200107-200406

LEATHER TYPE,SANDAL WOOD,TRIM4#

33521QHOUSING, SHIFT LEVER (FOR FLOOR SHIFT)

main33521-06031iACV30,MCV30..NAP..4FC200107-200406

33544INSERT, SHIFT LEVER, NO.1

main33544-06010×4iACV30,MCV30..NAP..4FC200107-200406

33550DBULB, POSITION INDICATOR LAMP

main90981-11014iACV30,MCV3#..NAP200107-200406

14V 1.4W

33550ECAP, POSITION INDICATOR LAMP

main90339-04049iACV30,MCV3#..NAP200107-200406

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33502-06030iACV30,MCV3#..NAP200107-200406

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-06012iACV30,MCV30..NAP..4FC200107-200406

main33560-06030iACV30,MCV3#..NAP200406

33563BUTTON, SHIFT LOCK RELEASE

main33563-06040iACV30,MCV3#..NAP200107-200406

33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)

main90080-50179iACV30,MCV3#..NAP200107-200406

33623BUTTON, SHIFT LEVER KNOB

main33623-06030-B0iACV30,MCV30..NAP..LE200107-200406

DK.CHARCOAL,TRIM1#

main33623-06030-B1iACV30,MCV31..NAP..SE200406

DK.GRAY,TRIM4#,9#

main33623-06030-E0iACV30,MCV30..NAP..LE200107-200406

SANDAL WOOD,TRIM4#

main33623-06040iACV30,MCV30..NAP..XLE200107-200406

33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)

main90080-50180iACV30,MCV3#..NAP200107-200406

35586CPIN, TOGGLE LEVER SUPPORT

main35586-06010iACV30,MCV30..NAP..4FC200107-200406

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-06021iACV30,MCV30..NAP..4FC200107-200406

main35906-06040iMCV3#..NAP200301-200406

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-06031iACV30,MCV30..NAP..4FC200107-200406

main35971-33170iMCV3#..NAP200301-200406

35972COVER, POSITION INDICATOR HOUSING

main35972-06010iACV30,MCV30..NAP..4FC200107-200406

main35972-33040iMCV3#..NAP200301-200406

35974HOUSING, POSITION INDICATOR, LOWER

main35974-06031iACV30,MCV30..NAP..4FC200107-200406

main35974-33120iMCV3#..NAP200301-200406

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-06040iACV30,MCV30..NAP..4FC200107-200406

main35975-33080iMCV3#..NAP200301-200406

NO.1

main35976-06050iMCV3#..NAP200301-200406

NO.2

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-06030iACV30,MCV30..NAP..XLE..4FC200107-200406

main35976-06040-B0iACV30,MCV30..NAP..LE..4FC200107-200406

DK.CHARCOAL,TRIM1#

main35976-06040-B1iACV30,MCV30..NAP..SE..4FC200107-200406

DK.GRAY,TRIM1#,4#

main35976-06040-E0iACV30,MCV30..NAP..LE..4FC200107-200406

SANDAL WOOD,TRIM4#

main35976-33090iMCV3#..NAP..(LE,SE)200301-200406

main35976-33100iACV30,MCV30..NAP..(LE,XLE)200406

9008011189

main90080-11189

9008015048

main90080-15048

9011908946

main90119-08946

9015940238

main90159-40238

22 parts on this diagram · 3 diagrams in section
