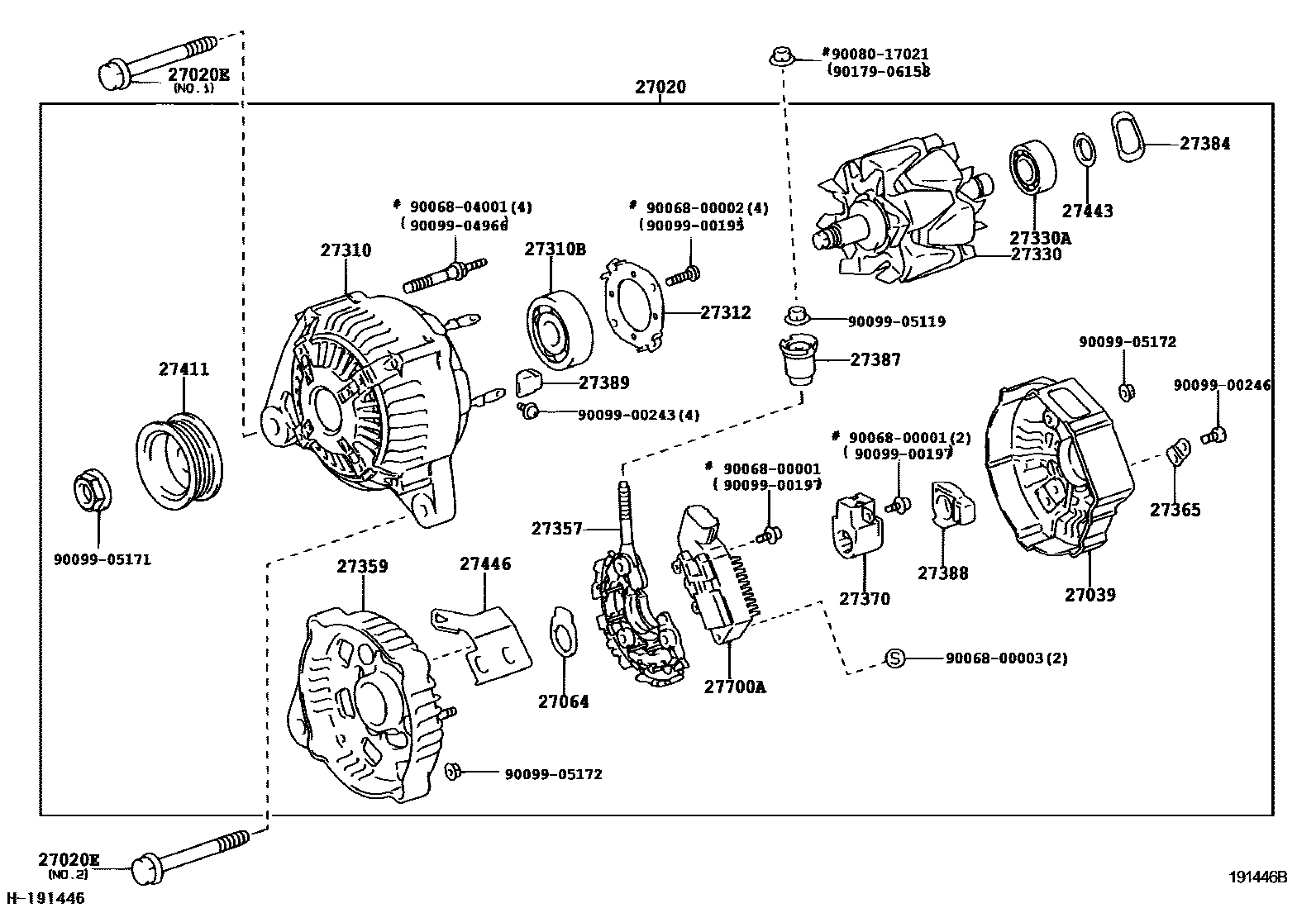

ALTERNATOR

0001 112V 80A 0002 112V 100A 0003 112V 100A

27020ALTERNATOR ASSY

main27060-0A070i1MZFE..MCV30..NAP200107-200309

12V 100A

main27060-0A120i1MZFE..MCV30..NAP200309-200602

12V 100A

main27060-0A140i3MZFE..MCV31..NAP200309-200602

12V 100A

main27060-0H010i2AZFE..ACV30..NAP200107-200309

12V 80A

main27060-0H100i2AZFE..ACV30..NAP200309-200602

12V 100A

27020EBOLT(FOR ALTERNATOR)

main90080-10111i2AZFE..ACV30..NAP200207-200406

NO.1,(L)

main90080-10250i2AZFE..ACV30..NAP200207-200406

NO.2,(L)

main91511-J0840i2AZFE..ACV30..NAP200107-200406

NO.2,(J)

main91512-81085i2AZFE..ACV30..NAP200107-200406

NO.1,(J)

27039COVER, ALTERNATOR REAR END

main27039-0A020i2AZFE..ACV30..NAP200107-200309

main27039-0A070i1MZFE..MCV30..NAP200107-200309

main27039-0A110i2AZFE,1MZFE,3MZFE..ACV30,MCV3#..NAP200309-200602

27064SEAL, ALTERNATOR PLATE

main27064-0A020i2AZFE,1MZFE..ACV30,MCV30..NAP200107-200309

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0A070i1MZFE..MCV30..NAP200107-200309

sub27310-20170

main27310-0A110i1MZFE,3MZFE..MCV3#..NAP200309-200602

main27310-0H010i2AZFE..ACV30..NAP200107-200309

main27310-0H060i2AZFE..ACV30..NAP200309-200602

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10002i1MZFE..MCV30..NAP200107-200309

sub90099-10192

main90068-10015i2AZFE..ACV30..NAP200107-200309

main90068-10142i2AZFE..ACV30..NAP200309-200406

(L)

main90068-10142i2AZFE,1MZFE,3MZFE..ACV30,MCV3#..NAP200406-200602

27312PLATE, RETAINER

main27312-0A020i2AZFE,1MZFE..ACV30,MCV30..NAP200107-200309

main27312-72100i2AZFE,1MZFE,3MZFE..ACV30,MCV3#..NAP200309-200602

27330ROTOR ASSY, ALTERNATOR

main27330-0A070i1MZFE..MCV30..NAP200107-200309

main27330-0A140i3MZFE..MCV31..NAP200406-200602

main27330-0F060i2AZFE,1MZFE..ACV30,MCV30..NAP200309-200602

main27330-0H010i2AZFE..ACV30..NAP200107-200309

27330ABEARING(FOR ALTERNATOR ROTOR)

main90068-10001i2AZFE,1MZFE..ACV30,MCV30..NAP200107-200309

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-0A070i1MZFE..MCV30..NAP200107-200309

main27357-0H010i2AZFE..ACV30..NAP200107-200309

27359FRAME, ALTERNATOR RECTIFIER END

main27359-0A070i1MZFE..MCV30..NAP200107-200309

main27359-0H010i2AZFE..ACV30..NAP200107-200309

27365PLATE, TERMINAL

main27365-55080i2AZFE,1MZFE..ACV30,MCV30..NAP200107-200309

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-0F060i2AZFE,1MZFE,3MZFE..ACV30,MCV3#..NAP200309-200602

main27370-75060i2AZFE,1MZFE..ACV30,MCV30..NAP200107-200309

27384WASHER

main27384-0A020i2AZFE,1MZFE,3MZFE..ACV30,MCV3#..NAP200107-200406

27387INSULATOR, TERMINAL

main27387-0F060i2AZFE,1MZFE,3MZFE..ACV30,MCV3#..NAP200309-200406

main27387-42021i2AZFE,1MZFE..ACV30,MCV30..NAP200107-200309

27388COVER, ALTERNATOR BRUSH

main27388-0A020i2AZFE,1MZFE..ACV30,MCV30..NAP200107-200309

sub27388-42010

27389INSULATOR, TERMINAL

main27389-0A020i2AZFE,1MZFE..ACV30,MCV30..NAP200107-200309

sub27389-42010

27411PULLEY, ALTERNATOR

main27411-0A050i1MZFE,3MZFE..MCV3#..NAP200107-200602

main27411-0H010i2AZFE..ACV30..NAP200107-200309

main27411-28060i2AZFE..ACV30..NAP200309-200602

27443COVER, ALTERNATOR BEARING

main27443-0A020i2AZFE..ACV30..NAP200107-200602

27446CLIP, ALTERNATOR CORD

main27446-28060i2AZFE..ACV30..NAP200107-200309

main27446-62050i1MZFE..MCV30..NAP200107-200309

27700AREGULATOR ASSY, GENERATOR

main27700-20050i2AZFE,1MZFE..ACV30,MCV30..NAP200107-200309

9006800001

main90068-00001

9006800002

main90068-00002

9006800003

main90068-00003

9006804001

main90068-04001

9008017021

main90080-17021

9009900195

main90099-00195

9009900197

main90099-00197

9009900243

main90099-00243

9009900246

main90099-00246

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9017906158

main90179-06158

35 parts on this diagram · 3 diagrams in section
