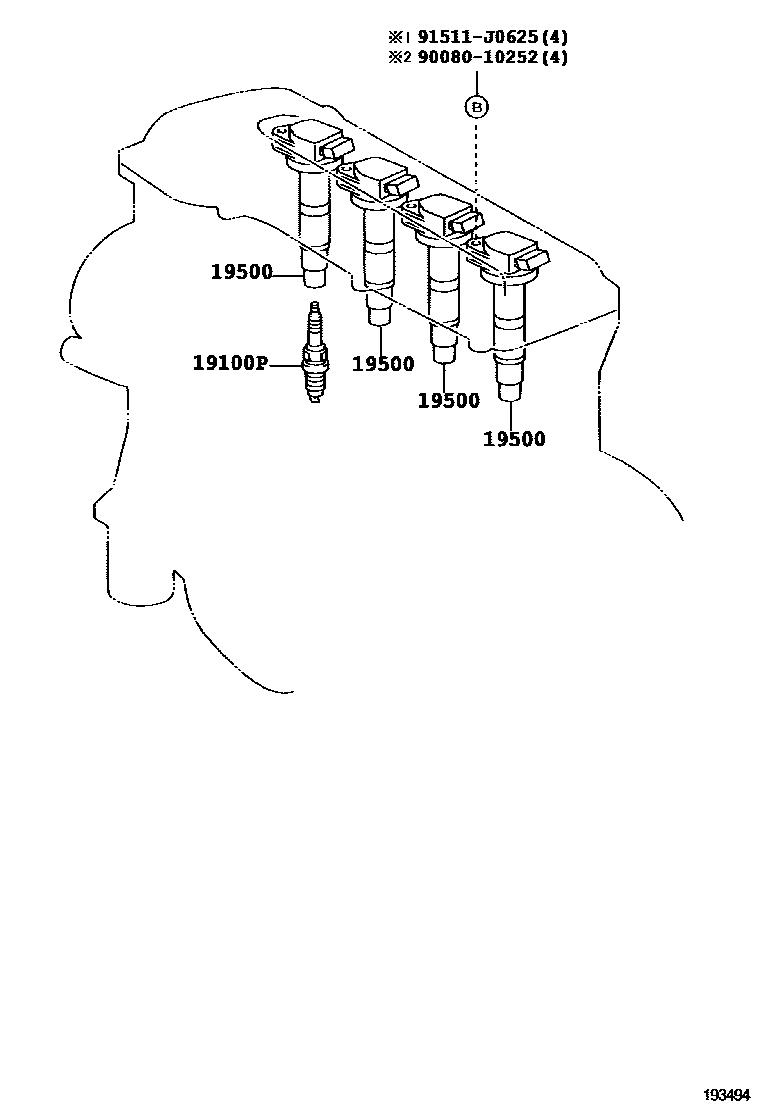

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1

19100PPLUG, SPARK

main90080-91180i2AZFE..ACV30..NAP200107-200406

SK20R11,(L)

main90080-91180i3MZFE..MCV31..NAP200309-200406

SK20R11

main90919-01210i1MZFE..MCV30..NAP..SE..5FC200107-200406

SK20R11,(J)

main90919-01211i3MZFE..MCV31..NAP200107-200406

IFR6A11

main90919-01237i2AZFE..ACV30..NAP200205-200406

SK20R11,(J)

sub90919-01210

19500COIL ASSY, IGNITION

main90080-19016i1MZFE..MCV30..NAP200107-200406

(L)

sub90919-02234

main90080-19023i2AZFE..ACV30..NAP200107-200406

MARK 90080-19023,(L)

sub90919-02266

main90080-19023i2AZFE..ACV30..NAP200406-200602

(L)

sub90919-02266

main90080-19025i3MZFE..MCV31..NAP200309-200406

main90919-02234i1MZFE..MCV30..NAP..(LE,XLE)..5FC200107-200406

(J)

main90919-02243i2AZFE..ACV30..NAP200107-200308

MARK 90919-02243

sub90919-02244

main90919-02244i2AZFE..ACV30..NAP200406-200602

(J)

sub90919-02266

main90919-02244i2AZFE..ACV30..NAP200107-200406

MARK 90919-02244,(J)

sub90919-02266

9008010252

main90080-10252

91511J0625

main91511-J0625

4 parts on this diagram · 2 diagrams in section
