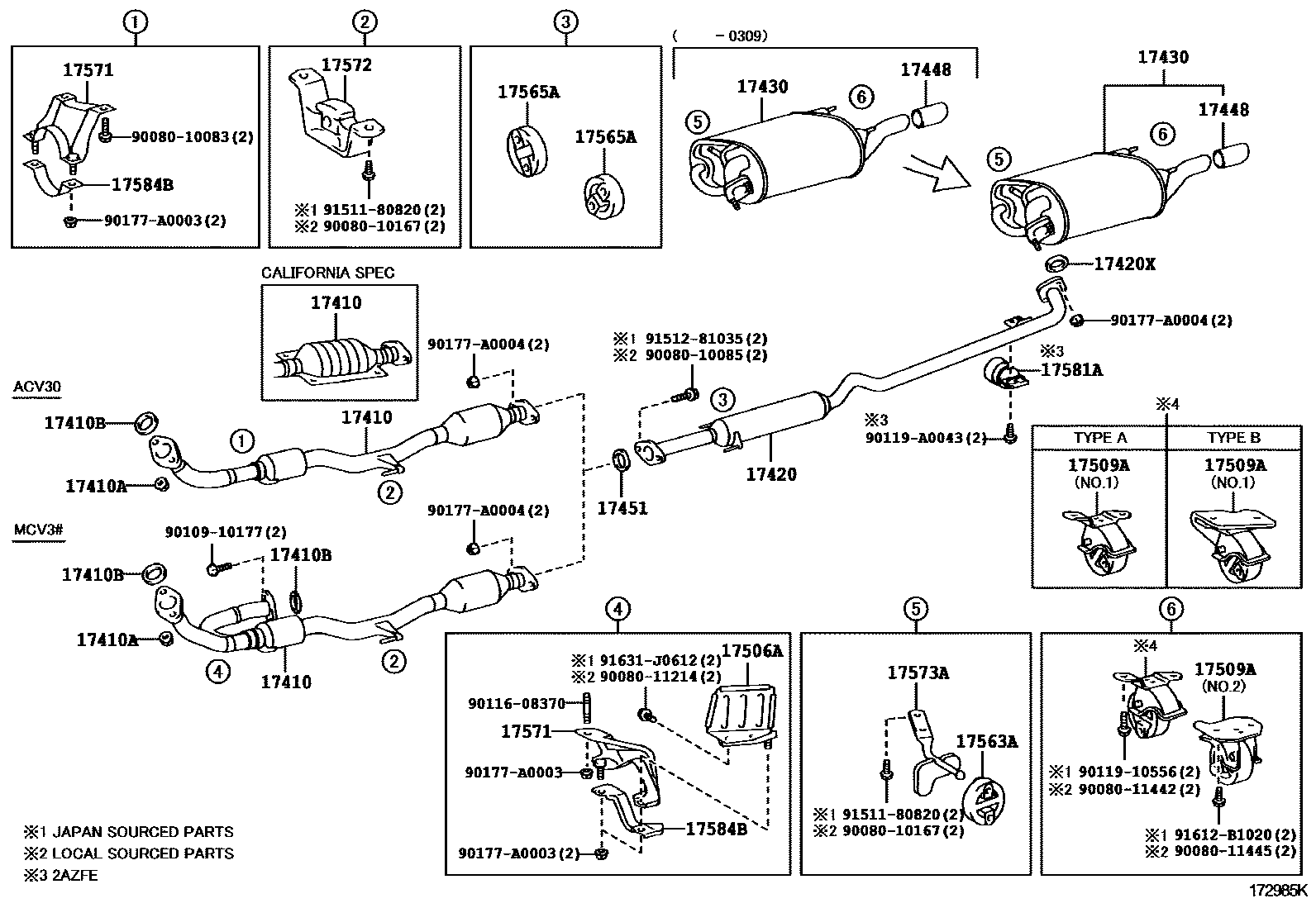

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-0A340i1MZFE..MCV30..NAP200406

main17410-0A370i3MZFE..MCV31..NAP200406

main17410-0H020i2AZFE..ACV30..NAP200107-200309

main17410-0H090i2AZFE..ACV30..NAP200406

main17410-0H130i2AZFE..ACV30..NAP200406

CALIFORNIA SPEC

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90080-17187×2i2AZFE,1MZFE,3MZFE..ACV30,MCV3#..NAP200309-200406

main90179-10070×2i2AZFE,1MZFE..ACV30,MCV30..NAP200107-200309

17410BGASKET, EXHAUST PIPE

main90080-43036×2i1MZFE,3MZFE..MCV3#..NAP200406

(L)

main90917-06089×2i1MZFE..MCV30..NAP200107-200209

main90917-06090i2AZFE..ACV30..NAP200107-200406

(J)

main90917-A6001i2AZFE..ACV30..NAP200307-200406

(L)

17420PIPE ASSY, EXHAUST, CENTER

main17420-0A200i1MZFE..MCV30..NAP200406

main17420-0A290i3MZFE..MCV31..NAP200406

main17420-0H010i2AZFE..ACV30..NAP200107-200406

main17420-0H110i2AZFE..ACV30..NAP200302-200406

CALIFORNIA SPEC

17420XGASKET, EXHAUST PIPE, CENTER

main90080-43026i2AZFE,1MZFE,3MZFE..ACV30,MCV3#..NAP200107-200406

17430PIPE ASSY, EXHAUST, TAIL

main17430-0A261i3MZFE..MCV31..NAP200309-200406

main17430-0H121i2AZFE..ACV30..NAP..SE200406

main17430-0H140i2AZFE..ACV30..NAP..(LE,XLE)200406

main17440-0A020i1MZFE..MCV30..NAP..(LE,XLE)200107-200406

main17440-0A030i1MZFE..MCV30..NAP..SE200107-200309

main17440-0H010i2AZFE..ACV30..NAP..(LE,XLE)200107-200309

main17440-0H020i2AZFE..ACV30..NAP..SE200107-200309

main17440-0H040i2AZFE..ACV30..NAP..(LE,XLE)200406

CALIFORNIA SPEC

main17440-0H050i2AZFE..ACV30..NAP..SE200302-200309

CALIFORNIA SPEC

main17440-0H051i2AZFE..ACV30..NAP..SE200406

CALIFORNIA SPEC

17448BAFFLE, TAILPIPE

main17408-46020i1MZFE,3MZFE..MCV3#..NAP..SE200107-200406

main17408-74080i2AZFE..ACV30..NAP..SE200107-200406

17451GASKET, EXHAUST PIPE

main90080-43033i2AZFE,1MZFE,3MZFE..ACV30,MCV3#..NAP200406

(L)

main90917-06057i2AZFE..ACV30..NAP200406

CALIFORNIA SPEC

main90917-06076i2AZFE,1MZFE,3MZFE..ACV30,MCV3#..NAP200107-200406

(J)

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-0A051i1MZFE,3MZFE..MCV3#..NAP200406

17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT

main17509-0A010i2AZFE,1MZFE,3MZFE..ACV30,MCV3#..NAP200406

TYPE A:REFER TO ILLUSTRATION,NO.1

main17509-0A050i2AZFE,1MZFE,3MZFE..ACV30,MCV3#..NAP200107-200406

NO.2

main17509-0A060i2AZFE,1MZFE,3MZFE..ACV30,MCV3#..NAP200107-200406

TYPE B:REFER TO ILLUSTRATION,NO.1

17563ASUPPORT, EXHAUST PIPE, NO.3

main17565-0A071i2AZFE..ACV30..NAP200107-200406

main17565-0A160i1MZFE,3MZFE..MCV3#..NAP200107-200406

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0A130×2i2AZFE,1MZFE,3MZFE..ACV30,MCV3#..NAP200406

17571BRACKET, EXHAUST PIPE SUPPORT, NO.1

main17571-0A090i1MZFE,3MZFE..MCV3#..NAP200406

(L)

main17571-0H010i2AZFE..ACV30..NAP200406

(L)

main17571-20150i1MZFE,3MZFE..MCV3#..NAP200107-200406

(J)

main17571-28080i2AZFE..ACV30..NAP200406

(J)

17572BRACKET, EXHAUST PIPE NO.1 SUPPORT

main17572-0H020i2AZFE,1MZFE,3MZFE..ACV30,MCV3#..NAP200406

17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3

main17573-28010i2AZFE,1MZFE,3MZFE..ACV30,MCV3#..NAP200406

17581ADAMPER, EXHAUST PIPE

main17581-74070i2AZFE..ACV30..NAP200107-200406

17584BBRACKET, EXHAUST PIPE NO.1 SUPPORT

main17584-0A020i1MZFE,3MZFE..MCV3#..NAP200406

(L)

main17584-20010i1MZFE,3MZFE..MCV3#..NAP200107-200406

(J)

main17584-28020i2AZFE..ACV30..NAP200406

9008010083

main90080-10083

9008010085

main90080-10085

9008010167

main90080-10167

9008011214

main90080-11214

9008011442

main90080-11442

9008011445

main90080-11445

9010910177

main90109-10177

9011608370

main90116-08370

9011910556

main90119-10556

90119A0043

main90119-A0043

90177A0003

main90177-A0003

90177A0004

main90177-A0004

9151180820

main91511-80820

9151281035

main91512-81035

91612B1020

main91612-B1020

91631J0612

main91631-J0612

33 parts on this diagram · 2 diagrams in section
