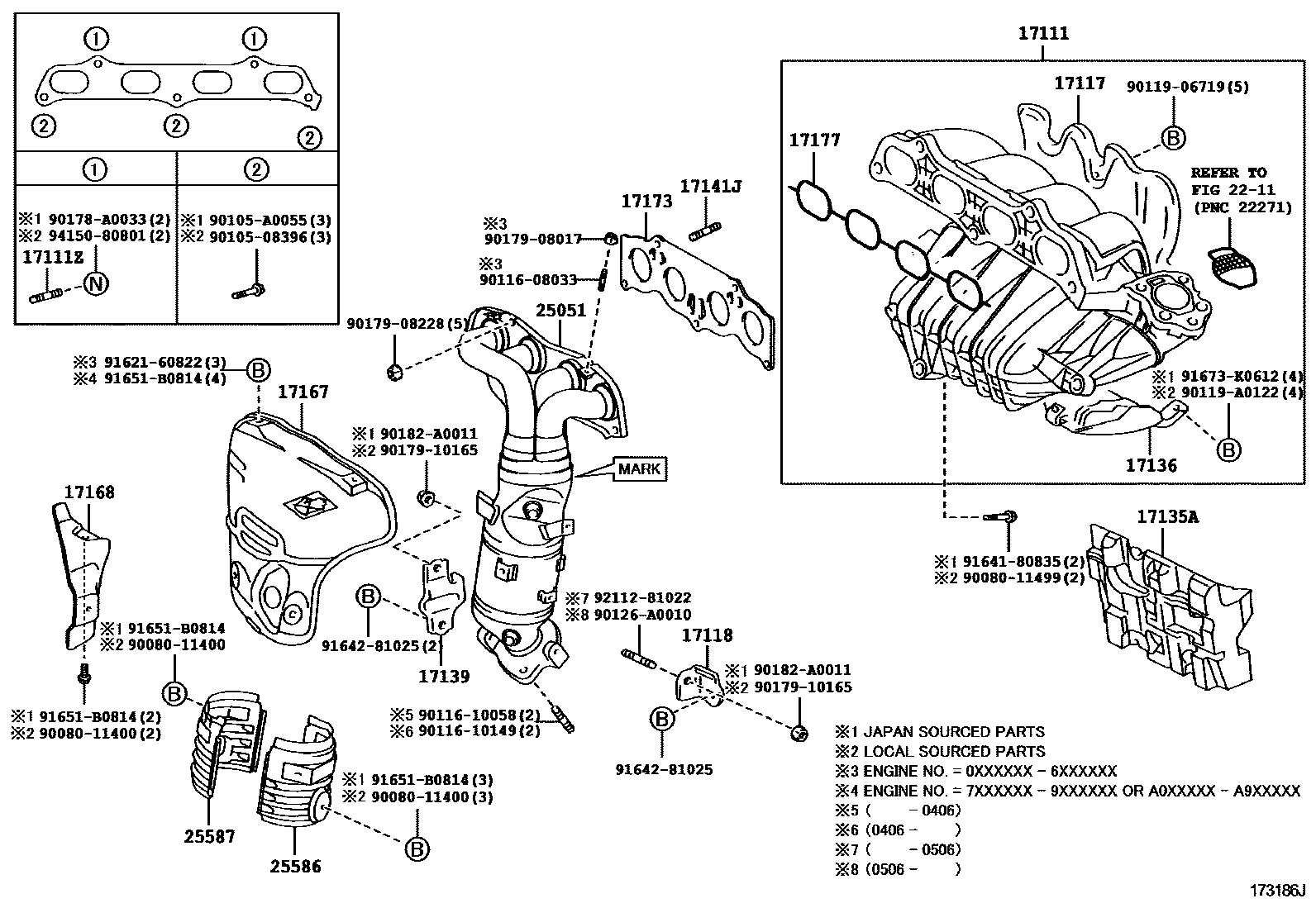

MANIFOLD
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
CALIFORNIA SPEC,(J)
CALIFORNIA SPEC
(J)
CALIFORNIA SPEC,(L)
(L)
17117INSULATOR, INTAKE PIPE
(L)
(J)
CALIFORNIA SPEC
17118STAY, MANIFOLD
17136INSULATOR, INTAKE MANIFOLD, NO.2
17139STAY, MANIFOLD, NO.2
CONVERTER = 0HXXX
CONVERTER = 28XXX
17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)
(J)
(L)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
(J)
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
(L)
(J)
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
CALIFORNIA SPEC
2211
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
MARK OF CONVERTER = 0HXXX
MARK OF CONVERTER = 0HXXX,(L)
(L)
MARK OF CONVERTER = 28XXX
CALIFORNIA SPEC
MARK OF CONVERTER = 28XXX,(J)
(J)
25586INSULATOR, MANIFOLD CONVERTER, NO.1
(L)
(J)
CALIFORNIA SPEC
25587INSULATOR, MANIFOLD CONVERTER, NO.2
(L)
(J)
9008011400
main90080-11400
9008011499
main90080-11499
9010508396
main90105-08396
90105A0055
main90105-A0055
9011608033
main90116-08033
9011610058
main90116-10058
9011610149
main90116-10149
9011906719
main90119-06719
90119A0122
main90119-A0122
90126A0010
main90126-A0010
90178A0033
main90178-A0033
9017908017
main90179-08017
9017908228
main90179-08228
9017910165
main90179-10165
90182A0011
main90182-A0011
9162160822
main91621-60822
9164180835
main91641-80835
9164281025
main91642-81025
91651B0814
main91651-B0814
91673K0612
main91673-K0612
9211281022
main92112-81022
9415080801
main94150-80801
38 parts on this diagram · 5 diagrams in section
