SHORT BLOCK ASSEMBLY

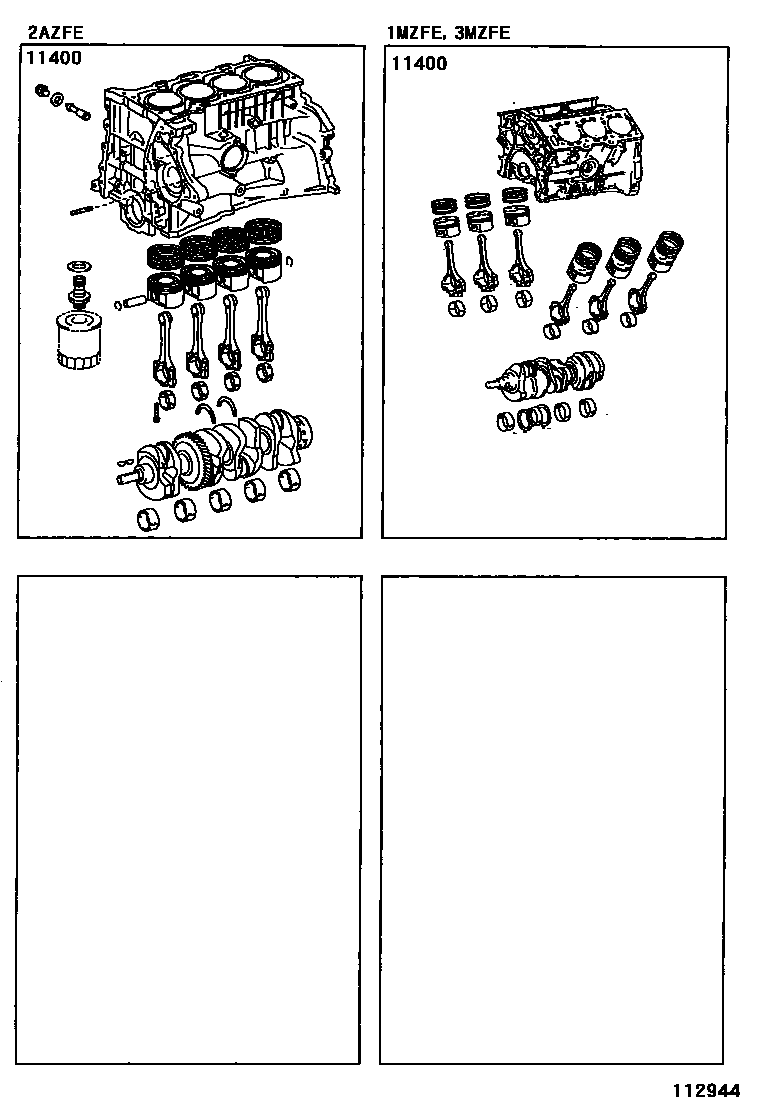

Parts diagram

11400BLOCK ASSY, SHORT

main11400-0A091i200107-200208

main11400-0A110i200309-200406

main11400-0A150i200208-200301

main11400-0A170i200406-200602

main11400-0H010i200406-200602

(L)

main11400-28050i200212-200309

(J)

main11400-28190i200309-200406

1 parts on this diagram · 1 diagram in section
