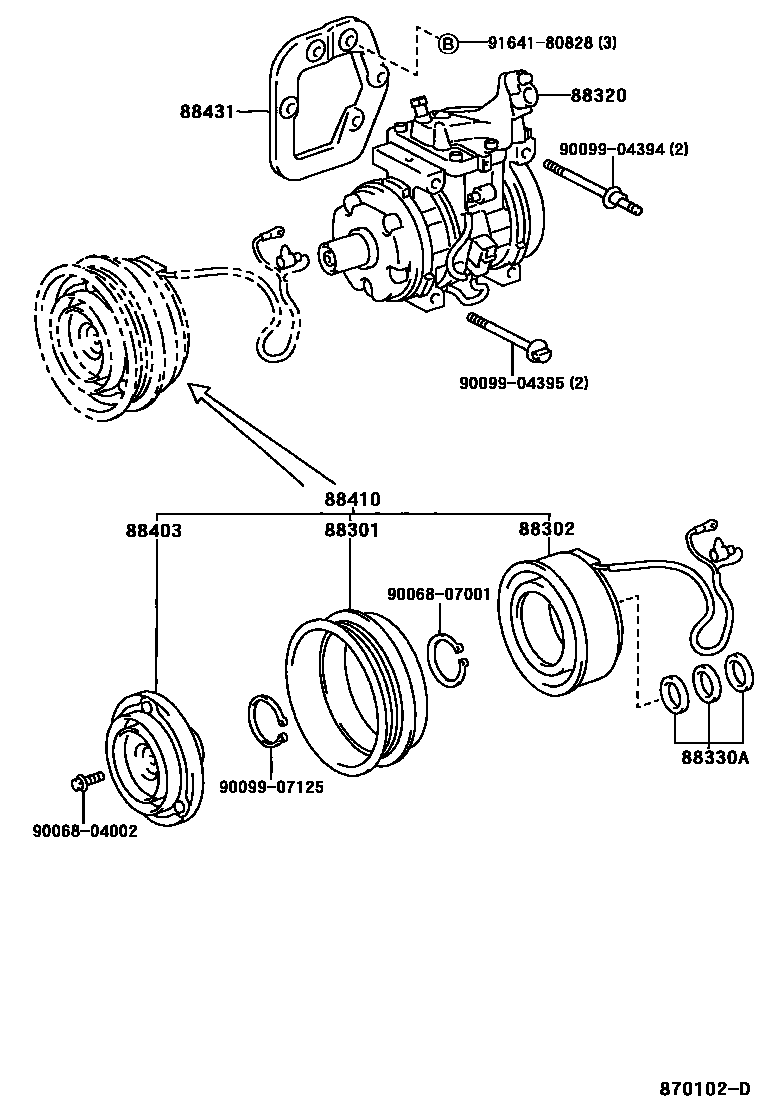

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-06040iSXV20..NAP199607

main88412-07010iMCV20..NAP199607

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-06030iSXV20..NAP199607

main88411-07010iMCV20..NAP199607

88320COMPRESSOR ASSY, COOLER

main88320-06050iMCV20..NAP199607

main88320-06070iSXV20..NAP199607

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iMCV20,SXV20..NAP199607

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-06050iSXV20..NAP199607

main88403-30290iMCV20..NAP199607

88410CLUTCH ASSY, MAGNET

main88410-06050iMCV20..NAP199607

main88410-06070iSXV20..NAP199607

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-07010iMCV20..NAP199607

DENSO USA

main88431-33020iMCV20..NAP199607

DENSO

9006804002

main90068-04002

9006807001

main90068-07001

9009904394

main90099-04394

9009904395

main90099-04395

9009907125

main90099-07125

9164180828

main91641-80828

13 parts on this diagram · 3 diagrams in section
