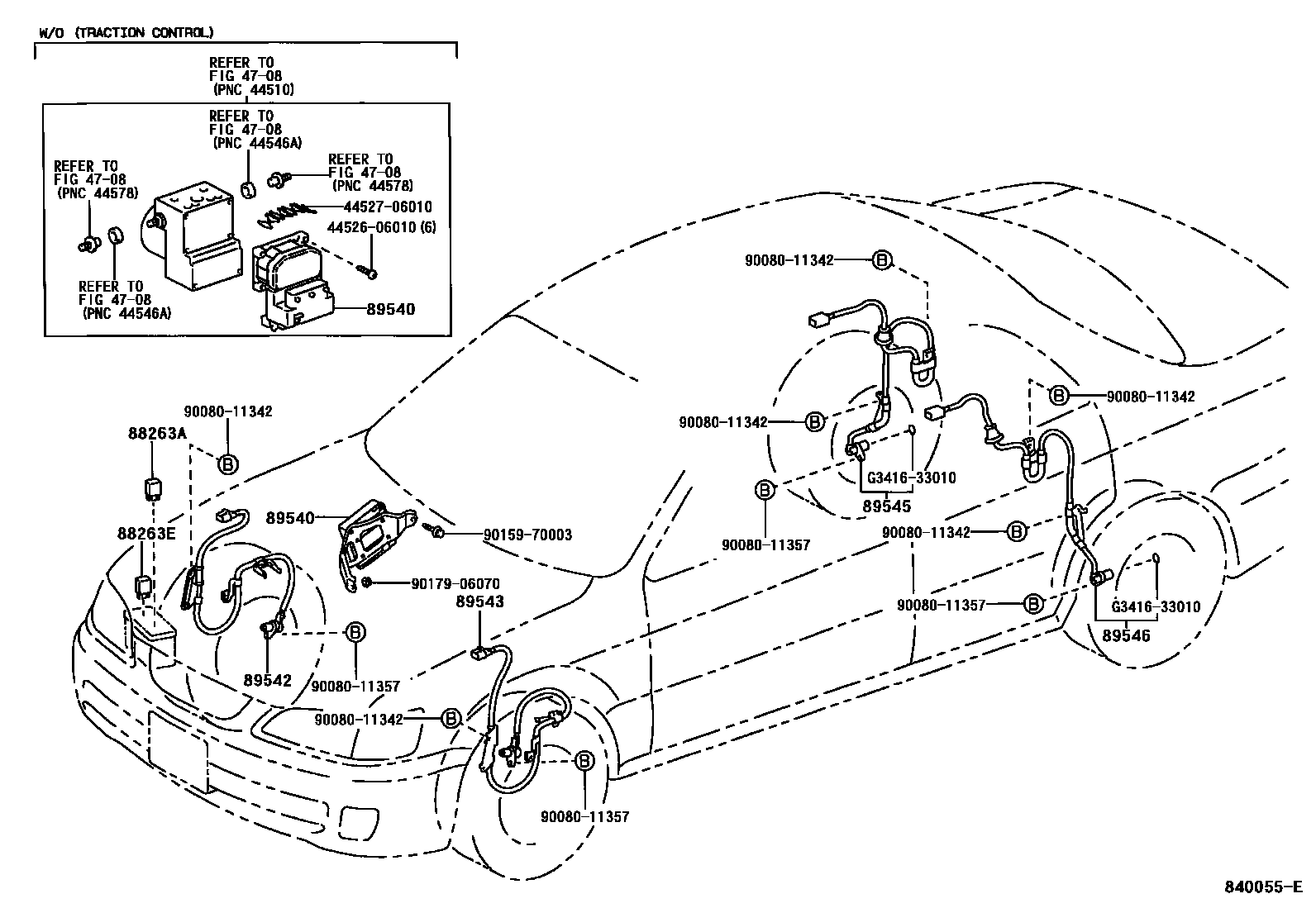

ABS & VSC

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

88263ARELAY, SKID CONTROL

main88263-14110iMCV20..NAP..ATM..(LE,XLE)199607

88263ERELAY, SKID CONTROL NO.2

main88263-24030iMCV20..NAP..ATM..(LE,XLE)199607

89540COMPUTER ASSY, SKID CONTROL

main89540-33030iMCV20..NAP..(LE,XLE)199607-199612

W(TRACTION CONTROL)

main89540-33032iMCV20..NAP..(LE,XLE)199612-199708

W(TRACTION CONTROL)

main89540-33033iMCV20..NAP..ATM..(LE,XLE)199708-199908

W(TRACTION CONTROL)

main89540-33070iMCV20..NAP..ATM199908-200008

main89540-33080iMCV20..NAP..ATM200009

W(TRACTION CONTROL)

main89540-33120iMCV20..NAP..ATM..USA199708-199908

CALIFORNIA SPEC & W(TRACTION CONTROL)

main89541-06030iMCV20,SXV20..NAP199607-199808

W/O(TRACTION CONTROL)

89542SENSOR, SPEED, FRONT RH

main89542-07010iMCV20,SXV20..NAP199908

PART NUMBER LABEL=89542-07010

main89542-07020iMCV20,SXV20..NAP199908

PART NUMBER LABEL=89542-07020

main89542-33030iMCV20,SXV20..NAP199607-199908

89543SENSOR, SPEED, FRONT LH

main89543-07010iMCV20,SXV20..NAP199908

PART NUMBER LABEL=89543-07010

main89543-07020iMCV20,SXV20..NAP199908

PART NUMBER LABEL=89543-07020

main89543-33030iMCV20,SXV20..NAP199607-199908

89545SENSOR, SPEED, REAR RH

main89545-33020iMCV20,SXV20..NAP199607

89546SENSOR, SPEED, REAR LH

main89546-33020iMCV20,SXV20..NAP199607

4452606010SEAT, G VALVE

main44526-06010

4452706010BALL, G VALVE

main44527-06010

9008011342

main90080-11342

9008011357

main90080-11357

9015970003

main90159-70003

9017906070

main90179-06070

9161660612

main91616-60612

91651B0618

main91651-B0618

G341633010

mainG3416-33010

17 parts on this diagram · 1 diagram in section
