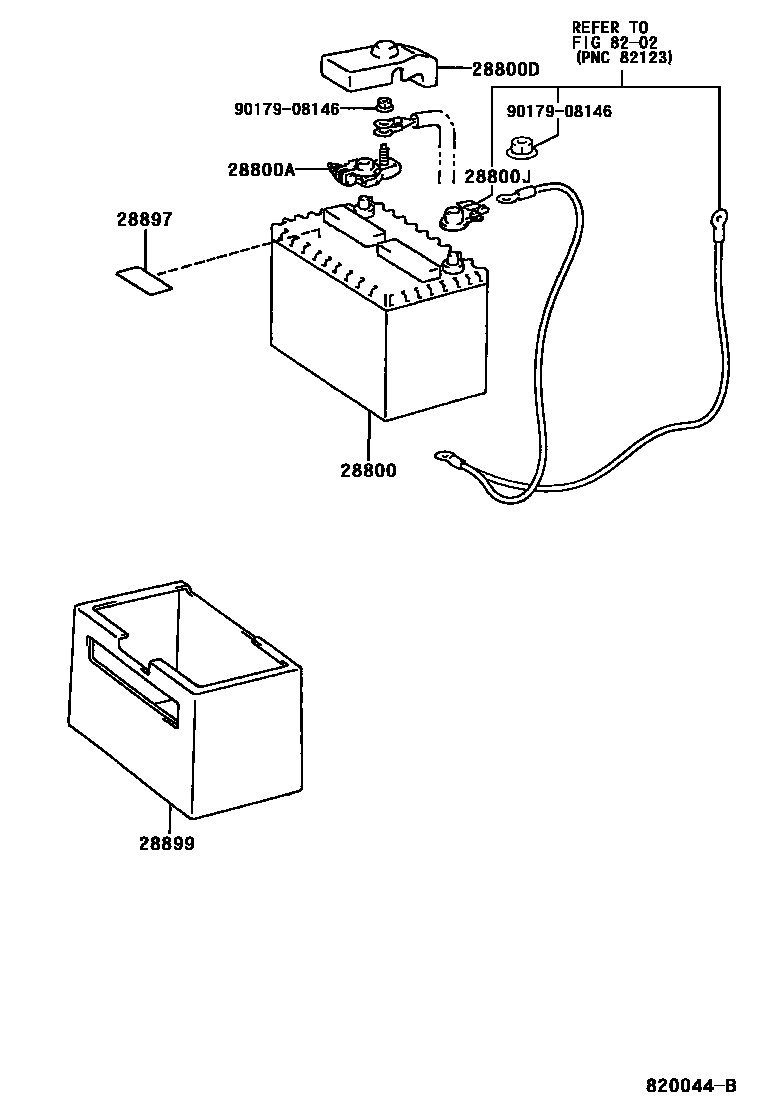

BATTERY & BATTERY CABLE

28800BATTERY

main28800-03044i1MZFE,5SFE..MCV20,SXV20..NAP199607

80D26L,JOHNSON

main28800-AA010i1MZFE,5SFE..MCV20,SXV20..NAP..USA199607

55D23L

main28800-AA041i5SFE..SXV20..NAP;1MZFE..MCV20..NAP..ATM;1MZFE..MCV20..NAP..CE..USA199607

80D26L,GNB

28800ATERMINAL, BATTERY POSITIVE

main90982-05035i1MZFE,5SFE..MCV20,SXV20..NAP199607

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-08010i1MZFE,5SFE..MCV20,SXV20..NAP199607

28800JTERMINAL, BATTERY NEGATIVE

main90982-06022i1MZFE,5SFE..MCV20,SXV20..NAP199607

28897PLATE, BATTERY CAUTION

main28897-AA010i1MZFE,5SFE..MCV20,SXV20..NAP..CND199607-199808

28899INSULATOR, BATTERY

main28899-AA010i1MZFE..MCV20..NAP..USA199607-199908

W/O(COLD AREA SPEC)

main28899-AA020i1MZFE..MCV20..NAP199607-199908

8202WIRING & CLAMP

→ Go to FIG 82-02

9017908146

main90179-08146

8 parts on this diagram · 1 diagram in section
