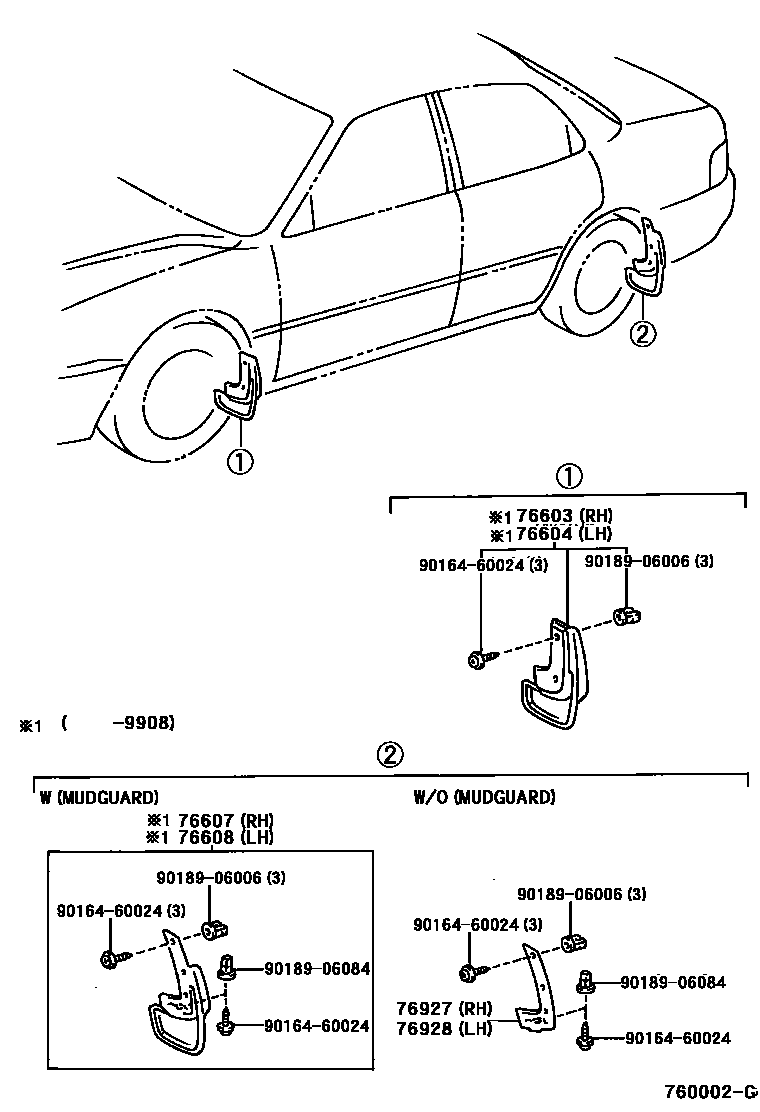

MUDGUARD & SPOILER

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-A9010iMCV20,SXV20..NAP199607-199908

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-A9010iMCV20,SXV20..NAP199607-199908

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-A9010iMCV20,SXV20..NAP199607-199908

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-A9010iMCV20,SXV20..NAP199607-199908

76927PROTECTER, REAR MUDGUARD, RH

main76927-AA010iMCV20,SXV20..NAP199607

76928PROTECTER, REAR MUDGUARD, LH

main76928-AA010iMCV20,SXV20..NAP199607

9016460024

main90164-60024

9018906006

main90189-06006

9018906084

main90189-06084

9 parts on this diagram · 1 diagram in section
