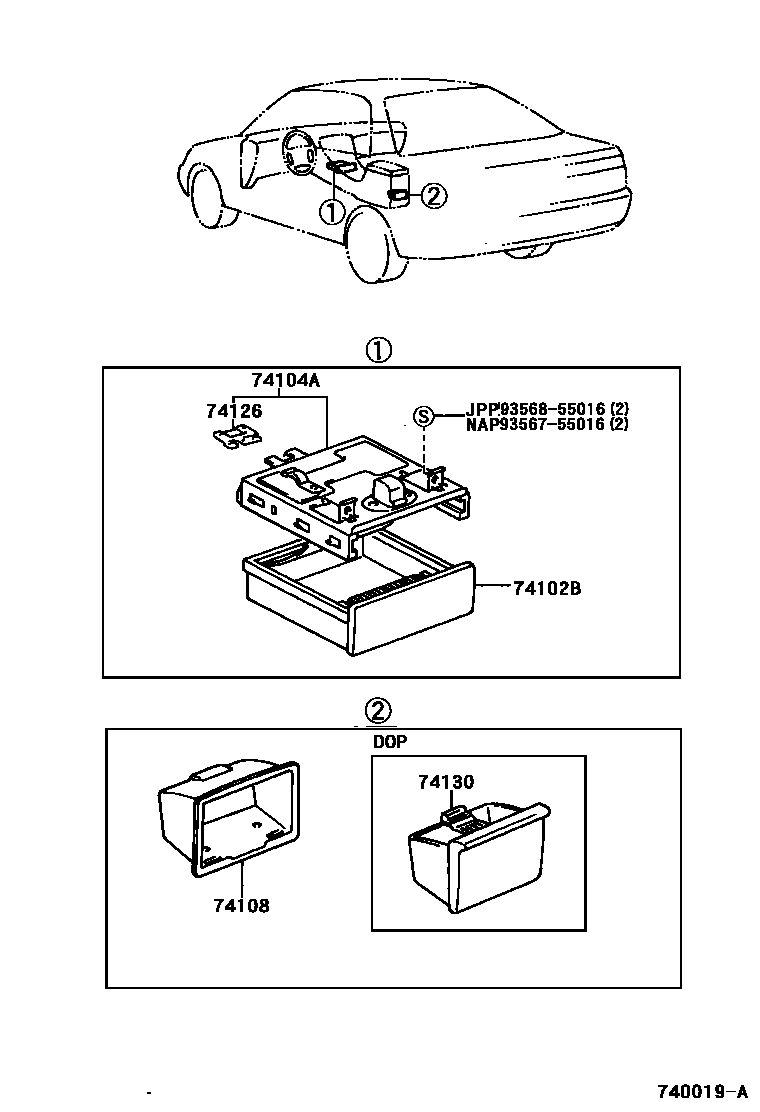

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-33060iMCV20,SXV20..NAP..XLE199908

main74102-AA010iMCV20,SXV20..NAP199607-199908

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-33040iMCV20,SXV20..NAP..XLE199908

main74104-AA010iMCV20,SXV20..NAP..(CE,LE)199908

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

main74108-32010iMCV20,SXV20..NAP199607

74126SUPPORT, FRONT ASH RECEPTACLE RET, NO.3

main74126-AA010iMCV20,SXV20..NAP..(CE,LE)200010

74130RECEPTACLE ASSY, REAR ASH

main74109-32040-B1iMCV20,SXV20..NAP199607

BLUISH GRAY,TRIM1#

main74109-32040-E0iMCV20,SXV20..NAP199607

OAK,TRIM4#

main74109-32040-G0iMCV20,SXV20..NAP199607

DK.SAGE,TRIM6#

9356755016

main93567-55016

9356855016

main93568-55016

7 parts on this diagram · 1 diagram in section
