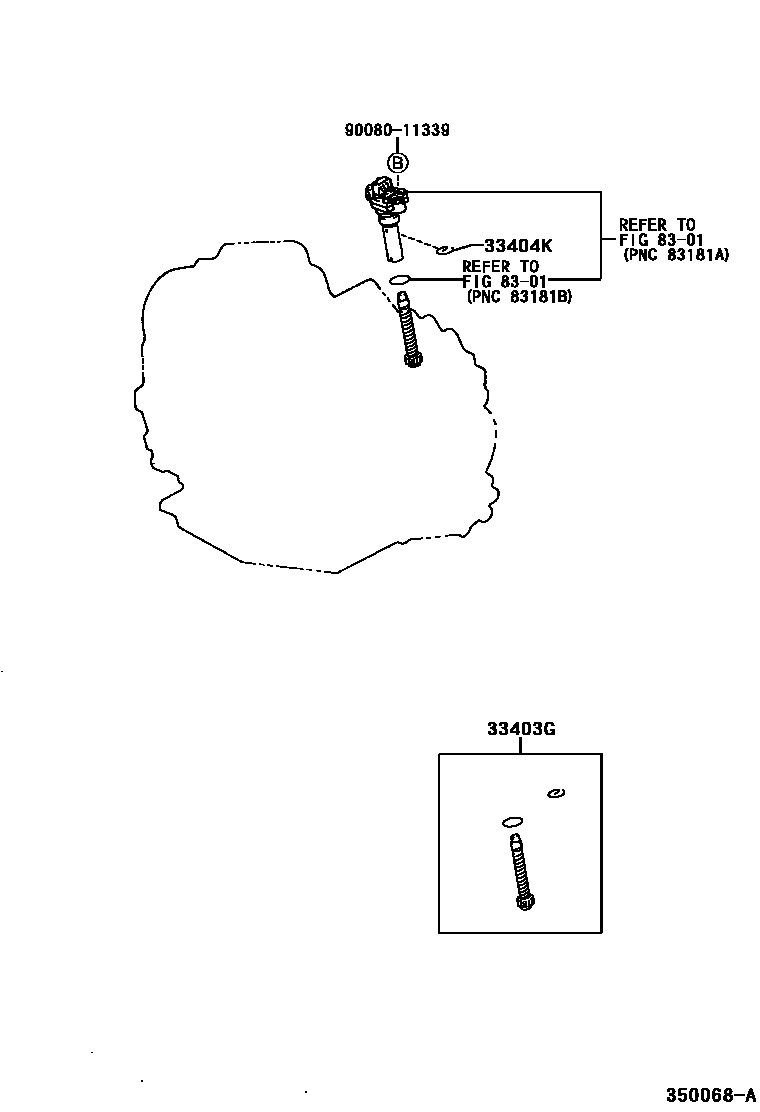

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1A541E 0002 1A140E

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-39275iSXV20..NAP..ATM199607-199908

N=22,MARK 22:27

main33403-39475iMCV20..NAP..ATM199607

N=24,MARK 24:30

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iMCV20,SXV20..NAP..ATM199607

8301

9008011339

main90080-11339

4 parts on this diagram · 2 diagrams in section
