Toyota 281430 — SPEEDOMETER DRIVEN GEAR (MTM)

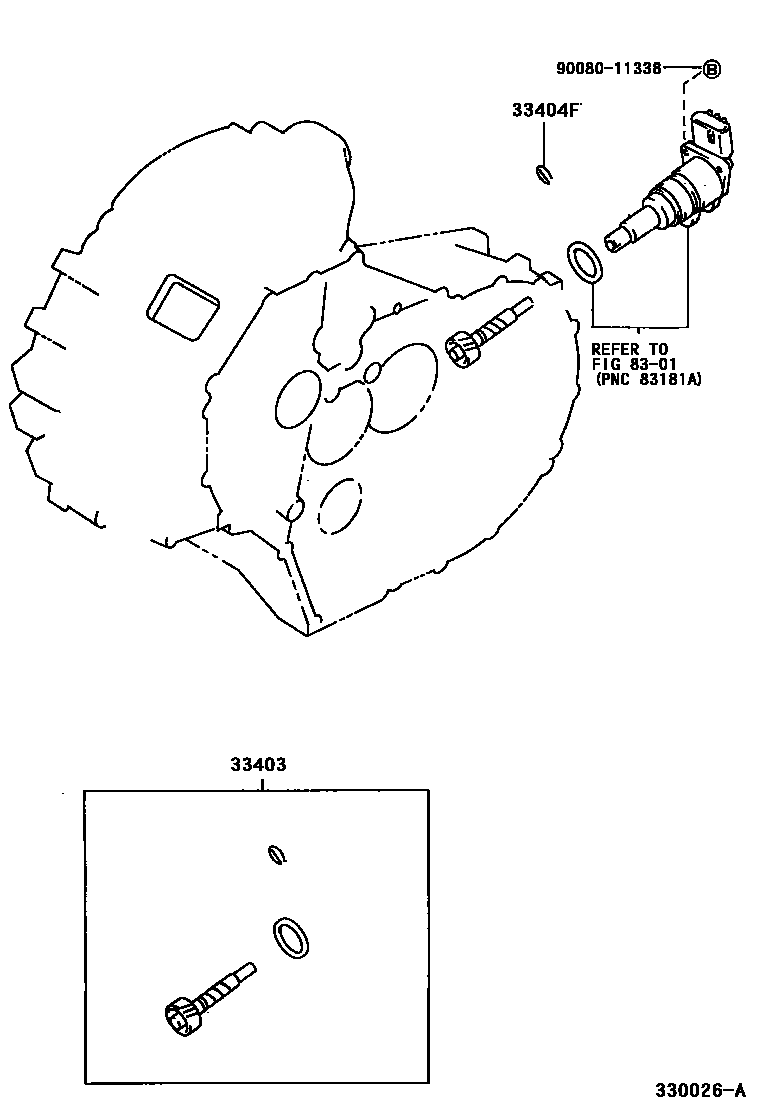

Parts diagram
33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-39256
33403-39265
33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
8301METER
→ Go to FIG 83-01
9008011338
90080-11338

4 parts on this diagram · 2 diagrams in section

SPEEDOMETER DRIVEN GEAR (MTM) for Toyota 281430

This section contains 5 genuine Toyota parts for the SPEEDOMETER DRIVEN GEAR (MTM) system of the Toyota 281430. Key components include: GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM), CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE), METER.
