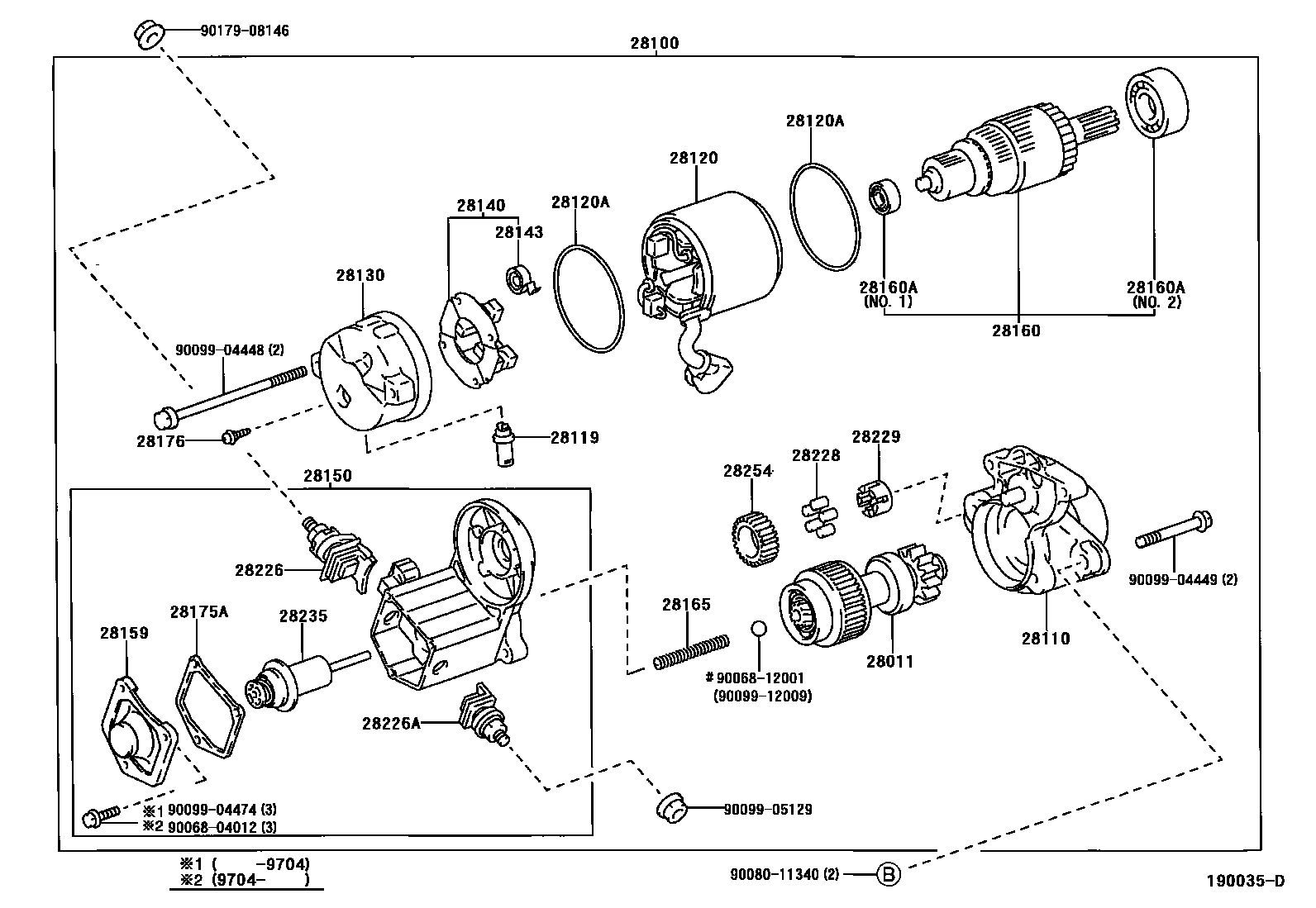

STARTER

0001 112V 1.4KW 0002 112V 1.2KW

28011CLUTCH SUB-ASSY, STARTER

main28011-74070i1MZFE,5SFE..MCV20,SXV20..NAP199607

28100STARTER ASSY

main28100-03080i5SFE..SXV20..NAP..(LE,XLE)..USA199607-199704

12V 1.2KW

main28100-03090i1MZFE,5SFE..MCV20,SXV20..NAP199607-199704

12V 1.4KW

main28100-03100i1MZFE,5SFE..MCV20,SXV20..NAP199704

12V 1.4KW

main28100-03110i5SFE..SXV20..NAP..(LE,XLE)..USA199704-200009

12V 1.2KW

28110HOUSING ASSY, STARTER DRIVE

main28110-03010i1MZFE,5SFE..MCV20,SXV20..NAP199607-199704

main28110-03100i1MZFE,5SFE..MCV20,SXV20..NAP199704

28119COVER, STARTER END FRAME

main28199-74110i1MZFE,5SFE..MCV20,SXV20..NAP199607

28120YOKE ASSY, STARTER

main28120-01030i1MZFE,5SFE..MCV20,SXV20..NAP199607

12V 1.4KW

main28120-0W030i5SFE..SXV20..NAP..(LE,XLE)..USA199607-200009

12V 1.2KW

28120ARING, O(FOR STARTER YOKE)

main90068-14001×2i1MZFE,5SFE..MCV20,SXV20..NAP199704

main90099-14064×2i1MZFE,5SFE..MCV20,SXV20..NAP199607-199704

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-03010i1MZFE,5SFE..MCV20,SXV20..NAP199607-199704

12V 1.4KW

main28130-03020i5SFE..SXV20..NAP..(LE,XLE)..USA199607-199704

12V 1.2KW

main28130-03100i1MZFE,5SFE..MCV20,SXV20..NAP199704

12V 1.4KW

main28130-03110i5SFE..SXV20..NAP..(LE,XLE)..USA199704-200009

12V 1.2KW

28140HOLDER ASSY, STARTER BRUSH

main28140-03010i1MZFE,5SFE..MCV20,SXV20..NAP199607

12V 1.4KW

main28140-03020i5SFE..SXV20..NAP..(LE,XLE)..USA199607-200009

12V 1.2KW

28143SPRING, STARTER BRUSH

main28143-76060×4i5SFE..SXV20..NAP..(LE,XLE)..USA199607-200009

12V 1.2KW

main90099-17112×4i1MZFE,5SFE..MCV20,SXV20..NAP199607

12V 1.4KW

28150SWITCH ASSY, MAGNET STARTER

main28150-03080i1MZFE,5SFE..MCV20,SXV20..NAP199607-199704

main28150-03100i1MZFE,5SFE..MCV20,SXV20..NAP199704

28159COVER, STARTER PROTECTOR

main28159-07010i1MZFE,5SFE..MCV20,SXV20..NAP199607

28160ARMATURE ASSY, STARTER

main28160-01020i1MZFE,5SFE..MCV20,SXV20..NAP199607

12V 1.4KW

main28160-0W020i5SFE..SXV20..NAP..(LE,XLE)..USA199607-200009

12V 1.2KW

28160ABEARING, STARTER ARMATURE

main90068-10003i1MZFE,5SFE..MCV20,SXV20..NAP199607

12V 1.4KW,NO.1

main90068-10004i1MZFE,5SFE..MCV20,SXV20..NAP199607

12V 1.4KW,NO.2

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-74070i1MZFE,5SFE..MCV20,SXV20..NAP199607

28175AGASKET, MAGNET SWITCH COVER

main28175-55050i1MZFE,5SFE..MCV20,SXV20..NAP199607

28176SCREW, STARTER

main28176-15090×2i1MZFE,5SFE..MCV20,SXV20..NAP199607-199704

main90068-00007×2i1MZFE,5SFE..MCV20,SXV20..NAP199704

28226STARTER KIT, BATTERY TERMINAL

main28226-55050i1MZFE,5SFE..MCV20,SXV20..NAP199607

main28226-64370i5SFE..SXV20..NAP..(LE,XLE)199911-200009

TAIWAN SPEC

28226ASTARTER KIT, MOTOR TERMINAL

main28226-74070i1MZFE,5SFE..MCV20,SXV20..NAP199607

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040×5i1MZFE,5SFE..MCV20,SXV20..NAP199607

28229RETAINER, STARTER IDLE GEAR

main28229-01020i1MZFE,5SFE..MCV20,SXV20..NAP199704

main28229-03010i1MZFE,5SFE..MCV20,SXV20..NAP199607-199704

28235PLUNGER, MAGNET SWITCH

main28235-03080i1MZFE,5SFE..MCV20,SXV20..NAP199607

28254PINION, STARTER IDLE GEAR

main28254-03010i1MZFE,5SFE..MCV20,SXV20..NAP; 5SFE..SXV20..NAP..(LE,XLE)..USA199607

12V 1.2KW; 12V 1.4KW

9006804012

main90068-04012

9006812001

main90068-12001

9008011340

main90080-11340

9009904448

main90099-04448

9009904449

main90099-04449

9009904474

main90099-04474

9009905129

main90099-05129

9009912009

main90099-12009

9017908146

main90179-08146

31 parts on this diagram · 2 diagrams in section
