VENTILATION HOSE

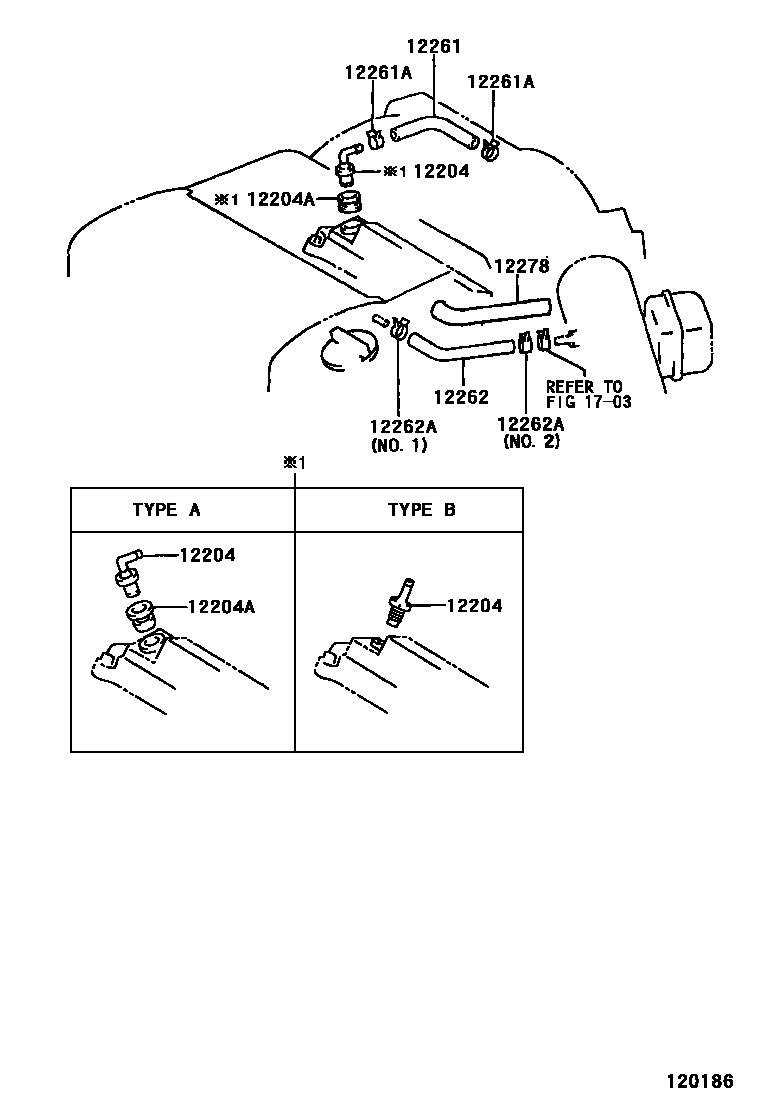

Parts diagram
12204VALVE SUB-ASSY, VENTILATION
main12204-20020i199607
TYPE A:REFER TO ILLUSTRATION
main12204-20040i200101
TYPE B:REFER TO ILLUSTRATION
main12204-74030i199607
12204AGROMMET(FOR VENTILATION SYSTEM)
main90480-18001i199607
12261HOSE, VENTILATION
main12260-03020i199711-199908
sub12260-74070
main12260-03030i199908
sub12260-74090
main12261-03040i199607-199711
sub12261-74130
main12261-20010i199607-199708
sub12261-20011
main12261-20011i199708
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
main90467-14017i199607
main90467-14043i199607-199609
main90467-15016i199609-199711
sub96135-51400
main90467-15016i199711
NO.1
sub96135-51400
main90467-16003i199711
NO.2
sub96134-51500
12262HOSE, VENTILATION, NO.2
main12262-03040i199607
(L)
sub12262-74100
main12262-0A010i199607-199801
sub12262-20010
main12262-0A040i199801
sub12262-20020
main12262-74100i199607
(J)
12262ACLIP(FOR VENTILATION HOSE NO.2)
main90467-14043i199607
main90467-17011i199607-199801
sub96134-51700
main90467-17011i199801
NO.1
sub96134-51700
main90467-19022i199801-199805
NO.2
main96134-41900i199805
NO.2
12278INSULATOR, VENTILATION HOSE HEAT
main12278-0A020i199801
1703

8 parts on this diagram · 3 diagrams in section
