SHORT BLOCK ASSEMBLY

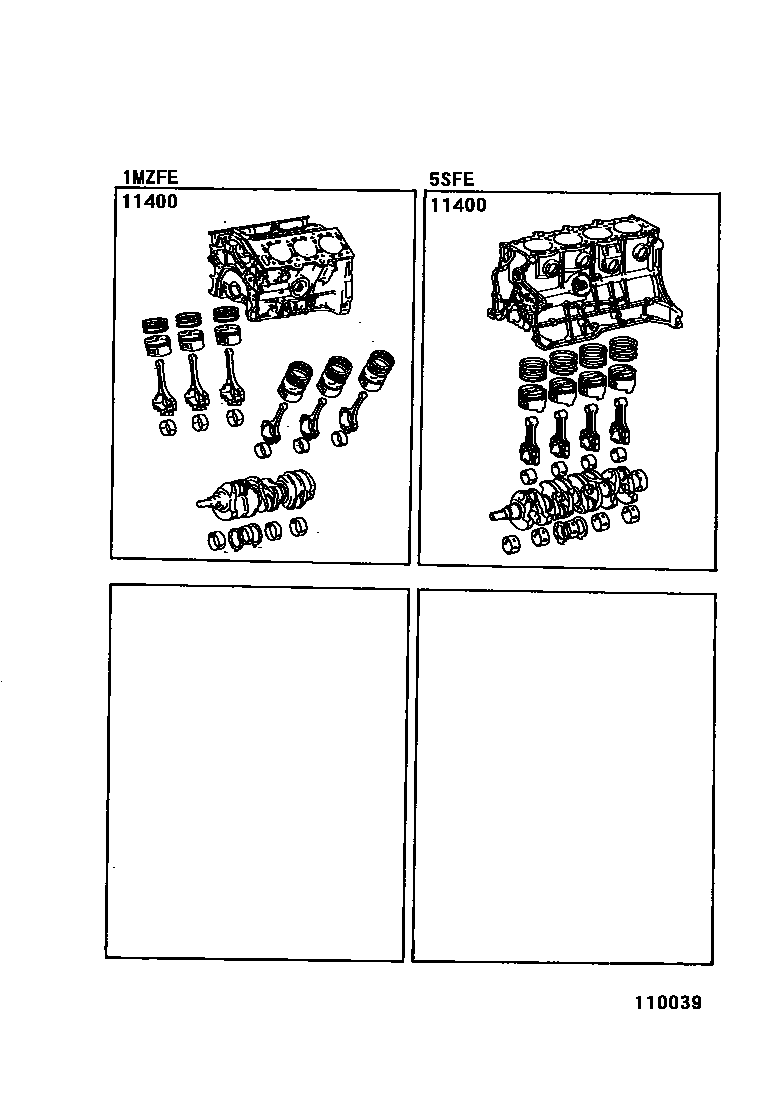

Parts diagram

11400BLOCK ASSY, SHORT

main11400-03021i199607-199708

main11400-03022i199708-199908

main11400-03030i199908-200107

main11400-0A020i199607-199908

(L)

main11400-0A090i199908-200107

(L)

main11400-20010i199607-199710

(J)

main11400-20011i199808-199903

main11400-20012i199903-200107

(J)

1 parts on this diagram · 1 diagram in section
