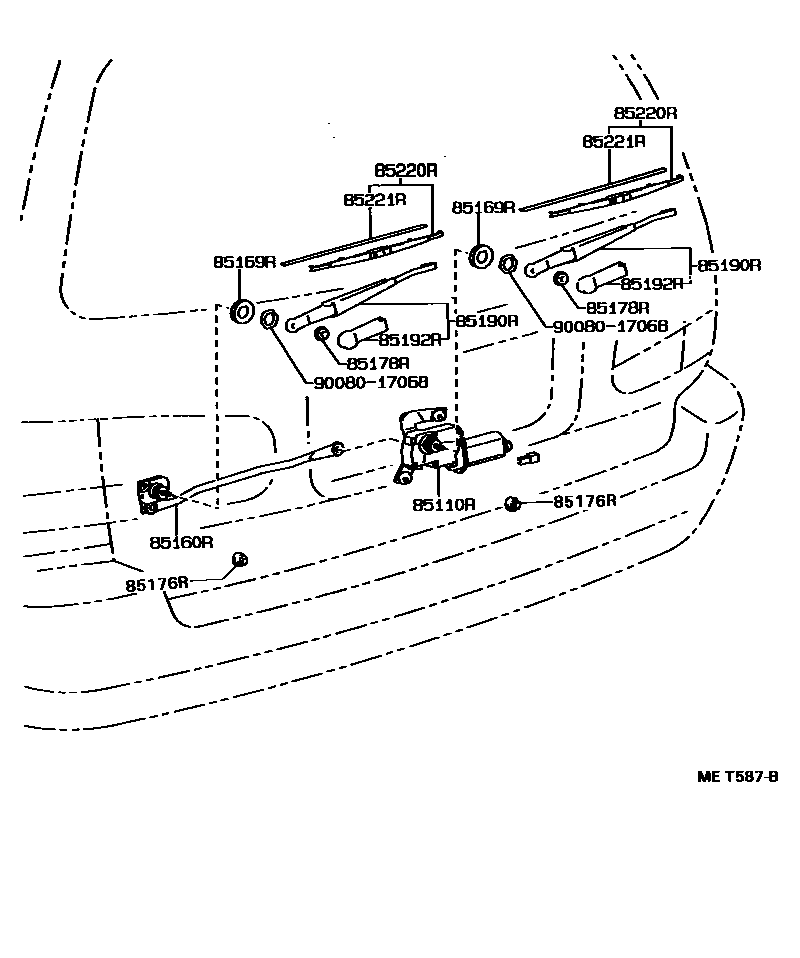

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-06010iMCV10,SXV10,VCV10..NAP..WG199203-199504

sub85130-06011

sub90901-59001

main85130-06011iMCV10,SXV10..NAP..WG199504-199607

85160RLINK ASSY, REAR WIPER

main85170-06010iMCV10,SXV10,VCV10..NAP..WG199203-199607

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85134-06010iMCV10,SXV10,VCV10..NAP..WG199203-199607

85176RCAP, REAR WIPER LINK

main85176-06010iMCV10,SXV10,VCV10..NAP..WG199203-199607

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iMCV10,SXV10,VCV10..NAP..WG199203-199607

85190RARM ASSY, REAR WIPER

main85241-06010iMCV10,SXV10,VCV10..NAP..WG199203-199607

85192RCOVER, REAR WIPER ARM

main85245-06010iMCV10,SXV10,VCV10..NAP..WG199203-199607

85220RBLADE ASSY, REAR WIPER

main85242-06010iMCV10,SXV10,VCV10..NAP..WG199203-199607

85221RBLADE, REAR WIPER

main85243-06010iMCV10,SXV10,VCV10..NAP..WG199203-199607

9008017068

main90080-17068

10 parts on this diagram · 1 diagram in section
